model H-TRAIL

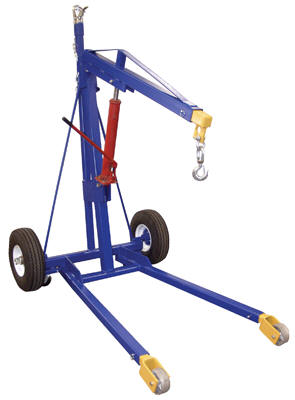

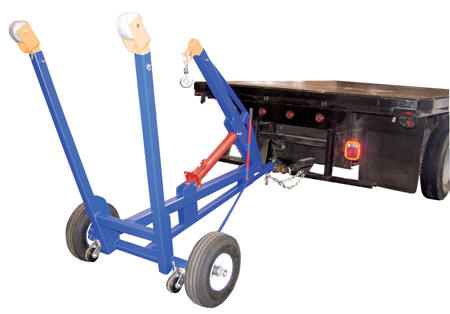

Unique hoist may be towed behind a car or truck to job site and then used for hundreds of applications. Includes a class 2 ball coupler, accommodating a 1-7/8" ball and safety chains for use with most common hitches. Features (2) large 16" diameter pneumatic wheels, (2) swivel casters 4" x 2" in rear, (2) rigid 5" x 2" in front and one swivel clevis hook with safety latch at the end of the boom.  Telescoping lift arm and legs and a removable jack handle standard. Welded steel construction with painted finish. Optional brake light kit with wiring harness available.

Hoist Trailer
Model PDF Up/Down Stroke Arm Length Raised Height Lowered Height Overall Size (WxL) Uniform Capacity (lbs) Wt. (lbs)
H-TRAIL Warranty PDF 30"to91" 53-3/4" 78-3/8" 26-1/4" 47-1/2" x 71" 4,000 529
65-3/4" 84-5/16" 20" 47-1/2" x 81-7/8" 1,150
77-3/4" 90" 13-3/4" 47-1/2" x 93-3/4" 650
H-TRAIL-HTH Warranty PDF Optional Brake Light Kit w/ Wiring Harness 15

Freight Quote


Copyright 2019
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale

H-TRAIL Owners Manual
