WB01372_.gif (406 bytes) Low Headroom Combination Chain Hoist/Trolley - LOW series


model LOW-4P

Use this to gain additional raised hook height. Chain hoist hook travel is 10 feet. Fits on wide flange or S-Type I-beam. Assembly required.



model LOW-1G


model LOW-1P


model LOW-2G


model LOW-6P
Low Headroom Combination Chain Hoist/Trolley
Model PDFs Description Bottom of Roller
To Top of Hook
I-BEAM
Flange
Capacity
(lbs)
Wt.
(lbs)
LOW-1P Warranty PDFPhoto GalleryCompliance Certificate PUSH 11-3/4" 2.00"-6.00" 1,000 45
LOW-2P Warranty PDFPhoto GalleryCompliance Certificate PUSH 13" 2.50"- 8.00" 2,000 63
LOW-4P Warranty PDFPhoto GalleryCompliance Certificate PUSH 16-1/4" 3.50"- 8.00" 4,000 92
LOW-6P Warranty PDFPhoto GalleryCompliance Certificate PUSH 18-1/4" 4.00"-8.00" 6,000 144
LOW-1G Warranty PDFPhoto GalleryCompliance Certificate Geared 11-3/4" 2.00"-6.00" 1,000 49
LOW-2G Warranty PDFPhoto GalleryCompliance Certificate Geared 13" 2.50"- 8.00" 2,000 73
LOW-4G Warranty PDFPhoto GalleryCompliance Certificate Geared 16-1/4" 3.50"- 8.00" 4,000 110
LOW-6G Warranty PDFPhoto GalleryCompliance Certificate Geared 18-1/4" 4.00"-8.00" 6,000 158
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




model HCH-1-10

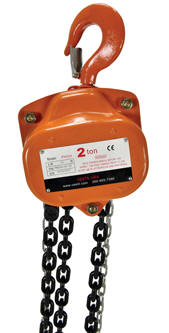

These portable, lightweight hoists are durable and easy to operate.  Compact design and low headroom allow installation in confined areas. Enclosed double ratchet pawls with self adjusting disc brake standard. Designed with a safety factory 4 times rated capacity. Individually tested at 150% rated capacity. Features grade 80 black chain tempered to ISO 3077, galvanized pull chain, hardened two-stage gears and forged steel  upper and lower hooks with safety latches. Constructed of high quality steel components ideal for industrial applications. Meets ANSI B30.16-2003 requirements.



model HCH-1-20


model HCH-3-20


model HCH-4-15


model HCH-6-10


model HCH-6-15


model HCH-6-20


model HCH-10-10


model HCH-10-15


model HCH-10-20
Hand Chain Hoists
Model PDFs Capacity
(lbs)
Lift
(Feet)
Headroom
(Inches)
Wt.
(lbs)
HCH-1-10 Warranty PDFPhoto GalleryCompliance Certificate 1,000 10 11 24
HCH-1-15 Warranty PDFPhoto GalleryCompliance Certificate 1,000 15 11 28
HCH-1-20 Warranty PDFPhoto GalleryCompliance Certificate 1,000 20 11 32
HCH-2-10 Warranty PDFPhoto GalleryCompliance Certificate 2,000 10 12 26
HCH-2-15 Warranty PDFPhoto GalleryCompliance Certificate 2,000 15 12 32
HCH-2-20 Warranty PDFPhoto GalleryCompliance Certificate 2,000 20 12 37
HCH-3-10 Warranty PDFPhoto GalleryCompliance Certificate 3,000 10 15 43
HCH-3-15 Warranty PDFPhoto GalleryCompliance Certificate 3,000 15 15 49
HCH-3-20 Warranty PDFPhoto GalleryCompliance Certificate 3,000 20 15 99
HCH-4-10 Warranty PDFPhoto GalleryCompliance Certificate 4,000 10 17-1/2 48
HCH-4-15 Warranty PDFPhoto GalleryCompliance Certificate 4,000 15 17-1/2 54
HCH-4-20 Warranty PDFPhoto GalleryCompliance Certificate 4,000 20 17-1/2 117
HCH-6-10 Warranty PDFPhoto GalleryCompliance Certificate 6,000 10 19 59
HCH-6-15 Warranty PDFPhoto GalleryCompliance Certificate 6,000 15 19 64
HCH-6-20 Warranty PDFPhoto GalleryCompliance Certificate 6,000 20 19 132
HCH-10-10 Warranty PDFPhoto GalleryCompliance Certificate 10,000 10 21 111
HCH-10-15 Warranty PDFPhoto GalleryCompliance Certificate 10,000 15 21 117
HCH-10-20 Warranty PDFPhoto GalleryCompliance Certificate 10,000 20 21 176
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

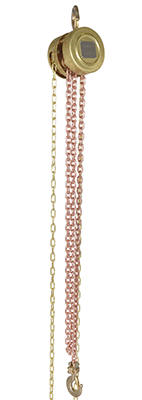

Non-Sparking brass construction. Brake engages automatically as soon as the hand chain stops moving. Forged load hooks. Low gear ratio reduced effort required for lifting. Satisfies relevant ANSI B 30.16-2003 requirements

[Prop 65 Warning]

Non-Sparking Chain Hoists
Model PDFs Capacity
(lbs)
Lift
(Feet)
Headroom
(Inches)
Wt.
(lbs)
HCH-NS-1-10 Warranty PDFCompliance Certificate 1,000 10 14 35
HCH-NS-2-10 Warranty PDFCompliance Certificate 2,000 10 14 47
  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate


WB01372_.gif (406 bytes) Professional Hand Chain Hoists - PHCH series



model PHCH-4-10

These lightweight hoists are durable and easy to operate. Compact design and low headroom allow installation in confined areas. Heat-treated spur gear efficiently designed to provide smooth load handling and low hand chain pull. Reinforced double pawl brake system and larger diameter pawl springs ensures reliable brake. Designed with a safety factor 4 times the rated capacity.  Individually tested at 150% of the rated capacity. Features lightweight, high strength grade 100 alloy steel load chain 25% stronger than grade 80 chain, galvanized pull chain, and forged steel upper and lower hooks with safety latches. Meets ANSI B30.16-2003 requirements.



model PHCH-2-10



model PHCH-6-15


model PHCH-10-20
Professional Hand Chain Hoists
Model PDFs Capacity
(lbs)
Lift
(Feet)
Headroom
(Inches)
Wt.
(lbs)
PHCH-1-10 Warranty PDFPhoto GalleryCompliance Certificate 1,000 10 11-1/4 27
PHCH-1-15 Warranty PDFPhoto GalleryCompliance Certificate 1,000 15 11-1/4 32
PHCH-1-20 Warranty PDFPhoto GalleryCompliance Certificate 1,000 20 11-1/4 39
PHCH-2-10 Warranty PDFPhoto GalleryCompliance Certificate 2,000 10 12-7/16 34
PHCH-2-15 Warranty PDFPhoto GalleryCompliance Certificate 2,000 15 12-7/16 39
PHCH-2-20 Warranty PDFPhoto GalleryCompliance Certificate 2,000 20 12-7/16 46
PHCH-3-10 Warranty PDFPhoto GalleryCompliance Certificate 3,000 10 13-3/8 39
PHCH-3-15 Warranty PDFPhoto GalleryCompliance Certificate 3,000 15 13-3/8 45
PHCH-3-20 Warranty PDFPhoto GalleryCompliance Certificate 3,000 20 13-3/8 51
PHCH-4-10 Warranty PDFPhoto GalleryCompliance Certificate 4,000 10 15 41
PHCH-4-15 Warranty PDFPhoto GalleryCompliance Certificate 4,000 15 15 48
PHCH-4-20 Warranty PDFPhoto GalleryCompliance Certificate 4,000 20 15 53
PHCH-6-10 Warranty PDFPhoto GalleryCompliance Certificate 6,000 10 18-3/4 56
PHCH-6-15 Warranty PDFPhoto GalleryCompliance Certificate 6,000 15 18-3/4 62
PHCH-6-20 Warranty PDFPhoto GalleryCompliance Certificate 6,000 20 18-3/4 70
PHCH-10-10 Warranty PDFPhoto GalleryCompliance Certificate 10,000 10 23-5/8 111
PHCH-10-15 Warranty PDFPhoto GalleryCompliance Certificate 10,000 15 23-5/8 114
PHCH-10-20 Warranty PDFPhoto GalleryCompliance Certificate 10,000 20 23-5/8 125




model PLH-15-20

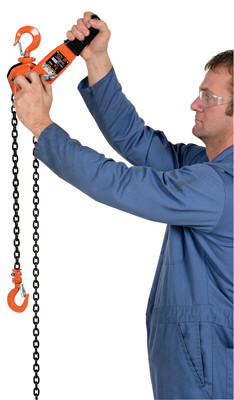

Hoists can be used at any angle and feature a 50% wider ratchet gear, high impact restraint gear case and brake cover. Upper and lower swivel hooks with deformation indicators. Load chain guide system (allows operation in horizontal position). Minimum breaking load is 4 times of rated capacity. Manufactured to ISO-9002 quality standard. Every unit is tested to 150% of rated capacity and is issued with an individual test certificate.

*Units with a capacity under 6,000 lbs. come standard with rugged storage bag.



model BAG-12



model PLH-30-5


model PLH-30-10


model PLH-30-20


model PLH-120-5


model PLH-120-10


model PLH-120-20

Professional Lever Hoists (disc brake)
Model PDFs Capacity
(lbs)
Standard
Lift (Feet)
Min. Distance
Between
Hooks
Handle
Length
Wt.
(lbs)
PLH-15-5 Warranty PDFPhoto GalleryCompliance Certificate 1,500 5 11" 11" 19
PLH-15-10 Warranty PDFPhoto GalleryCompliance Certificate 1,500 10 11" 11" 19
PLH-15-20 Warranty PDFPhoto GalleryCompliance Certificate 1,500 20 11" 11" 26
PLH-20-5 Warranty PDFPhoto GalleryCompliance Certificate 2,000 5 11-7/16" 10" 21
PLH-20-10 Warranty PDFPhoto GalleryCompliance Certificate 2,000 10 11-7/16" 10" 26
PLH-20-20 Warranty PDFPhoto GalleryCompliance Certificate 2,000 20 11-7/16" 10" 38
PLH-30-5 Warranty PDFPhoto GalleryCompliance Certificate 3,000 5 15-1/2" 16" 27
PLH-30-10 Compliance CertificatePhoto GalleryWarranty PDF 3,000 10 15-1/2" 16" 26
PLH-30-20 Warranty PDFPhoto GalleryCompliance Certificate 3,000 20 15-1/2" 16" 43
PLH-60-5 Warranty PDFPhoto GalleryCompliance Certificate 6,000 5 22-7/16" 16" 40
PLH-60-10 Warranty PDFPhoto GalleryCompliance Certificate 6,000 10 22-7/16" 16" 47
PLH-60-20 Warranty PDFPhoto GalleryCompliance Certificate 6,000 20 22-7/16" 16" 61
PLH-120-5 Warranty PDFPhoto GalleryCompliance Certificate 12,000 5 22-7/16" 14" 68
PLH-120-10 Warranty PDFPhoto GalleryCompliance Certificate 12,000 10 22-7/16" 14" 94
PLH-120-20 Warranty PDFPhoto GalleryCompliance Certificate 12,000 20 22-7/16" 14" 98
BAG-12 Addition 12 Pocket Tool Storage Bag




model VKX-05-5

Compact and Lightweight Lever Hoists are ideal for use in confined areas when fastening, fixing
or positioning of light load is required.  High impact aluminum alloy housing with all the main
parts made of heat treated alloy steel (more durable and longer life).  Advanced gear reduction
system (5 gears in the gear box) enables effortless handling and requires low hand-pull force for
highly reliable lifting.  Withstand 1500 cycles with 110% of rated capacity.  Features lightweight high strength grad 100 chain.  Heavy duty storage bag included.


model VKX-10-5

Compact & Lightweight Lever Hoist (disc brake)
Model PDF Capacity
(lbs)
Standard
Lift (Feet)
Min. Distance
Between Hooks
Handle
Length
Wt.
(lbs)
VKX-05-5 Warranty PDFCompliance Certificate 500 5 7-7/8" 5-3/4" 6
VKX-10-5 Warranty PDFCompliance Certificate 1,000 5 9-7/8" 6-1/4" 8
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




model ELH-05-5

Lightweight Mini Lever Hoists are durable and easy to operate. Single-hand "free chaining" is simple, allowing for trouble-free operation in the vertical or horizontal position. All the main parts are made of alloy steel and heat treated (more durable and longer life). Long life brake discs. Short lever handle can rotate in a complete 360 circle. Each hoist is tested to 150% of rated capacity. Features lightweight high strength grade 80 black finish load chain.

*Units with a capacity under 6,000 lbs. come standard with rugged storage bag.



model ELH-05-10

Mighty Mini Lever Hoists

Model PDFs Capacity
(lbs)
Standard
Lift (Feet)
Min. Distance
Between
Hooks
Handle
Length
Wt.
(lbs)
ELH-05-5 Warranty PDFPhoto GalleryCompliance Certificate 500 5 8.25" 6" 4
ELH-05-10 Warranty PDFPhoto GalleryCompliance Certificate 500 10 8.25" 6" 9
ELH-05-15 Warranty PDFCompliance Certificate 500 15 8.25" 6" 13
ELH-05-20 Warranty PDFCompliance Certificate 500 20 8.25" 6" 17
ELH-10-5 Warranty PDFCompliance Certificate 1,000 5 10" 8-1/2" 6
ELH-10-10 Warranty PDFCompliance Certificate 1,000 10 10" 8-1/2" 11
ELH-10-15 Warranty PDFCompliance Certificate 1,000 15 10" 8-1/2" 15
ELH-10-20 Warranty PDFCompliance Certificate 1,000 20 10" 8-1/2" 20
BAG-12 Additional 12 Pocket Tool Storage Bag




model ELH-30-5

Single hand "free chaining" is simple, allowing trouble-free operation in the vertical or horizontal position. Lever handle can rotate in a complete 360 circle. Swivel hooks include deformation indicators. Each hoist is tested to 150% of rated capacity and issued with an individual test certificate.



model ELH-15-5


model ELH-15-10


Economy Lever Hoists (disc brake)

ELH-15-5 Warranty PDFPhoto GalleryCompliance Certificate 1,500 5 12.8" 11" 15
ELH-15-10 Warranty PDFPhoto GalleryCompliance Certificate 1,500 10 12.8" 11" 22
ELH-15-20 Warranty PDFCompliance Certificate 1,500 20 12.8" 11" 23
ELH-20-5 Warranty PDFPhoto GalleryCompliance Certificate 2,000 5 12-3/4" 10" 20
ELH-20-10 Warranty PDFPhoto GalleryCompliance Certificate 2,000 10 12-3/4" 10" 26
ELH-20-20 Warranty PDFPhoto GalleryCompliance Certificate 2,000 20 12-3/4" 10" 32
ELH-30-5 Warranty PDFPhoto GalleryCompliance Certificate 3,000 5 15" 16" 28
ELH-30-10 Warranty PDFPhoto GalleryCompliance Certificate 3,000 10 15" 16" 34
ELH-30-20 Warranty PDFPhoto GalleryCompliance Certificate 3,000 20 15" 16" 45
ELH-60-5 Warranty PDFPhoto GalleryCompliance Certificate 6,000 5 19" 16" 46
ELH-60-10 Warranty PDFPhoto GalleryCompliance Certificate 6,000 10 19" 16" 50
ELH-60-20 Warranty PDFPhoto GalleryCompliance Certificate 6,000 20 19" 16" 65
ELH-120-5 Warranty PDFPhoto GalleryCompliance Certificate 12,000 5 24-7/16" 14" 70
ELH-120-10 Warranty PDFPhoto GalleryCompliance Certificate 12,000 10 24-7/16" 14" 101
ELH-120-20 Warranty PDFPhoto GalleryCompliance Certificate 12,000 20 24-7/16" 14" 107
BAG-12 Additional 12 Pocket Tool Storage Bag
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
