Powered Hoists  |  Manual Hoists   |  Trollies

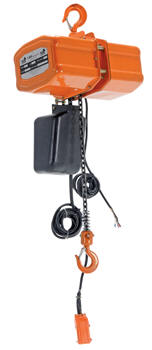

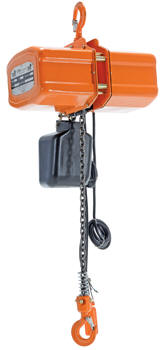

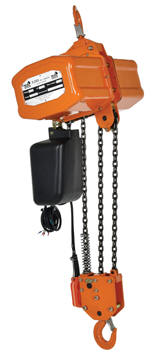

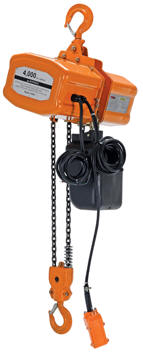

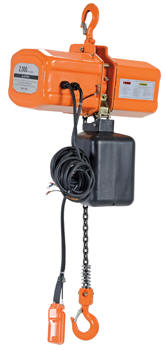

WB01372_.gif (406 bytes) Economy Chain Hoist with Chain Container



model H-1000-1


model H-1000-3

This compact hoist features a high efficiency motor with convenient 2H4V push-button operation. Single or three phase power available. Unit is dust and water resistant, load limit fitted, and features a 4:1 safety factor. Chain container included.



model H-2000-3


model H-4000-1


model H-6000-3


model H-10000-1
Economy Chain Hoist with Chain Container
Model PDF Capacity
(lbs)
Feet Per
Minute
Head
Room
Lift
(Feet)
Power Wt
(lbs)
H-1000-1 Warranty PDFPhoto GalleryCompliance Certificate 1,000 17.0 21-7/16" 15 1 Phase 182
H-2000-1 Warranty PDFPhoto GalleryCompliance Certificate 2,000 17.0 22-13/16" 15 1 Phase 194
H-4000-1 Warranty PDFPhoto GalleryCompliance Certificate 4,000 8.5 21-7/16" 15 1 Phase 205
H-6000-1 Warranty PDFPhoto GalleryCompliance Certificate 6,000 5.5 29-1/8" 15 1 Phase 215
H-10000-1 Warranty PDFPhoto GalleryCompliance Certificate 10,000 3.5 31-1/8" 15 1 Phase 342
H-1000-3 Warranty PDFPhoto GalleryCompliance Certificate 1,000 20.5 21-7/16" 15 3 Phase 185
H-2000-3 Warranty PDFPhoto GalleryCompliance Certificate 2,000 17.0 22-13/16" 15 3 Phase 189
H-4000-3 Warranty PDFPhoto GalleryCompliance Certificate 4,000 16.0 21-7/16" 15 3 Phase 198
H-6000-3 Warranty PDFPhoto GalleryCompliance Certificate 6,000 6.8 29-1/8" 15 3 Phase 215
H-10000-3 Warranty PDFPhoto GalleryCompliance Certificate 10,000 3.25 31-1/8" 15 3 Phase 342
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




Ruggedly built with power to handle most industrial lifting applications.  Includes push-button hand pendant with raise and lower functions on a 6' cord. Single and three phase AC power available. Optional Chain Container stores surplus chain overhead to keep from interfering with operation. Additional lifting heights and speeds available, contact factory. Single Phase units can be configured for 115 or 230 Volts. Contact factory for assistance.

Electric Chain Hoists
Model PDFs Standard
Lift (Ft.)
Feet Per
Minute
Head
Room
Capacity
(lbs.)
Wt.
(lbs)
ECH-03 Warranty PDFPhoto GalleryCompliance Certificate 10' 16 11-1/16" 300 26
ECH-06 Warranty PDFPhoto GalleryCompliance Certificate 10' 8 11-1/16" 600 28
ECH-10-1PH Warranty PDFPhoto GalleryCompliance Certificate 10' 15 14" 1,000 105
ECH-20-1PH Warranty PDFPhoto GalleryCompliance Certificate 10' 14 16" 2,000 122
ECH-40-1PH Warranty PDFPhoto GalleryCompliance Certificate 10' 7 22-1/2" 4,000 152
ECH-60-1PH Warranty PDFPhoto GalleryCompliance Certificate 10' 3.5 29-1/2" 6,000 207
ECH-10-3PH Warranty PDFPhoto GalleryCompliance Certificate 10' 15 14" 1,000 106
ECH-20-3PH Warranty PDFPhoto GalleryCompliance Certificate 10' 14 16" 2,000 122
ECH-40-3PH Warranty PDFPhoto GalleryCompliance Certificate 10' 14 22" 4,000 152
ECH-60-3PH Warranty PDFPhoto GalleryCompliance Certificate 10' 17 26" 6,000 269
ECH-80-3PH Warranty PDFPhoto GalleryCompliance Certificate 10' 11 32" 8,000 306
ECH-100-3PH Warranty PDFPhoto GalleryCompliance Certificate 10' 11 32" 10,000 315
ECH-CC Warranty PDFCompliance Certificate Chain Container (For 300 and 600 lb Units Only) 2
ECH-CC-K Warranty PDFCompliance Certificate CHAIN CONTAINER FOR 1,000 TO 4,000 LB UNITS ONLY 5
ECH-CC-6-K Warranty PDFCompliance Certificate CHAIN CONTAINER FOR 6,000 LB UNIT ONLY 6
ECH-CC-810-K Warranty PDFCompliance Certificate CHAIN CONTAINER FOR 8,000 TO 10,000 LB UNITS ONLY 7

WB01372_.gif (406 bytes) Variable Speed Electric Chain Hoists - VS series



VS-ECH-2-1PH


VS-ECH-5-1PH


VS-ECH-10-1PH

Variable Speed Electric Chain Hoist makes it easier and faster to lift your product.  These add exceptional value, since these hoist save on maintenance, repair, and downtime costs over its lifetime.  Standard with push button hand control with up and down controls, and variable speed knob.  Chain container included.

Variable Speed Electric Chain Hoists
Model PDFs Capacity
(lbs)
Variable
Speed
Head
Room
Lift
(Feet)
Voltage Wt.
(lbs)
VS-ECH-2-1PH Warranty PDFPhoto GalleryCompliance Certificate 250 0-49 FPM 18" 13 115 41
VS-ECH-5-1PH Warranty PDFPhoto GalleryCompliance Certificate 500 0-49 FPM 18" 13 220 44
VS-ECH-10-1PH Warranty PDFPhoto GalleryCompliance Certificate 1,000 0-20 FPM 18" 13 220 50
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
WB01372_.gif (406 bytes) Manipulator Style Control Electric Chain Hoist

Features inline hand grip which allows one handed operation and gives the operator a free hand to easily position the load. Rocker switch above hand grip for quick selection between low and high speed control. Adjustable speeds and single phase power. Lightweight and compact die cast aluminum body. Chain container comes standard.

Manipulator Style Control Electric Chain Hoist
Model PDFs Capacity
(lbs)
High Speed
F.P.M.
Low Speed
F.P.M
Head Room Lift
(Feet)
Wt (lbs)
ECH-50M-6-1PH Warranty PDFPhoto GalleryCompliance Certificate 525 44 10 37.8" 6 40
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

This high speed single phase electric chain hoist offers the ability to lift heavy loads with ease and precision. Light, compact and powerful, this hoist can be easily installed, transported and offers high lifting speed. Features include double braking system for added protection, heavy-duty motor for industrial applications, high performance friction clutch to prevent over-winding and corrosion-resistant nickel-plated load chain. Standard with chain container.

High Speed Electric Chain Hoist
Model PDFs Capacity (lbs) Feet Per
Minute
Head Room Lift
(Feet)
Power Wt
(lbs)
ECH-ED-10-1PH Warranty PDFPhoto GalleryCompliance Certificate 1,050 22 20-1/2" 10 1 Phase 46
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




model ACH-50


model ACH-60


model ACH-100

Heavy duty air chain hoist can be used as a workstation hoist or as a production line hoist.  Lightweight, rugged and compact design - for ease of portability - makes this hoist perfect for most air hoist lifting applications. Standard lift is 10 feet assuming 90 PSI air pressure.  Variable flow, two lever pendant for precise load spotting.

Air Chain Hoists
Model PDF's Lift
(feet)
Lifting
(FPM)
Capacity
(lbs.)
Wt.
(lbs)
ACH-25 Warranty PDFPhoto GalleryCompliance Certificate 10 42 250 19
ACH-50 Warranty PDFPhoto GalleryCompliance Certificate 10 29 500 28
ACH-60 Warranty PDFPhoto GalleryCompliance Certificate 10 16 600 34
ACH-100 Warranty PDFPhoto GalleryCompliance Certificate 10 11 1000 34
ACH-CC-C Warranty PDF  Chain Container 2




model ACH-50


model ACH-60


model ACH-100

Heavy duty air chain hoist can be used as a workstation hoist or as a production line hoist.  Lightweight, rugged and compact design - for ease of portability - makes this hoist perfect for most air hoist lifting applications. Standard lift is 10 feet assuming 90 PSI air pressure.  Variable flow, two lever pendant for precise load spotting.

Air Chain Hoists
Model PDF's Lift
(feet)
Lifting
(FPM)
Capacity
(lbs.)
Wt.
(lbs)
ACH-25 Warranty PDFPhoto GalleryCompliance Certificate 10 42 250 19
ACH-50 Warranty PDFPhoto GalleryCompliance Certificate 10 29 500 28
ACH-60 Warranty PDFPhoto GalleryCompliance Certificate 10 16 600 34
ACH-100 Warranty PDFPhoto GalleryCompliance Certificate 10 11 1000 34
ACH-CC-C Warranty PDF  Chain Container 2

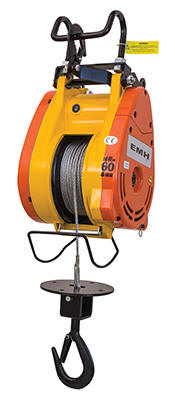

model EMH-3

Lightweight and compact design ideal for a wide range of applications for construction sites, rigging, warehouse, storage area, confined spaces and plumbing. Easily mounts to most scaffolding and beams (secured with latch hook). Robust design, strong steel construction and durable powder coated finish. Dual braking systems provides instant and safe braking. Built in raise/lower limit switch prevents excessive winding. 360 swivel hook with safety latch. Thermal overload on the motor for added safety. Quick disconnect power and hand control cord. Low noise and smooth operation. Cable length is 90 feet.

Electric Mini Hanging Cable Hoists

Model PDFs Lifting
Capacity (lbs)
Cable
Size
Lifting
Speed
(Ft. Per Min.)
Wt.
(lbs)
EMH-3 Warranty PDF 300 3/16" 60' 51
EMH-5 Warranty PDF 500 3/16" 39' 62
EMH-7 Warranty PDF 700 3/16" 39' 66
EMH-10 Warranty PDF 1,000 1/4" 39' 74
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate



model CSW-30

Drill Powered Hoist for powered lifting in remote locations. Hoist can be used in single or double line pull. 230in-lbs. input torque required for maximum lifting capacity.

Drill Powered Hoist
Model PDFs Cable
Size
Uniform
Capacity
(lbs.)
Gear
Ratio
Cable
Length (ft)
Wt.
(lbs)
CSW-30 Photo GalleryCompliance Certificate 3/16" 1,200 103:1 40 12

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
