Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster.  Weight of hopper must be considered when calculating usable capacity. Sets include (2) two rigid, (2) two swivel casters. H-Style Hoppers (H-25 and H-50) only three casters are included (2) two ridge and (1) one swivel in addition to bolt on stabilizing legs for the back. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes. Casters are shipped uninstalled to prevent freight damage.

H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style hopper for 6" casters is 3."

D series hoppers: Maximum caster diameter permitted is 8". Added height to standard D-style hopper for 6" casters is 7.", 8" casters 9."

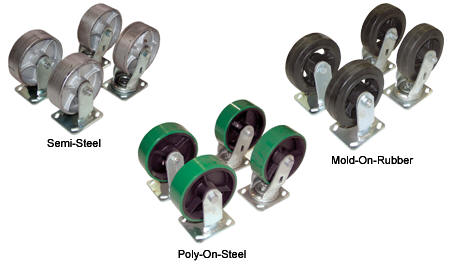

Casters for Self-Dumping Hoppers
Model PDF Caster Size Capacity (lbs.) Caster Description Qty. Per Order Wt. (lbs.)
Caster for H-Style Hoppers, -25 & -50
H-CK3-SC6-2 Warranty PDF 6"x2" 3,600 Semi-Steel 3 27
H-CK3-MR6-2 Warranty PDF 6"x2" 1,800 Mold-On-Rubber 3 25
H-CK3-PU6-2 Warranty PDF 6"x2" 3,600 Poly-On-Steel 3 26
H-CK3-GFN6-2 Warranty PDF 6"x2" 3,600 Glass Filled Nylon 3 17
H-CK3-SC6-2HD Warranty PDF 6"x2" 6,000 Ductile Steel 3 35
 Caster for H-Style Hoppers, -100 & -150
H-CK4-SC6-2 Warranty PDF 6"x2" 4,800 Semi-Steel 4 31
H-CK4-MR6-2 Warranty PDF 6"x2" 2,400 Mold-On-Rubber 4 28
H-CK4-PU6-2 Warranty PDF 6"x2" 4,800 Poly-On-Steel 4 30
H-CK4-GFN6-2 Warranty PDF 6"x2" 4,800 Glass Filled Nylon 4 18
H-CK4-SC6-2HD Warranty PDF 6"x2" 8,000 Ductile Steel 4 42
Caster for D-Style Hoppers
D-CK4-SC6-2 Warranty PDF 6"x2" 4,800 Semi-Steel 4 32
D-CK4-SC8-2 Warranty PDF 8"x2" 4,800 Semi-Steel 4 42
D-CK4-MR6-2 Warranty PDF 6"x2" 2,400 Mold-On-Rubber 4 29
D-CK4-MR8-2 Warranty PDF 8"x2" 2,400 Mold-On-Rubber 4 37
D-CK4-PU6-2 Warranty PDF 6"x2" 4,800 Poly-On-Steel 4 31
D-CK4-PU8-2 Warranty PDF 8"x2" 5,000 Poly-On-Steel 4 42
D-CK4-GFN6-2 Warranty PDF 6"x2" 4,800 Glass Filled Nylon 4 19
D-CK4-GFN8-2 Warranty PDF 8"x2" 5,000 Glass Filled Nylon 4 22
D-CK4-SC6-2HD Warranty PDF 6"x2" 8,000 Ductile Steel 4 43

**Weight of hopper must be considered when calculating usable capacity**

WB01372_.gif (406 bytes) Heavy-Duty Poly Lids for Self-Dumping Hoppers



series PLID-H


series PLID-D



PLID-H-BLUE



PLID-D-BLUE




PLID-D-RED


PLID-H-YELLOW

Keep the contents of hoppers out of sight for a cleaner appearance with our Poly Lids. Constructed from heavy-duty virgin polyethylene material, these lids are lightweight and easy to open. The top of the lid includes a crown for water drainage, and a ribbed design for strength and aesthetics. Ideal for schools, hospitals and warehouses. Factory installed when ordered with hopper. May also be easily field installed. Not compatible with LUG option.



Heavy-Duty Poly Lids for Self-Dumping Hoppers
Model PDFs For Use With
Hopper Size
For Use With
Hopper Style
Number
of Pieces
Wt.
(lbs)
PLID-H-25 Warranty PDF 1/4 H 1 56
PLID-H-25-BU Warranty PDF 1/4 H 1 56
PLID-H-25-YL Warranty PDF 1/4 H 1 56
PLID-H-50* Warranty PDF 1/2 H 1 57
PLID-H-50-BU* Warranty PDF 1/2 H 1 57
PLID-H-50-YL* Warranty PDF 1/2 H 1 57
PLID-H-100* Warranty PDF 1 H 2 56
PLID-H-100-BU* Warranty PDF 1 H 2 56
PLID-H-100-YL* Warranty PDF 1 H 2 56
PLID-H-150* Warranty PDF 1-1/2 H 2 61
PLID-D-25 Warranty PDF 1/4 D 1 56
PLID-D-25-BU Warranty PDF 1/4 D 1 56
PLID-D-25-RD Warranty PDF 1/4 D 1 56
PLID-D-33 Warranty PDF 1/3 D 1 57
PLID-D-33-BU Warranty PDF 1/3 D 1 57
PLID-D-33-RD Warranty PDF 1/3 D 1 57
PLID-D-50 Warranty PDF 1/2 D 1 57
PLID-D-50-BU Warranty PDF 1/2 D 1 57
PLID-D-50-RD Warranty PDF 1/2 D 1 57
PLID-D-75 Warranty PDF 3/4 D 1 58
PLID-D-75-BU Warranty PDF 3/4 D 1 58
PLID-D-100 Warranty PDF 1 D 1 57
PLID-D-100-BU Warranty PDF 1 D 1 57
PLID-D-150 Warranty PDF 1-1/2 D 1 58
PLID-D-200 Warranty PDF 2 D 2 59
PLID-D-250 Warranty PDF 2-1/2 D 2 59
PLID-D-300 Warranty PDF 3 D 2 61

*Works with Portable Hoppers
