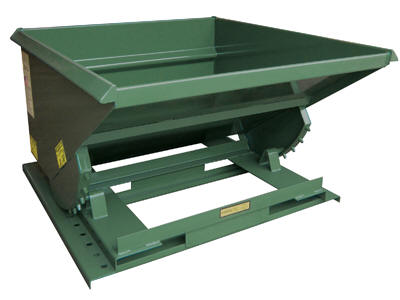

model HOP-200-MD

All welded Self-Dumping Hoppers handle bulk materials and scrap easily. Must transport and dump with a forklift or make the unit mobile with the optional casters. Self dumping hoppers are engineered to dump when the safety latch is tripped and to return to an upright locked position when empty. All units come with safety retaining chain and a trip rope assembly.  The 1/4 to 2 cubic yard hoppers have a formed stackable base (stackable when empty). The 3 to 5 cubic yard hoppers have structural bases with re-enforced rockers for heavy use. Options include: casters, lids (1 to 2 cubic yard), 3-way entry, lifting lugs, and paint colors. Paint finish is vista green. Must be attached to fork truck when dumping.

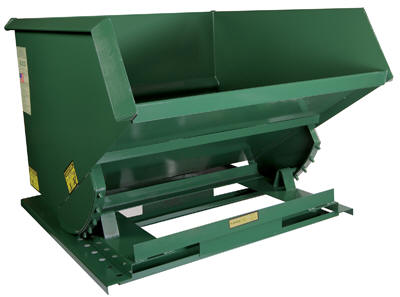

model HOP-150-HD



model HOP-25-HD


model HOP-33-HD

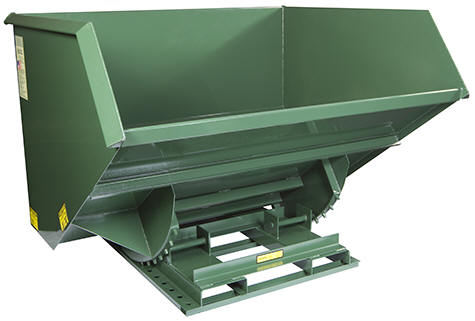

model HOP-400-HD


model HOP-500-HD


Steel Lid Style A

model LID-150-A


Single hinge in the center of the hopper with the back half welded closed


Steel Lid Style C

model LID-150-C


Single hinge in the center, but both front and back lids can be opened.

Steel Self-Dumping Hoppers

Model PDF Volume
Cubic
Yards
Capacity
(lbs)
Overall Size
(WxDxH)
Stackable Gauge
of Steel
Body/Base
Wt.
(lbs)
HOP-100-LD Warranty PDF 1 2,000 41-1/2"x62"x37" Yes 12/8 445
HOP-150-LD Warranty PDF 1-1/2 2,000 59-1/2"x62"x37" Yes 12/8 540
HOP-200-LD Warranty PDF 2 2,000 59-1/2"x64"x46" Yes 12/8 600
HOP-250-LD Warranty PDF 2-1/2 2,000 59-1/2"x64"x51" Yes 12/8 620
HOP-100-MD Warranty PDF 1 4,000 41-1/2"x62"x37" Yes 10/8 485
HOP-150-MD Warranty PDF 1-1/2 4,000 59-1/2"x62"x37" Yes 10/8 630
HOP-200-MD Warranty PDF 2 4,000 59-1/2"x64"x46" Yes 10/8 705
HOP-250-MD Warranty PDF 2-1/2 4,000 59-1/2"x64"x51" Yes 10/8 750
HOP-25-HD Warranty PDF 1/4 4,000 30-3/4"x49"x26-1/2" Yes 7/8 375
HOP-33-HD Warranty PDF 1/3 4,000 30-3/4"x46"x31-1/2" Yes 7/8 405
HOP-50-HD Warranty PDF 1/2 4,000 41-1/2"x48-1/2"x31-1/2" Yes 7/8 470
HOP-75-HD Warranty PDF 3/4 5,000 41-1/2"x56-3/4"x35-1/2" Yes 7/.220 575
HOP-100-HD Warranty PDF 1 6,000 41-1/2"x62"x37" Yes 7/.220 625
HOP-150-HD Warranty PDF 1-1/2 6,000 59-1/2"x62"x37" Yes 7/.220 785
HOP-200-HD Warranty PDF 2 6,000 59-1/2"x64"x46" Yes 7/.220 880
HOP-250-HD Warranty PDF 2 1/2 6,000 59-1/2"x64"x51" Yes 7/.220 930
HOP-300-HD*** Warranty PDF 3 6,000 65-1/2"x71-1/2"x59-1/2" No 7/ 1/4" 1250
HOP-400-HD*** Warranty PDF 4 6,000 85-1/2"x71-1/2"x59-1/2" No 7/ 1/4" 1385
HOP-500-HD*** Warranty PDF 5 6,000 105-1/2"x71-1/2"x59-1/2" No 7/ 1/4" 1560
** Special Caster Base for Caster option, HOP-CASTER-BASE (for HOP-300, 400, 500 HD series only)
* Unit is NOT stackable at any time, empty nor full.
Specialty Steel Lids for Hoppers (Series HOP only)
Model Hopper
Cubic Yards
Specify Lid Style
(add suffix to model #)
Wt.
(lbs)
LID-100-A 1 Style A Lid 65
LID-100-C 1 Style C Lid 65
LID-150-A 1-1/2 Style A Lid 92
LID-150-C 1-1/2 Style C Lid 92
LID-200-A 2 Style A Lid 106
LID-200-C 2 Style C Lid 106
LID-250-A 2-1/2 Style A Lid 106
