Spring Driven Low Pressure Hose Reels

model VHR-17-46

model VHR-20-44

model VHR-35-58

model VHR-50-56

Keep air hoses off the floor and out of the way. Minimize labor, save storage space, protect against trip hazards and damaged hoses. For use with air and water only. Solid steel construction with heavy duty brackets to resist hose pull. All reels have a full shaft and swivel to assure maximum product delivery. Maximum temperature is 150F. Maximum pressure is 300 psi / 21 bar. Includes self retracting hose.


Spring Driven Low Pressure Hoses

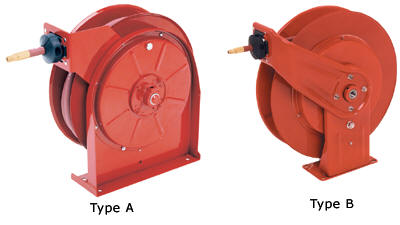

Model Type Overall Size
Hose Dia.
of Hose
VHR-20-44 A 6-1/4"x15"x15" 1/4" 20 Feet 19
VHR-35-44 A 5"x12"x13" 1/4" 35 Feet 31
VHR-17-46 A 6"x15"x15-1/2" 3/8" 17 Feet 31
VHR-25-46 A 6-1/2"x14-3/4"x15-1/2" 3/8" 25 Feet 26
VHR-50-56 A 7-1/2"x19-1/2"x20" 3/8" 50 Feet 43
VHR-35-58 A 8"x19-1/4"x18" 1/2" 35 Feet 43
VHR-50-78 B 8-1/4"x21"x19-3/4" 1/2" 50 Feet 55

model ECR-45-D

Help eliminate the danger of tangled electrical cords with these Electric Cord Reels. The compact design is spring retractable and engineered for industrial use. Complete with 4 foot pigtail and three prong plug.  115V, 60 Hz single phase. Ideal for indoor non-weather tight applications only. UL listed and CSA certified.

Model ECR-45-S comes with a 15 AMP 3 wire single receptacle with clamp type strain relief.

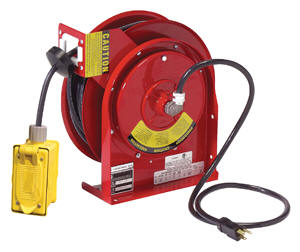

Model ECR-45-D features a duplex outlet box and ground fault circuit interrupter.  Comes with a 20 AMP 3 wire double receptacle.
Model ECR-50 has an incandescent lamp and single receptacle. Head has tool tap, push through winch and metal grounded guard. 75 watt bulb maximum. Bulb not included.  See other work lights.

model ECR-45-S
model ECR-50
Electric Hoses
Model Description Cord
ECR-45-S Single Receptacle 45 Ft. 12 23
ECR-45-D Double Receptacle 45 Ft. 12 30
ECR-50 Lamp with Receptacle 50 Ft. 16 24
WB01372_.gif (406 bytes) Standard Spring Driven Low Pressure Hose Reels

model SHR-P-38-50

Keep air hoses off the floor and out of the way. Minimize labor, save storage space, protect against trip hazards and damaged hoses. Maximum pressure is 300 psi / 20 bar. Includes self retracting hose.

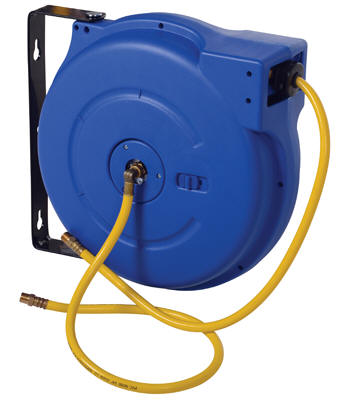

Model SHR-P-38-50 is constructed of durable, high quality impact resistant polypropylene. A positive latching mechanism automatically locks hose at a desired length. A safety lock prevents the hose from moving in either direction. An integral wall/overhead swivel bracket and 36" lead hose are included.  Maximum temperature is 140F.

Retractable Extension Cord Reels
Model PDF's Description Overall Size (WxDxH) Inside Hose Diameter Length Of Hose Wt.
SHR-P-38-50   Plastic 8-3/4"x17-1/2"x17-1/4" 3/8" 50' 15

Click the above for Approval Drawing PDF.  Click the for Parts List PDF.  (If you have trouble viewing the PDF in the browser, try "right clicking" the icon and clicking "save target as" to save the PDF to your preferred location.)


model REEL-16L

Help eliminate twists and tangles of hoses, save storage space, protect against trip hazards and damaged hoses with this economical Air Hose Reel.

Arm Style reel is constructed of all steel. Quick and simple manual hand crank and spring loaded axle helps reel in up to 100 feet of 3/8" hose or 50 feet of 1/2" hose. Valve assembly is rated at 100 psi and 25 cfm. Unit can be mounted both vertically or horizontally. The wall bracket measures 7"W x 3"H. Hose is not included.

Air Hose Reels
Model PDFs Description Overall Size
REEL-16L Warranty PDF Arm Style 14"x17-3/4"x18" 5" 14
