Deluxe Aluminum Hand Trucks


model ALUM-P

model ALUM-P-HR

model ALUM-H

model ALUM-LOOP-H

model ALUM-PIN

model ALUM-LOOP-H-HR

model ALUM-LOOP (shown with optional ALUM-SG)

model ALUM-CONV

model ALUM-CONV-B

model ALUM-3-CONV

Maximize control for different types of loads.  These hand trucks can transport boxes wherever they are needed.  Transport loads smoothly and evenly over rough or uneven floors.  10” diameter pneumatic tires are standard on all hand trucks, except for ALUM-H, ALUM-PIN, and ALUM-3-CONV, which are 10 ½” tires. 10” diameter industrial solid rubber tires are also available.  The convertible hand trucks also have 5” x 1 ¼” poly-on-steel swivel casters at the bottom of the handle. ALUM-SG (stair guides) are not compatible with the CONV models. Assembly required.

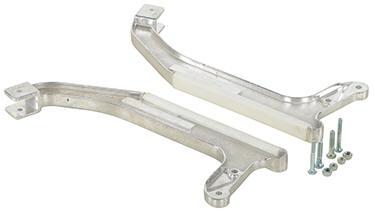

OPTIONAL ALUMINUM STAIR GUIDES
model ALUM-SG





Deluxe Aluminum Hand Trucks
Model PDF Description Nose Plate (WxD) Capacity (lbs) Overall Size (WxDxH) Wt. (lbs)
ALUM-P Warranty PDFPhoto GalleryCompliance Certificate "P" Handle 18"x7-1/2"/ 12" x 27" 500/200 20-1/2"x 18-1/2"x 52-1/2" 28
ALUM-P-HR* Warranty PDFPhoto GalleryCompliance Certificate "P" Handle 18" x 7-1/2" / 12" x 27" 500/200 18-1/2"x18-1/2" x 52-1/2" 38
ALUM-H Warranty PDFPhoto GalleryCompliance Certificate Dual Handle 18"x 7-1/2" 500 20-1/4"x19"x 51-1/4" 25
ALUM-H-HR* Warranty PDFPhoto GalleryCompliance Certificate Dual Handle 18"x 7-1/2" 500 19-1/2"x19"x51-1/4" 34
ALUM-LOOP Warranty PDFPhoto GalleryCompliance Certificate Single Loop Handle 14"x 7-1/4" 500 20"x18 1/2"x49 1/4" 23
ALUM-LOOP-H Warranty PDFPhoto GalleryCompliance Certificate Double Loop Handle 14"x 7-1/4" 500 20"x18-1/2"x 62-13/16" 24
ALUM-LOOP-H-HR* Warranty PDFPhoto GalleryCompliance Certificate Double Loop Handle 14"x 7-1/4" 500 20"x18-1/2"x62 13/16" 38
ALUM-LOOP-HR* Warranty PDFPhoto GalleryCompliance Certificate Single Loop Handle 14"x7-1/4" 500 20"x18 1/2"x 49-1/4" 34
ALUM-PIN Warranty PDFPhoto GalleryCompliance Certificate Pin Handle 17-3/4"x 7-1/2" 500 20-3/4"x18-1/4"x53" 25
ALUM-SG Aluminum Stair Guides Option 7
ALUM-CONV Warranty PDFPhoto GalleryCompliance Certificate Convertible 2 in 1 18"x 7-1/4" 500
650
20 1/2"x18 7/8"x51-1/2"
20-1/2"x 46-1/2"x 40 1/2"
42
ALUM-3-CONV Warranty PDFPhoto GalleryCompliance Certificate Convertible-3 in 1 18"x7-1/2" 500
750
20-1/2"x18-7/8"x51-1/2"
20-1/2"x57"x42"
42
ALUM-CONV-B Warranty PDFPhoto GalleryCompliance Certificate Convertible- 2 in 1 18"x 7-1/4" 500
650
20 1/2"x18-7/8"x 62- 1/4"
20-1/2"x 56-1/2"x 44-7/8"
42

(*) –HR has 10” diameter hard rubber wheels

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
