  • Scratch and Rust Resistance
  • Surface Features Powder Coat Finish
  • Structural Uniformity and Integrity

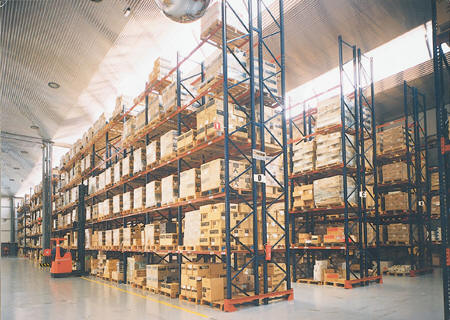

Pallet Racking solves the storage and retrieval needs faced by most industries today.  Adaptability to specific layout installations is just one added feature. Units are sold 'Each'.




Pallet Racking

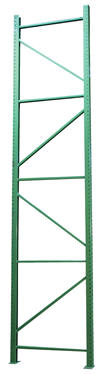

Frame

Model PDF Frame
Height
Frame
Depth
Capacity Per Each Upright
(lbs)
Wt.
(lbs)
PRTD-10-42-19 Warranty PDFCompliance Certificate 120" 42" 19,380 139
PRTD-10-42-24 Warranty PDFPhoto GalleryCompliance Certificate 120" 42" 24,000 171
PRTD-12-42-19 Warranty PDFCompliance Certificate 144" 42" 19,380 162
PRTD-12-42-24 Warranty PDFPhoto GalleryCompliance Certificate 144" 42" 24,000 173
PRTD-14-42-19 Warranty PDFCompliance Certificate 168" 42" 19,380 187
PRTD-14-42-24 Warranty PDFPhoto GalleryCompliance Certificate 168" 42" 24,000 183
PRTD-16-42-19 Warranty PDFCompliance Certificate 192" 42" 19,380 226
PRTD-16-42-24 Warranty PDFPhoto GalleryCompliance Certificate 192" 42" 24,000 180

Step Beam

Model PDF Beam
Height
Beam
Length
Capacity Per
Pair (lbs)
Wt.
(lbs)
BEAM-S-850 Warranty PDFPhoto GalleryCompliance Certificate 6" 96" 5,000 66
BEAM-S-870 Warranty PDFPhoto GalleryCompliance Certificate 6" 96" 7,000 70
BEAM-S-960 Warranty PDFPhoto GalleryCompliance Certificate 6" 108" 6,000 78
BEAM-S-970 Warranty PDFPhoto GalleryCompliance Certificate 6" 108" 7,000 82
BEAM-S-1050 Warranty PDFPhoto GalleryCompliance Certificate 6" 120" 5,000 75
BEAM-S-1070 Warranty PDFPhoto GalleryCompliance Certificate 6" 120" 7,000  82
BEAM-S-1250 Photo GalleryCompliance Certificate  6" 144" 5,000 105
BEAM-S-1260 Photo GalleryCompliance Certificate  6" 144" 6,000 115

Frame Spacer - Separates Back To Back Frames

Model PDF Frame Spacer Wt.
(lbs)
FSR-6 Warranty PDFPhoto GalleryCompliance Certificate 6" 2
FSR-12 Warranty PDFPhoto GalleryCompliance Certificate 12" 2

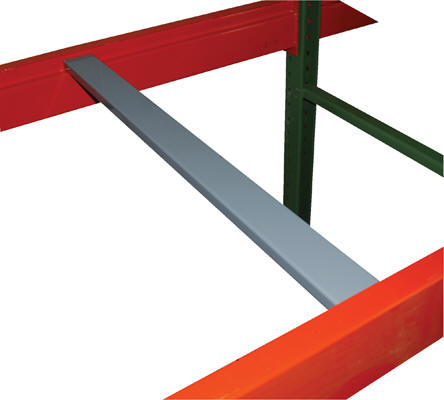

model PSB-42

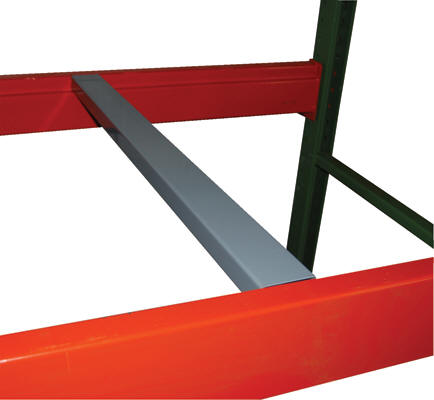

Cross bars provide economical support for pallets between rack cross beams. The model SSB-42, is 1" high. It is designed to sit flush with the top of the rack step beam. The model PSB-42 is 1" high and is designed to be used with " plywood or particle board so the board will be flush with the top of the beam. The boxed steel bars fit our standard
42" rack. 14 gauge material.


model SSB-42


Pallet Support Bar

Model PDF Width Length Height Wt.
(lbs)
PSB-42 Warranty PDFPhoto GalleryCompliance Certificate 3" 38-1/2" 1" 5
SSB-42 Warranty PDFPhoto GalleryCompliance Certificate 3" 38-1/2" 1-1/2" 5




model WMD-4246

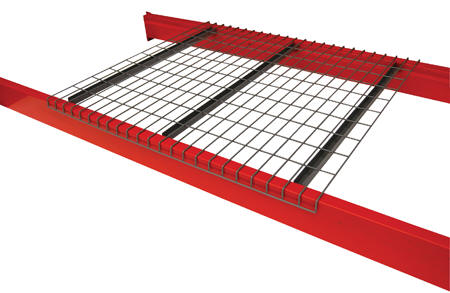

Provide maximum support at minimum cost. The three 13 gauge U channels keep pallet and products from falling thru rack beans. Fits 1" step beam. Uniform load capacity is 2,500 lbs.



model WMD-4252

Pallet Wire Decking

Model PDF Decking
Depth
Decking
Length
(2) Pieces Required
For Beam Length
Wt.
(lbs)
WMD-4246 Warranty PDFPhoto GalleryCompliance Certificate 42" 46" 96" 64
WMD-4252 Warranty PDFPhoto GalleryCompliance Certificate 42" 52" 108" 74
WMD-4258 Warranty PDFPhoto GalleryCompliance Certificate 42" 58" 120" 82

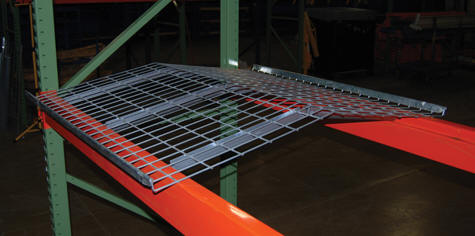

Add convenience, visibility and efficiency to your rack. By sloping the decking you help the user do their job. The 6 gauge wire mesh provide 650 lbs. (uniformly distributed) capacity. Slope is 4" in 21". Designed for our 42" deep x 1" step type pallet rack beam.  Powder coat finish.

Crown Pallet Rack Decking

Model PDF Decking
Depth
Decking
Length
(2) Pieces Required
For Beam Length
Wt.
(lbs)
SWMD-4246 Warranty PDFPhoto GalleryCompliance Certificate 42" 46" 96" 24
SWMD-4252 Warranty PDFPhoto GalleryCompliance Certificate 42" 52" 108" 25
SWMD-4258 Warranty PDFPhoto GalleryCompliance Certificate 47-9/16" 58" 120" 26




model PCH-120

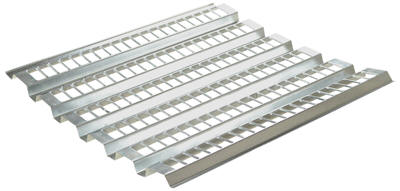

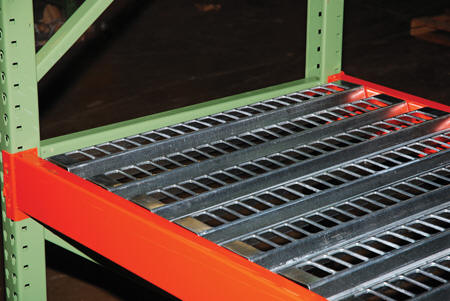

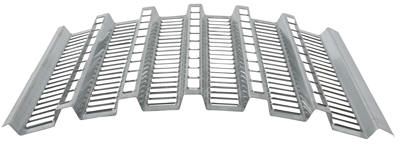

Ideal for storing furniture, carpet, record files or products that require a uniform support.  Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial. Fits 1-1/2." beam offset.  The top hats are 3-1/2 wide with top slotted holes 1-1/4 x 2-1/2 and the valleys are 2-1/2 wide with slotted holes 1 x 3. Custom sizes available, contact factory.



model PCH-96



model PCH-108

Open Area Rack Decking

Model PDF Beam
Length
Frame
Depth
Span Capacity
(lbs)
Wt.
(lbs)
PCH-96 Warranty PDFPhoto GalleryCompliance Certificate 96" 42" 38 1/2" 3,780 62
PCH-108 Warranty PDFPhoto GalleryCompliance Certificate 108" 42" 38 1/2" 3,780 72
PCH-120 Warranty PDFPhoto GalleryCompliance Certificate 120" 42" 38 1/2" 3,780 82

Freight Quote
