model LPC-20


model LPC-40


model LPC-60

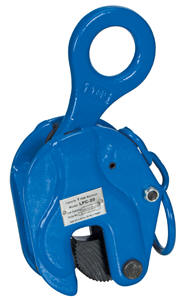

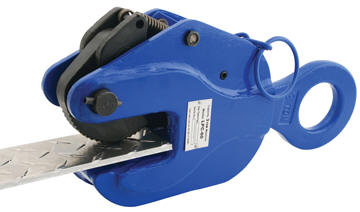

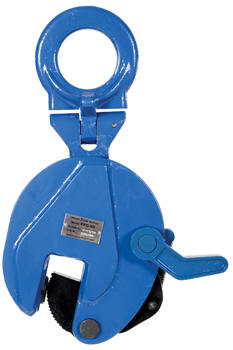

Grips sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear.  Safety factor is 2 to 1. Power coated finish. Designed to meet ASME B30.20 standards. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

Positive Locking Plate Clamps
Model PDF Minimum
Plate
Thickness
Maximum Plate Thickness Working Load Limit
(lbs)
Min. Plate Weight Throat Depth Bale Opening Wt. (lbs.)
LPC-20 Warranty PDFPhoto Gallery 0 0.80" 2,000 400 lbs 2.30" 1.75" 9
LPC-40 Warranty PDFPhoto Gallery 0 1.1875" 4,000 800 lbs 2.95" 2.2" 13
LPC-60 Warranty PDFPhoto Gallery 0 1.5625" 6,000 1200 lbs 3.34" 1.9" 21




model CPC-10


model CPC-20


model CPC-40


model CPC-80

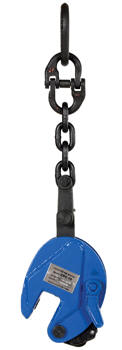

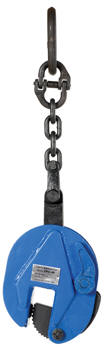

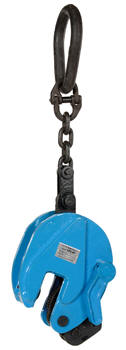

Designed for lifting plate material in a vertical position. Lifting eye includes chain for greater versatility. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20 specifications.  Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time.  Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

Vertical Plate Clamps with Chain
Model PDF Max. Plate
Thickness
Working
Load Limit (lbs)
Min. Plate
Weight
Throat
Depth
Bale
Opening
Wt.
(lbs.)
CPC-10 Warranty PDFPhoto Gallery 0.6" 1,000 200 lbs 1-1/2" 2.25" 6
CPC-20 Warranty PDFPhoto Gallery 0.8" 2,000 400 lbs 3" 3.00" 14
CPC-40 Warranty PDFPhoto Gallery 1" 4,000 800 lbs 3" 3.75" 17
CPC-80 Warranty PDFPhoto Gallery 1.1875" 6,600 1320 lbs 3" 5.25" 33





model EPC-10



model EPC-20



model EPC-40



model EPC-80

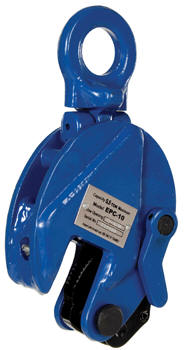

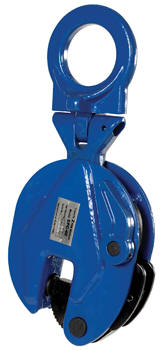

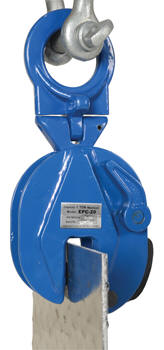

Pivoting bail for easier and more versatile operation. Automatic serrated hardened steel cams and pads.  Drop-forged steel case for maximum strength. Designed to meet ASME B30.20. Warning: Do not exceed the working load limit. Serious bodily injury or property damage may result. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

Vertical Plate Clamps
Model PDF Minimum Plate Thickness Maximum Plate Thickness Working Load Limit (lbs) Min. Plate Weight Throat Depth Bale Opening Wt.(lbs.)
EPC-10 Warranty PDFPhoto Gallery 0 0.59" 1,000 200 lbs 1.6" 1.81" 5
EPC-20 Warranty PDFPhoto Gallery 0 0.78" 2,000 400 lbs 2.9" 2.38" 16
EPC-40 Warranty PDFPhoto Gallery 0 1.00" 4,000 800 lbs 2.9" 2.38" 17
EPC-80 Warranty PDFPhoto Gallery 0 1.19" 6,600 1320 lbs 3.0" 2.38" 32





model HPC-20



model HPC-40



model HPC-80



model HPC-100

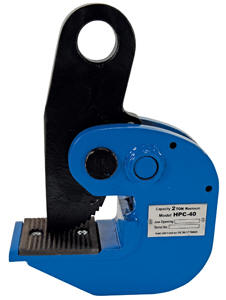

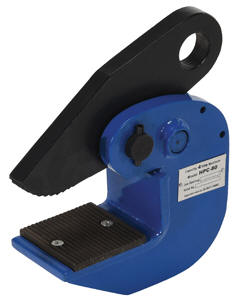

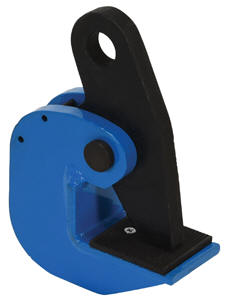

Designed for lifting plate material in horizontal position. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20 specifications. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

Horizontal Plate Clamps
Model PDF's Maximum
Plate Thickness
Working
Load Limit (lbs)
Min. Plate
Weight
Bale
Opening
Wt.
(lbs.)
HPC-20 Warranty PDFPhoto Gallery 0.8125" 2,000 400 lbs 1.2" 9
HPC-40 Warranty PDFPhoto Gallery 1.25" 4,000 800 lbs 1.2" 12
HPC-80 Warranty PDFPhoto Gallery 1.375" 8,000 1600 lbs 1.2" 15
HPC-100 Warranty PDFPhoto Gallery 1.4375" 10,000 2,800 lbs 1.2" 17

Non-Marring Plate Clamps >>

  Freight Quote



Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale


Notice
Do not use plate clamps to lift loads less than 20% of rated capacity.  Lift only one plate at a time. Plate must be clean and free of oil.

Not designed to use on stainless steel or aluminum plates.  For use with materials with a surface hardness to 30 RC (300 HB).


Download the Owners Manuals in PDF Format:

LPC series Manual

CPC series Manual

EPC series Manual
