All terrain pallet truck with gas-powered traction drive system.  Great for moving heavy loads over rough terrain. Powered by a Briggs & Stratton 190cc gas-powered engine for both the power traction drive and fork lift/lower.  Handle with forward reverse speed control and dead man safety switch.  Approximate walking speed is 3 mph.  Hydrostatic transmission with hand-operated forward and reverse selection.  Powered fork raise and lower control lever.  Usable width between outriggers is 52".  Forks adjust 8" to 36".  Pneumatic steer wheels are 13" diameter x 4" wide each.  The drive wheels are 18" diameter x 8" wide each foam filled.  Wheels include sealed bearings for outdoor use.  Steering arc is 150.  Complies with ASME B56.1-2004.  Optional 344cc engine with electric start and heavy duty trans axle available.

Complies with ASME B56.1-2004

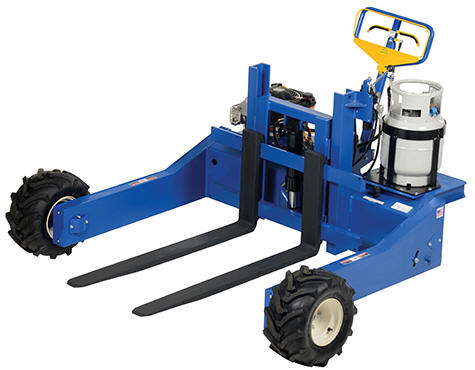

PROPANE POWERED
model ALL-T-2-PRO-L



Powered All Terrain Pallet Truck
Model Number PDF's Overall size
(W x L)
Capacity (lbs) @ 24" Load Center Fork
(W x L)
Service
Range
Wt. (lbs)
 GAS POWERED
ALL-T-2-GPT Warranty PDFCompliance Certificate 79" x 74-5/16" 2,000 4" x 36" 3" to 12" 1316
ALL-T-2-GPT-L Warranty PDFCompliance Certificate 79" x 86-5/16" 2,000 4" x 48" 3" to 12" 1346
ALL-T-4-GPT Warranty PDFCompliance Certificate 79" x  75-1/16" 4,000 4" x 36" 3" to 12" 1385
ALL-T-4-GPT-L Warranty PDFCompliance Certificate 79" x 87-1/16" 4,000 4" x 48" 3" to 12" 1418
ALL-T-GPT-10HP
344cc engine Factory upgrade (approximately 10 HP) 215
ALL-T-GPT-PT Optional power tilt allows for tilting of forks + 8 degrees & adds approximately 7-1/4" to overall length 265
 PROPANE POWERED
ALL-T-2-PRO Warranty PDFCompliance Certificate 79" x 78" 2,000 4" x 36" 3" to 12" 1327
ALL-T-2-PRO-L Warranty PDFCompliance Certificate 79" x 90" 2,000 4" x 48" 3" to 12" 1357
ALL-T-4-PRO Warranty PDFCompliance Certificate 79" x  78" 4,000 4" x 36" 3" to 12" 1396
ALL-T-4-PRO-L Warranty PDFCompliance Certificate 79" x 90" 4,000 4" x 48" 3" to 12" 1429
 GAS POWERED STACKERS
ALL-T-1-GPT-ST-L Warranty PDFCompliance Certificate 79" x 90" 1,000 4" x 48" 3" to 50" 1346
= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



Download The Gas Powered All Terrain Pallet Truck Owners Manual in PDF Format.

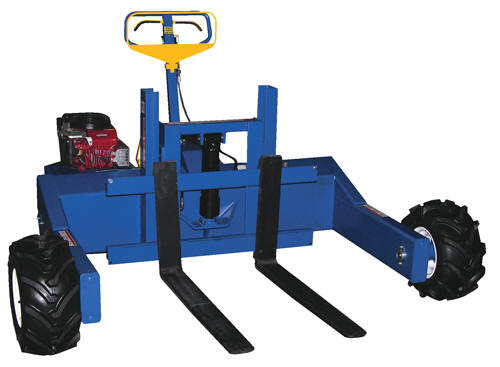

190cc Briggs & Stratton gas-powered engine


Drive wheels are 18" diameter x 8-1/2" wide


Parking Break


Emergency Shut-Off Release
