HEAVY DUTY CANTILEVER RACK KIT
model HDU-C-8-36-SET
(shown assembled)

The Cantilever Racks are ideal for eliminating storage problems. The steel constructed design allows for quick and efficient handling by forklift or by hand.  The rack includes pre-drilled holes, adjustable arms for access to variable heights, and front lipped arms to prevent items from falling.  Available in both single sided and double sided units with the option of standard, medium, or heavy duty construction.  Baked-in powder-coated toughness.  *Capacity is per level.




STANDARD DUTY KIT
model SU-C-6-24-SET



STANDARD DUTY KIT
model SDU-C-6-12-SET



STANDARD DUTY KIT
model SDU-C-6-24-SET



STANDARD DUTY KIT
model SDU-C-6-36-SET
Cantilever Rack Kits
Model Package Contents Capacity
(lbs)
Wt.
(lbs)

 Standard-Duty Cantilever Rack Kits

SU-C-6-24-SET (2) SU-C-6-24 6' High Single Sided Uprights, (1) SB-C-6-48 Brace Set, (4) SSA-C-24 24" Arms 800 382
SU-C-8-24-SET (2) SU-C-8-24 8' High Single Sided Uprights, (1) SB-C-8-48 Brace Set, (4) SSA-C-24 24" Arms 800 422
SDU-C-6-24-SET (2) SDU-C-6-24 6' High Double Sided Uprights, (1) SB-C-6-48 Brace Set, (8) SSA-C-24 24" Arms 1,600 516
SDU-C-6-36-SET (2) SDU-C-6-24 6' High Double Sided Uprights, (1) SB-C-6-48 Brace Set, (8) SSA-C-36 36" Arms 800 556

 Medium-Duty Cantilever Rack Kits

MU-C-6-24-SET (2) MU-C-6-24 6' High Single Sided Uprights, (1) MB-C-6-48 Brace Set, (4) MSA-C-24 24" Arms 1,200 482
MU-C-8-24-SET (2) MU-C-8-24 8' High Single Sided Uprights, (1) MB-C-8-48 Brace Set, (4) MSA-C-24 24" Arms 1,200 522
MDU-C-6-24-SET (2) MDU-C-6-24 6' High Double Sided Uprights, (1) MB-C-6-48 Brace Set, (8) MSA-C-24 24" Arms 2,400 618
MDU-C-6-36-SET (2) MDU-C-6-24 6' High Double Sided Uprights, (1) MB-C-6-48 Brace Set, (8) MSA-C-36 36" Arms 1,600 810

 Heavy-Duty Cantilever Rack Kits

HU-C-8-36-SET (2) HU-C-8-36 8' High Single Sided Uprights, (1) HB-C-8-48 Brace Set, (4) HSA-C-36 36" Arms 2,400 810
HDU-C-8-24-SET (2) HDU-C-8-24 8' High Double Sided Uprights, (1) HB-C-8-48 Brace Set, (8) HSA-C-24 24" Arms 8,000 890
HDU-C-8-36-SET (2) HDU-C-8-36 8'  High Double Sided Uprights, (1) HB-C-8-48 Brace Set, (8) HSA-C-36 36" Arms 4,800 1016

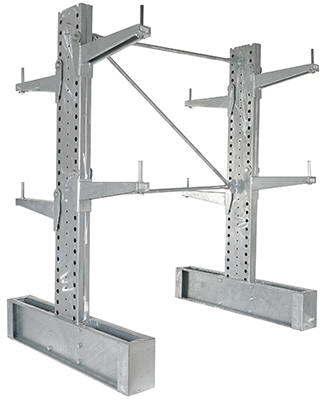

model HDU-C-8-24-G-SET
(shown assembled)

The Galvanized Cantilever Rack systems are ideal for distributing and industrial settings.  The galvanized steel design minimizes rust while providing a strong construction.  The adjustable rack arms can be adapted to a customized position allowing the unit to fit the needs of individual circumstances.  *Capacity is per level.




model SU-C-6-24-G-SET



model SU-C-8-24-G-SET



model SDU-C-6-24-G-SET



model SDU-C-6-36-G-SET
Galvanized Cantilever Rack Kits
Model Package Contents Capacity
(lbs)
Wt.
(lbs)

 Standard-Duty Galvanized Cantilever Rack Kits

SU-C-6-24-G-SET (2) SU-C-6-24-G 6' High Single Sided Uprights, (1) SB-C-6-48-G Brace Set, (4) SSA-C-24-G 24" Arms 800 382
SU-C-8-24-G-SET (2) SU-C-8-24-G 8' High Single Sided Uprights, (1) SB-C-8-48-G Brace Set, (4) SSA-C-24-G 24" Arms 800 422
SDU-C-6-24-G-SET (2) SDU-C-6-24-G 6' High Double Sided Uprights, (1) SB-C-6-48-G Brace Set, (8) SSA-C-24-G 24" Arms 1,600 516
SDU-C-6-36-G-SET (2) SDU-C-6-24-G 6' High Double Sided Uprights, (1) SB-C-6-48-G Brace Set, (8) SSA-C-36-G 36" Arms 800 556

 Medium-Duty Galvanized Cantilever Rack Kits

MU-C-6-24-G-SET (2) MU-C-6-24-G 6' High Single Sided Uprights, (1) MB-C-6-48-G Brace Set, (4) MSA-C-24-G 24" Arms 1,200 482
MU-C-8-24-G-SET (2) MU-C-8-24-G 8' High Single Sided Uprights, (1) MB-C-8-48-G Brace Set, (4) MSA-C-24-G 24" Arms 1,200 522
MDU-C-6-24-G-SET (2) MDU-C-6-24-G 6' High Double Sided Uprights, (1) MB-C-6-48-G Brace Set, (8) MSA-C-24-G 24" Arms 2,400 618
MDU-C-6-36-G-SET (2) MDU-C-6-24 6' High Double Sided Uprights, (1) MB-C-6-48 Brace Set, (8) MSA-C-36 36" Arms 1,600 810

 Heavy-Duty Galvanized Cantilever Rack Kits

HU-C-8-36-G-SET (2) HU-C-8-36-G 8' High Single Sided Uprights, (1) HB-C-8-48-G Brace Set, (4) HSA-C-36-G 36" Arms 2,400 810
HDU-C-8-24-G-SET (2) HDU-C-8-24-G 8' High Double Sided Uprights, (1) HB-C-8-48-G Brace Set, (8) HSA-C-24-G 24" Arms 8,000 890
HDU-C-8-36-G-SET (2) HDU-C-8-36-G 8'  High Double Sided Uprights, (1) HB-C-8-48-G Brace Set, (8) HSA-C-36-G 36" Arms 4,800 1016

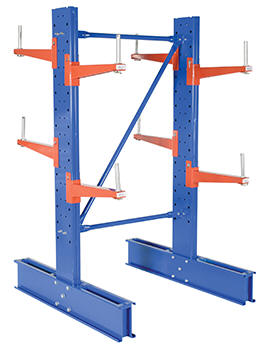

DOUBLE SIDED series SDU-C
(model SDU-C-6-12 shown assembled)

The Standard Duty Cantilever Rack Systems are great for manufacturing and distributing facilities.  The steel construction provides strength and durability, which allows the unit to withstand the harshest of environments.  The adjustable arms allow the unit to be customized to fit the needs of individual circumstances.  Individual components are sold separately to accommodate your requirements.  *Capacity listed is per upright.

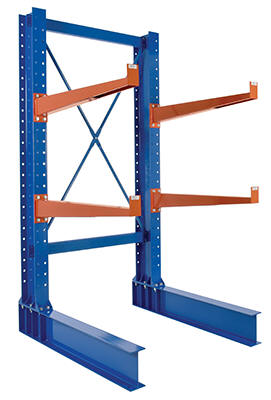

series SU-C
(shown assembled)



STRAIGHT ARMS
model SSA-C-18

Standard Duty Cantilever Racking
Model Height Base Arms
To Use
Capacity
(lbs)
Wt.
(lbs)
 Single Sided Uprights
SU-C-6-12 72" 25-3/8" 12" 5,500 172
SU-C-6-18 72" 31" 18" 4,300 182
SU-C-6-24 72" 37" 24" 3,800 195
SU-C-6-36 72" 49-3/8" 30"/
36"
3,000 /
2,600
198
SU-C-8-12 96" 25-3/8" 12" 5,000 186
SU-C-8-18 96" 31" 18" 4,000 191
SU-C-8-24 96" 37" 24" 3,500 197
SU-C-8-36 96" 49-3/8" 30"/
36"
2,700 /
2,400
208
SU-C-10-12 120" 25-3/8" 12" 4,600 214
SU-C-10-18 120" 31" 18" 3,600 219
SU-C-10-24 120" 37" 24" 3,200 225
SU-C-10-36 120" 49-3/8" 30"/
36"
2,500 /
2,100
237
Model Height Base Arms
To Use
Capacity
(lbs)
Wt.
(lbs)
 Double Sided Uprights
SDU-C-6-12 72" 34" 12" 11,000 183
SDU-C-6-18 72" 46" 18" 8,600 183
SDU-C-6-24 72" 58" 24" 7,700 195
SDU-C-6-36 72" 82" 30"/
36"
6,000 /
5,200
215
SDU-C-8-12 96" 34" 12" 10,100 197
SDU-C-8-18 96" 46" 18" 8,000 208
SDU-C-8-24 96" 58" 24" 7,100 219
SDU-C-8-36 96" 82" 30"/
36"
5,500 /
4,800
242
SDU-C-10-12 120" 34" 12" 9,300 225
SDU-C-10-18 120" 46" 18" 7,300 236
SDU-C-10-24 120" 58" 24" 6,500 249
SDU-C-10-36 120" 82" 30"/
36"
5,000 /
4,300
270
Straight Arms
Model Uniform
Capacity
Per Arm
Arm
Length
Wt.
(lbs)
SSA-C-12 800 lbs. 12" 10
SSA-C-18 600 lbs. 18" 12
SSA-C-24 400 lbs. 24" 15
SSA-C-30 300 lbs. 30" 17
SSA-C-36 200 lbs. 36" 21
10 Inclined Arms
Model Uniform
Capacity
Per Arm
Arm
Length
Wt.
(lbs)
SIA-C-12 800 lbs. 12" 10
SIA-C-18 600 lbs. 18" 12
SIA-C-24 400 lbs. 24" 15
SIA-C-30 300 lbs. 30" 17
SIA-C-36 200 lbs. 36" 21
Brace Sets For 6 Foot Uprights
Model Length Wt.
(lbs)
SB-C-6-36 36" 26
SB-C-6-48 48" 38
SB-C-6-60 60" 44
SB-C-6-72 72" 50
SB-C-6-96 96" 64
Brace Sets For 8 Foot Uprights
Model Length Wt.
(lbs)
SB-C-8-36 36" 28
SB-C-8-48 48" 42
SB-C-8-60 60" 48
SB-C-8-72 72" 52
SB-C-8-96 96" 66
Brace Sets For 10 Foot Uprights
Model Length Wt.
(lbs)
SB-C-10-36 36" 30
SB-C-10-48 48" 44
SB-C-10-60 60" 50
SB-C-10-72 72" 54
SB-C-10-96 96" 90




Single Sided Uprights shown with arms and braces

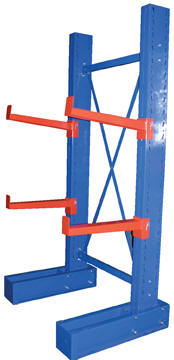

Cantilever Rack Systems offer flexibility to custom-fit individual applications. The unique bolt together construction with welded steel components offer a great combination of strength and durability. Arms and uprights are sold each.  Powder coat finish. All assembly hardware is included.

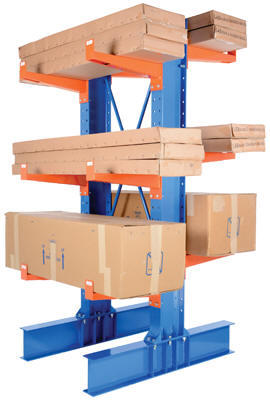

Medium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor.  Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application.


Brace Sets

Double Sided Uprights

Single-Sided Cantilever Uprights

Model PDF Height Base Arms
to Use
Capacity
(lbs)
Wt.
(lbs)
MU-C-6-12 Warranty PDF 6' 25 3/8" 12" 8,100 161
MU-C-6-18 Warranty PDF 6' 31" 18" 6,600 164
MU-C-6-24 Warranty PDF 6' 37" 24" 5,500 170
MU-C-6-36 Warranty PDF 6' 49 3/8" 30"'/36" 4,700/4,100 183
MU-C-8-12 Warranty PDF 8' 25 3/8" 12" 7,600 186
MU-C-8-18 Warranty PDF 8' 31" 18" 6,300 191
MU-C-8-24 Warranty PDF 8' 37" 24" 5,300 197
MU-C-8-36 Warranty PDF 8' 49 3/8" 30"/36" 4,500/4,000 208
MU-C-10-12 Warranty PDF 10' 25 3/8" 12" 7,100 214
MU-C-10-18 Warranty PDF 10' 31" 18" 5,900 219
MU-C-10-24 Warranty PDF 10' 37" 24" 5,000 225
MU-C-10-36 Warranty PDF 10' 49 3/8" 30"/36" 4,400/3,800 237

Double-Sided Cantilever Uprights

Model PDF Height Base Arms
to Use
Capacity
(lbs)
Wt.
(lbs)
MDU-C-6-12 Warranty PDF 6' 34" 12" 16,200 172
MDU-C-6-18 Warranty PDF 6' 46" 18" 13,200 183
MDU-C-6-24 Warranty PDF 6' 58" 24" 11,000 195
MDU-C-6-36 Warranty PDF 6' 82" 30"/36" 9,400/8,200 215
MDU-C-8-12 Warranty PDF 8' 34" 12" 15,200 197
MDU-C-8-18 Warranty PDF 8' 46" 18" 12,600 208
MDU-C-8-24 Warranty PDF 8' 58" 24" 10,500 219
MDU-C-8-36 Warranty PDF 8' 82" 30"/36" 9,000/8,000 242
MDU-C-10-12 Warranty PDF 10' 34" 12" 14,200 225
MDU-C-10-18 Warranty PDF 10' 46" 18" 11,800 236
MDU-C-10-24 Warranty PDF 10' 58" 24" 10,000 249
MDU-C-10-36 Warranty PDF 10' 82" 30"/36" 8,800/7,600 270
Straight Arms
Model PDF Arm
Length
Uniform Capacity Per Arm (lbs) Wt.
(lbs)
MSA-C-12 Warranty PDF 12" 1,000 10
MSA-C-18 Warranty PDF 18" 750 12
MSA-C-24 Warranty PDF 24" 600 15
MSA-C-30 Warranty PDF 30" 500 17
MSA-C-36 Warranty PDF 36" 400 21
10 Inclined Arms
Model PDF Arm
Length
Uniform Capacity Per Arm (lbs) Wt.
(lbs)
MIA-C-12 Warranty PDF 12" 1,000 10
MIA-C-18 Warranty PDF 18" 750 12
MIA-C-24 Warranty PDF 24" 600 15
MIA-C-30 Warranty PDF 30" 500 17
MIA-C-36 Warranty PDF 36" 400 21
Brace Sets (includes two)
Model PDF Fits Upright
(ft.)
Length Wt.
(lbs)
MB-C-6-36 Warranty PDF 6 36" 26
MB-C-6-48 Warranty PDF 6 48" 38
MB-C-6-60 Warranty PDF 6 60" 44
MB-C-6-72 Warranty PDF 6 72" 50
MB-C-6-96 Warranty PDF 6 96" 64
MB-C-8-36 Warranty PDF 8 36" 28
MB-C-8-48 Warranty PDF 8 48" 42
MB-C-8-60 Warranty PDF 8 60" 48
MB-C-8-72 Warranty PDF 8 72" 52
MB-C-8-96 Warranty PDF 8 96" 66
MB-C-10-36 Warranty PDF 10 36" 30
MB-C-10-48 Warranty PDF 10 48" 44
MB-C-10-60 Warranty PDF 10 60" 50
MB-C-10-72 Warranty PDF 10 72" 54
MB-C-10-96 Warranty PDF 10 96" 90

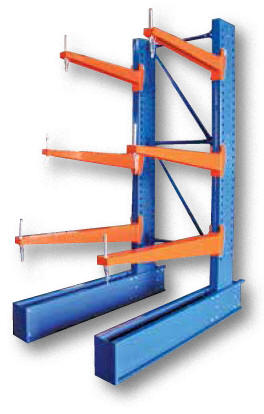

HEAVY DUTY CANTILEVER RACK
(shown assembled)
model HU-C-8-36-SET

Heavy-Duty Cantilever Racks are completely adjustable for application specific design flexibility. Long, unwelded stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load. Arms are adjustable up and down the length of the upright. Pre-drilled holes on the uprights are spaced every 3." for bolt-on arm placement (hardware included). All arms feature lips to prevent product from falling off. Standard arms have a 3⅛" lip. Heavy-duty and extra heavy-duty have a 3." lip. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application. *Capacity listed is per upright.



Single-Sided Cantilever Uprights (Heavy-Duty)

Model PDF Height Base Arms
to Use
Capacity
(lbs)
Wt.
(lbs)
HU-C-8-18 Warranty PDF 96" 28-1/4" 18" 24,700 265
HU-C-8-24 Warranty PDF 96" 36-1/2" 24" 21,500 275
HU-C-8-36 Warranty PDF 96" 48-1/2" 30"/36" 18,300/16,000 292
HU-C-8-48 Warranty PDF 96" 60-1/2" 42"/48" 14,200/12,800 310
HU-C-10-18 Warranty PDF 120" 28-1/4" 18" 24,700 313
HU-C-10-24 Warranty PDF 120" 36-1/2" 24" 21,500 323
HU-C-10-36 Warranty PDF 120" 48-1/2" 30"/36" 18,300/16,000 340
HU-C-10-48 Warranty PDF 120" 60-1/2" 42"/48" 14,200/12,800 357
HU-C-12-18 Warranty PDF 144" 28-1/4" 18" 24,400 351
HU-C-12-24 Warranty PDF 144" 36-1/2" 24" 20,900 362
HU-C-12-36 Warranty PDF 144" 48-1/2" 30"/36" 17,800/15,600 378
HU-C-12-48 Warranty PDF 144" 60-1/2" 42"/48" 13,900/12,500 396
HU-C-14-18 Warranty PDF 168" 28-1/4" 18" 23,400 390
HU-C-14-24 Warranty PDF 168" 36-1/2" 24" 20,200 401
HU-C-14-36 Warranty PDF 168" 48-1/2" 30"/36" 17,600/15,400 417
HU-C-14-48 Warranty PDF 168" 60-1/2" 42"/48" 13,700/12,400 435

Double-Sided Cantilever Uprights

Model PDF Height Base Arms
to Use
Capacity
(lbs)
Wt.
(lbs)
HDU-C-8-18 Warranty PDF 96" 46" 18" 49,400 288
HDU-C-8-24 Warranty PDF 96" 58" 24" 43,000 307
HDU-C-8-36 Warranty PDF 96" 82" 30"/36" 36,600 /32,000 342
HDU-C-8-48 Warranty PDF 96" 106" 42"/48" 28,400/25,600 378
HDU-C-10-18 Warranty PDF 120" 46" 18" 49,200 336
HDU-C-10-24 Warranty PDF 120" 58" 24" 42,600 355
HDU-C-10-36 Warranty PDF 120" 82" 30"/36" 36,400/31,600 391
HDU-C-10-48 Warranty PDF 120" 106" 42"/48" 28,200/25,200 427
HDU-C-12-18 Warranty PDF 144" 46" 18" 48,800 374
HDU-C-12-24 Warranty PDF 144" 58" 24" 41,800 393
HDU-C-12-36 Warranty PDF 144" 82" 30"/36" 35,600/31,200 429
HDU-C-12-48 Warranty PDF 144" 106" 42"/48" 27,800/25,000 465
HDU-C-14-18 Warranty PDF 168" 46" 18" 46,800 413
HDU-C-14-24 Warranty PDF 168" 58" 24" 40,400 432
HDU-C-14-36 Warranty PDF 168" 82" 30"/36" 35,200/30,800 468
HDU-C-14-48 Warranty PDF 168" 106" 42"/48" 27,400/24,800 507
Straight Arms
Model PDF Arm
Length
Uniform
Capacity Per
Arm (lbs)
Wt.
(lbs)
HSA-C-18 Warranty PDF 18" 2,500 16
HSA-C-24 Warranty PDF 24" 2,000 19
HSA-C-30 Warranty PDF 30" 1,500 22
HSA-C-36 Warranty PDF 36" 1,200 24
HSA-C-42 Warranty PDF 42" 1,100 27
HSA-C-48 Warranty PDF 48" 1,000 30
Inclined Arms
Model PDF Arm
Length
Uniform
Capacity Per
Arm (lbs)
Wt.
(lbs)
HIA-C-18 Warranty PDF 18" 2,500 16
HIA-C-24 Warranty PDF 24" 2,000 19
HIA-C-30 Warranty PDF 30" 1,500 22
HIA-C-36 Warranty PDF 36" 1,200 26
HIA-C-42 Warranty PDF 42" 1,100 29
HIA-C-48 Warranty PDF 48" 1,000 32
Heavy-Duty & Extra Heavy-Duty Arms
Model PDF Arm
Length
Uniform
Capacity Per
Arm (lbs)
Wt.
(lbs)
HDSA-C-36 Warranty PDF 36" 2,175 26
XHDSA-C-36 Warranty PDF 36" 3,400 30
HDSA-C-42 Warranty PDF 42" 1,865 29
XHDSA-C-42 Warranty PDF 42" 2,900 33
HDSA-C-48 Warranty PDF 48" 1,630 31
HDSA-C-48M Warranty PDF 48" 2,000 31
XHDSA-C-48 Warranty PDF 48" 2,500 36
Brace Sets (includes two)
Model PDF Upright
Height
Length Wt.
(lbs)
HB-C-8-3 Warranty PDF 96"-120" 35-1/2" 28
HB-C-8-4 Warranty PDF 96"-120" 47-1/2" 31
HB-C-8-5 Warranty PDF 96"-120" 59-1/2" 38
HB-C-8-6 Warranty PDF 96"-120" 71-1/2" 43
HB-C-8-7 Warranty PDF 96"-120" 83-1/2" 98
HB-C-8-8 Warranty PDF 96"-120" 95-1/2" 107
HB-C-14-3 Warranty PDF 144"- 168" 35-1/2" 44
HB-C-14-4 Warranty PDF 144"- 168" 47-1/2" 48
HB-C14-5 Warranty PDF 144"- 168" 59-1/2" 56
HB-C-14-6 Warranty PDF 144"- 168" 71-1/2" 66
HB-C-14-7 Warranty PDF 144"- 168" 83-1/2" 78
HB-C-14-8 Warranty PDF 144"- 168" 95-1/2" 123

Freight Quote

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate



Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



Download the MDU Owners Manual in PDF format.




Straight Arms


Incline Arms

Storage Solutions
View 3D Interactive Storage Solutions Catalog






  |  Ergonomic  |  Loading Dock  |  Material Handling  |  Drum Handling  |  Packaging  |  Storage Solutions  | Facilities Maintenance | Ladders

Phone (260) 665-7586 Fax (260) 665-1339 E-mail: sales@vestil.com

PROP 65 WARNING
