model CRAD-25

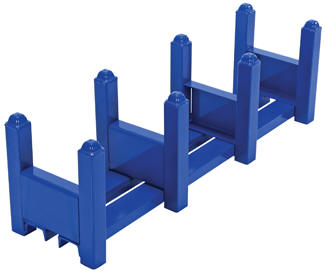

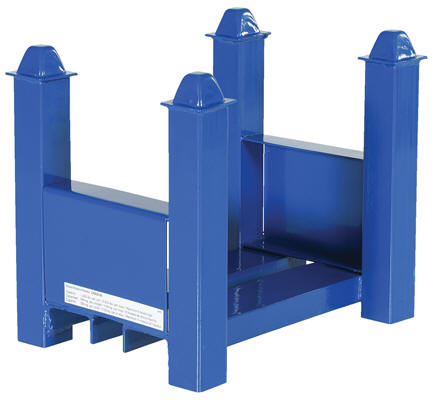

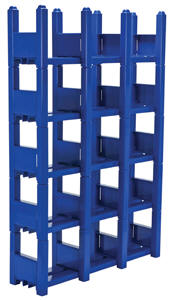

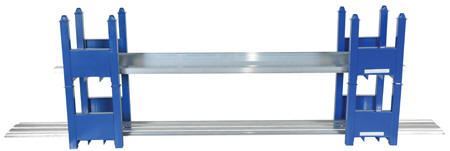

These sturdy, welded steel racks are strong enough to handle heavy loads yet light enough to be set up by one person. Stackable up to five units high. Allows for custom design by choosing length, depth and height of individual storage systems. Welded steel construction with blue painted surface. Units are sold each.


model CRAD-25-44




model CRAD-37



model CRAD-56


model CRAD-75

Stackable Bar Cradles
Model PDF's Overall Size
(WxDxH)
Inside Size
(WxDxH)
Uniform Capacity/
Each (lbs)
Uniform Capacity/Pair
(lbs)
Wt.
(lbs)
CRAD-25 Warranty PDFPhoto GalleryCompliance Certificate 12"x16"x14" 8"x12"x10-5/8" 1,250 2,500 31
CRAD-25-30 Warranty PDFPhoto GalleryCompliance Certificate 12"x30"x14" 8"x12"x10-5/8" 1,250 2,500 78
CRAD-25-44 Warranty PDFPhoto GalleryCompliance Certificate 12"x44"x14" 8"x12"x10-5/8" 1,250 2,500 107
CRAD-25-58 Warranty PDFPhoto GalleryCompliance Certificate 12"x58"x14" 8"x12"x10-5/8" 1,250 2,500 127
CRAD-25-72 Warranty PDFPhoto GalleryCompliance Certificate 12"x72"x14" 8"x12"x10-5/8" 1,250 2,500 146
CRAD-37 Warranty PDFPhoto GalleryCompliance Certificate 14"x19"x18" 10"x15"x14-5/8" 1,850 3,700 37
CRAD-56 Warranty PDFPhoto GalleryCompliance Certificate 15"x22"x21" 11"x18"x17-5/8" 2,800 5,600 43
CRAD-75 Warranty PDFPhoto GalleryCompliance Certificate 16"x26"x24" 12"x22"x20-1/2" 3,750 7,500 46

Freight Quote

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
