model JMD-1000-72

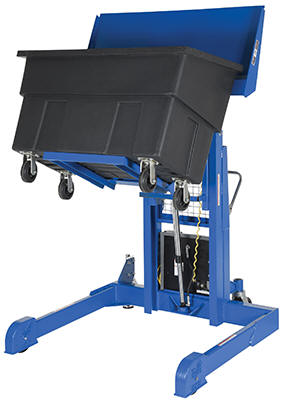

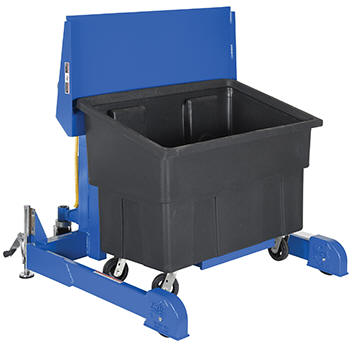

Collect, transport, and dump materials while saving time and reducing work related injuries. Ideal for schools, hospitals, commercial, and industrial applications. One person can easily and safely empty loads weighing up to 600 pounds. To use, roll the tote into dumper, secure tote in place, and depress the 24V hand control. The tote will rotate over 135 to dump contents. Dump time is approximately 25 seconds. Standard features: Two (2) 8" x 2" glass filled nylon front wheels, Two (2) 8" x 3" phenolic rear casters, floor lock, one (1) 12V DC power, hand pendant control on 8 foot coil cord and one (1) MPT-1 polyethylene tote. To operate under full capacity purchase model MPT-2.

model JMD-1000-48




Multipurpose Tote Dumpers
Model PDF's Dump
JMD-1000-48 Warranty PDFCompliance Certificate 48" 105-3/4" 600 57-1/4"x65-1/8" 1061
JMD-1000-60 Warranty PDFCompliance Certificate 60" 117-3/4" 600 57-1/4"x65-1/8" 1075
JMD-1000-72 Warranty PDFCompliance Certificate 72" 129-3/4" 600 57-1/4"x65-1/8" 1099



model MPT-1

model MPT-2
Multipurpose Totes
Model Number PDF Description Capacity
MPT-1 Warranty PDFCompliance Certificate ADDITIONAL CUBIC YARD POLYETHYLENE TOTE (Each tote includes four (4) 6 x 2 mold-on-rubber swivel casters) 200 52-1/2"W x 30-3/4"D x 41-13/16"H 128
MPT-2 Warranty PDFCompliance Certificate

CUBIC YARD POLYETHYLENE TOTE (Each tote includes four (4) 6 x 2 mold-on-rubber swivel casters)

600 52-1/2"W x 30-3/4"D x 42-5/16"H 200

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote


Copyright 2018
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale

JMD Series Owners Manual

Hand Pendant Control

Typical Applications:

Laundry Service
Waste Removal
Food Service
Waste Compacting
