Model: WTJ-2

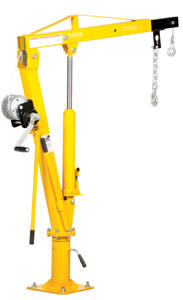

Installed in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads up to 500 pounds. Friction brake winch locks automatically when operator turns the handle counterclockwise to lower load. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2).  Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360 base. Safety yellow, galvanized or stainless steel finish available. Welded steel construction. 12V DC power option available.



 model WTJ-4
Click Here for 360 View

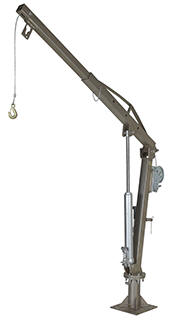

GALVANIZED FINISH
model WTJ-2-G



STAINLESS STEEL FINISH
model WTJ-2-DC



STAINLESS STEEL FINISH
model WTJ-4-
SS

Winch Operated Truck Jib Crane
Model PDF's Operation Boom Fixed Hook
Capacity
(lbs)
Boom Reach  Lift
Range
 Wt.
(lbs)
  Painted Safety Yellow Finish
WTJ-2 Warranty PDFCompliance Certificate Hand Pump Extended
Retracted
500
1,000
54"
30-1/4"
0 TO 102"
10" TO 89-1/2"
135
WTJ-4 Warranty PDFCompliance Certificate Hand Pump Extended
Retracted
1,000
2,000
44"
30"
0 TO 86-1/2"
13-1/2" TO 77-1/2"
145
WTJ-2-DC Warranty PDFCompliance Certificate 12V DC Extended
Retracted
500
1,000
54"
30-1/4"
0 TO 102"
10" TO 89-1/2"
160
WTJ-4-DC Warranty PDFCompliance Certificate 12V DC Extended
Retracted
1,000
2,000
44"
30"
0 TO 86-1/2"
13-1/2" TO 77-1/2"
170
 Galvanized Finish
WTJ-2-G Warranty PDFCompliance Certificate Hand Pump Extended
Retracted
500
1,000
52"
30-1/2
0 TO 86"
15-1/8" TO 72"
134
WTJ-4-G Warranty PDFCompliance Certificate Hand Pump Extended
Retracted
1,000
2,000
52"
31"
0 TO 85-7/8"
15-1/2" TO 74-1/2"
218
WTJ-2-G-DC Warranty PDFCompliance Certificate 12V DC Extended
Retracted
500
1,000
52"
30-12"
0 TO 86"
15-1/8" TO 72"
165
WTJ-4-G-DC Warranty PDFCompliance Certificate 12V DC Extended
Retracted
1,000
2,000
52"
31"
0 TO 85-7/8"
15-1/2" TO 74-1/2"
245
 Stainless Steel Finish
WTJ-2-SS Warranty PDFCompliance Certificate Hand Pump Extended
Retracted
500
1,000
52"
30-1/2"
0 to 86"
5" to 72"
134
WTJ-4-SS Warranty PDFCompliance Certificate Hand Pump Extended
Retracted
1,000
2,000
52"
31"
0 TO 85-7/8"
15-1/2" TO 74-1/2"
218

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

Freight Quote



Copyright 2019
Vestil Manufacturing.
All rights reserved.  Disclaimer Information.

Terms & Conditions of Sale



 WTJ-2 Owners Manual

WTJ-4 Owners Manual
