model CB-W-3S

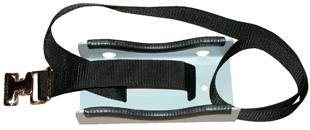

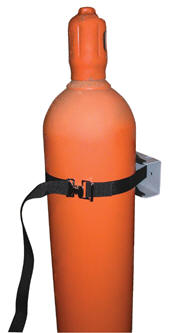

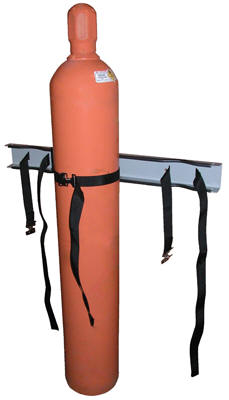

Simple design is easy to install.  Simply bolt to wall and then secure cylinder with strap.  Edges are protected with rubber guards on the steel units.  Choose either steel or molded plastic construction.  Maximum 12" cylinder diameter.  Installation hardware is not included.



model CB-W-S



model CB-W-2S



model CB-W-P


model CB-W-2P

Wall Mounted Cylinder Brackets
Model PDF Material Accommodates
Cylinders
Wt.
(lbs)
CB-W-S Warranty PDFPhoto GalleryCompliance Certificate Steel 1 2
CB-W-2S Warranty PDFPhoto GalleryCompliance Certificate Steel 2 7
CB-W-3S Warranty PDFPhoto GalleryCompliance Certificate Steel 3 10
CB-W-P Warranty PDFPhoto GalleryCompliance Certificate Plastic 1 1
CB-W-2P Warranty PDFPhoto GalleryCompliance Certificate Plastic 2 2

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




model CYL-W

The Wall Mounted Cylinder Holder is great for any industrial environment.  The cylinder holder keeps cylinders in a defined area for both safety and convenience.  The unit is standard with removable straps for securing tanks in place, as well as pre-drilled holes for quick wall mounting and a yellow painted finish for clear visibility.

Wall Mounted Cylinder Holder
Model PDF Overall Size
(WxDxH)
Uniform
Capacity
Wt.
(lbs)
CYL-W Warranty PDFPhoto GalleryCompliance Certificate 24-1/4"x15-13/16"x66-3/8" 500 lbs. 219

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate




model CB-ST-6

Our Cylinder Bracket Stands allow for storage of cylinders in the vertical position.  The straps are included for securing the cylinders to the stand. Stands have pre-drilled mounting holes for attachment to the floor (floor mounting hardware is not included).  Stands are powder-coated blue and steel brackets feature a gray painted finish. Assembly hardware included.




model CB-ST-4



model CB-S-2S
Wall Mounted Cylinder Holder
Model PDF Overall Size
(WxDxH)
Cylinder
Capacity
Wt.
(lbs)
CB-S-2S Warranty PDFPhoto GalleryCompliance Certificate 10-3/4"x 27"x30-3/8" 2 35
CB-ST-4 Photo GalleryCompliance Certificate 35-1/2"x20-3/4"x36-1/2" 4 58
CB-ST-6 Photo GalleryCompliance Certificate 47-1/2"x20-3/4"x36-1/2" 6 68
AS-125 Anchor Bolts For Concrete (1) 1/2"x5" 1
AS-125-4PK Anchor Bolts For Concrete (4) 1/2"x5" 2

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

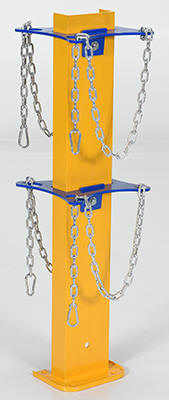

model SACR-2

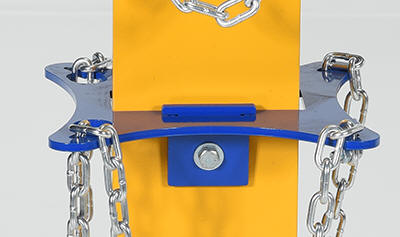

A cylinder storage stand is great for additional cylinders that are both used and unused.  The sturdy steel construction with a bright yellow and blue finish endorses visibility of the unit, both near and far.  Two cylinders are able to be stood in a secure position due to the shaped steel and safety chain.  The unit can be secured to the floor by utilizing the pre-drilled mounting holes at the base of the stand.

Wall Mounted Cylinder Holder
Model PDF Overall Size
(WxDxH)
Cylinder
Capacity
Wt.
(lbs)
SACR-2 Compliance Certificate 10-1/16"x9-1/2"x36-1/4" 2 40

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
