model BS-915-1212-100


model BS-915BT-2424-1000


model BS-915RT-2424-1000

Designed for speed, accuracy, and high usage. Ideal for busy shipping docks, outdoor markets, and food processing. Mild steel platform, interlocking 304 stainless steel tray for easy cleaning. Adjustable tilt display for convenient viewing angles. Rechargeable battery and AC adapter. Aluminum environmentally sealed single point load cell. Adjustable feet provides exceptional traction. Removable column for indicator to work up to 4ft from the base. Environmental protection IP65 (splash-proof ).  Weight and count. Communication interface RS-232. LCD display (lbs, kgs, ounces, and grams).

Bench Scales - Legal for Trade (NTEP)
Model PDFs Platform
Size (WxL)
Capacity x
Readability
Overall Size
(WxLxH)
Wt.
(lbs)
BS-915-1212-100 Warranty PDF 12"x12" 100 lb. x 0.2 lbs 12"x16"x17" 25
BS-915-1214-150 Warranty PDF 12"x14" 150 lb. x 0.2 lbs 14"x18"x17" 26
BS-915-1616-300 Warranty PDF 16"x16" 300 lb. x 0.5 lbs 16"x20"x26" 34
BS-915-1620-400 Warranty PDF 16"x20" 400 lb. x 0.5 lbs 16"x24"x26" 40
BS-915-1818-400 Warranty PDF 18"x18" 400 lb. x 0.5 lbs 18"x22"x26" 42
BS-915-1824-500 Warranty PDF 18"x24" 500 lb. x 0.1 lbs 18"x28"x33" 66
BS-915-2020-500 Warranty PDF 20"x20" 500 lb. x 0.1 lbs 20"x24"x33" 64
BS-915-2424-500 Warranty PDF 24"x24" 500 lb. x 0.1 lbs 24"x28"x33" 72
BS-915-2424-1000 Warranty PDF 24"x24" 1000 lb. x 0.2 lbs 24"x28"x33" 72
BS-915BT-2424-1000* Warranty PDF 24"x24" 1000 lb. x 0.2 lbs 24"x28"x33" 74
BS-915RT-2424-1000** Warranty PDF 24"x24" 1000 lb. x 0.2 lbs 24"x28"x33" 76
*BT (Ball Transfer Top)
**RT (Roller Top)

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

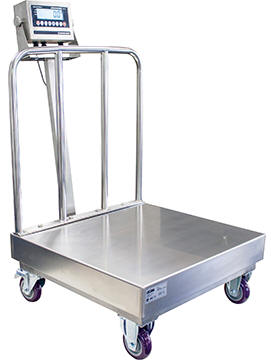

model BS-915SSBW-2424-500

Convenient portable weighing platform. Easily move in and out of work areas. Swivel wheels & backrest for portability. High accuracy single point strain gauge aluminum load cell. Weight and count. LCD display (lbs, kgs, ounces, and grams).

BS-915BW-1824-500 - Carbon steel platform and stainless steel cover. Environmental protection 1P65 (splash-proof ).
BS-915SSBW-2424-500 - All 304 stainless steel construction. Nema 4x/IP68 rated.

Portable Bench Scales - Legal for Trade (NTEP)
Model PDFs Platform
Size (WxLxH)
Capacity x
Readability
Overall Size
(WxLxH)
Wt.
(lbs)
BS-915BW-1824-500 Warranty PDF 18"x24"x8-1/2" 500 lb. x 0.1 lbs 18"x28"x33" 94
BS-915SSBW-2424-500* Warranty PDF 24"x24"x8-1/2" 500 lb. x 0.1 lbs 24"x28"x33" 97
*ALL STAINLESS STEEL WASH-DOWN IP67 RATED WITH STAINLESS STEEL WHEELS & BACKRAIL

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

WB01372_.gif (406 bytes) Stainless Steel Bench Scales - Legal for Trade (NTEP)



model BS-915SS-1818-400

Designed for hostile environments and washdown applications. 200% overload protection.  Heavy duty tough panel. Rechargeable battery and AC adapter. All 304 stainless steel construction. Nema 4x/IP68 rated. Features include weighing, accumulation, tare, pre-tare, counting, peak and hold, and data output to PC.



Stainless Steel Bench Scales - Legal for Trade (NTEP)
Model PDFs Platform
Size (WxL)
Capacity x
Readability
Overall Size
(WxLxH)
Wt.
(lbs)
BS-915SS-1212-100 Warranty PDF 12"x12" 100 lb. x 0.2 lbs 12"x16"x17" 31
BS-915SS-1214-150 Warranty PDF 12"x14" 150 lb. x 0.2 lbs 14"x18"x17" 33
BS-915SS-1616-300 Warranty PDF 16"x16" 300 lb. x 0.5 lbs 16"x20"x26" 42
BS-915SS-1620-400 Warranty PDF 16"x20" 400 lb. x 0.5 lbs 16"x24"x26" 49
BS-915SS-1818-400 Warranty PDF 18"x18" 400 lb. x 0.5 lbs 18"x22"x26" 49
BS-915SS-1824-500 Warranty PDF 18"x24" 500 lb. x 0.1 lbs 18"x28"x33" 68
BS-915SS-2020-500 Warranty PDF 20"x20" 500 lb. x 0.1 lbs 20"x24"x33" 68
BS-915SS-2424-500 Warranty PDF 24"x24" 500 lb. x 0.1 lbs 24"x28"x33" 88
BS-915SS-2424-1000 Warranty PDF 24"x24" 1000 lb. x 0.2 lbs 24"x28"x33" 89
BS-915SS-EPD Warranty PDF EXPLOSION PROOF DISPLAY 6

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
