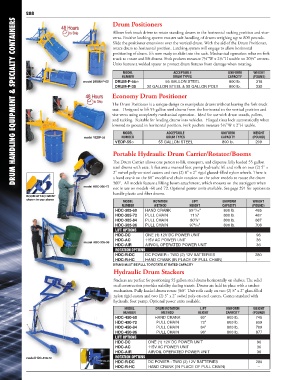

Page 4 - Drum Handling Equipment
P. 4

288
       DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
                                                Drum Positioners

                                                Allows fork truck driver to rotate standing drums to the horizontal racking position and vice-
                                                versa. Positive latching system ensures safe handling of drums weighing up to 800 pounds.
                                                Slide the positioner extensions over the vertical drum. With the aid of the Drum Positioner,
                                                rotate drum to horizontal position. Latching system will engage to allow horizontal
                                                positioning of drum. It’s now ready to slide into the rack. Mechanical operation relies on fork
                                                truck to rotate and lift drums. Fork pockets measure 7½"W x 2½"H usable on 20½" centers.
                                                Units feature a welded spacer to protect drum fixtures from damage when rotating.
                                                    MODEL                ACCEPTABLE            UNIFORM    WEIGHT
                                                   NUMBER               DRUM TYPES             CAPACITY  (POUND)
                                   model DRUM-P-55  DRUM-P-55       55 GALLON STEEL            800 lb.    318
                                                DRUM-P-30     30 GALLON STEEL & 55 GALLON POLY  800 lb.    335
                                               Economy Drum Positioner
                                               The Drum Positioner is a unique design to manipulate drums without leaving the fork truck
                                               seat.   Designed to lift 55 gallon steel drums from the horizontal to the vertical position and
                                               vise versa using completely mechanical operation.  Ideal for use with drum stands, pallets,
                                               and racking.  Suitable for loading drums into vehicles.  Hinged tines lock automatically when
                                               lowered to ground in horizontal position. Fork pockets measure 5½"W x 2"H usable.
                                                    MODEL             ACCEPTABLE            UNIFORM       WEIGHT
                                    model VEDP-55  NUMBER             DRUM TYPES            CAPACITY     (POUND)
                                                 VEDP-55         55 GALLON STEEL            800 lb.       209

                                                Portable Hydraulic Drum Carrier/Rotator/Booms
                                                The Drum Carrier allows one person to lift, transport, and dispense fully loaded 55 gallon
                                                steel drums with ease. It features a manual foot pump hydraulic lift and rolls on two (2) 5" x
                                                2" swivel poly-on-steel casters and two (2) 8" x 2" rigid glassed-filled nylon wheels. There is
                                                a hand crank on the 60" model and chain rotation on the other models to rotate the drum
                                                360°.  All models feature a lifting boom attachment, which mounts on the outriggers when
                                    model HDC-305-72
                                                not in use on models -60 and 72. Optional power units available. See page 291 for options to
                                                handle plastic and fiber drums.
            BOOM ATTACHMENT
            shown in use above
                                                    MODEL       ROTATION        LIFT         UNIFORM     WEIGHT
                                                   NUMBER        METHOD        HEIGHT        CAPACITY    (POUND)
                                                 HDC-305-60  HAND CRANK        59 /16"       800 lb.      485
                                                                                 11
                                                 HDC-305-72  PULL CHAIN         71¼"         800 lb.      487
                                                 HDC-305-84  PULL CHAIN         80 /8"       800 lb.      687
                                                                                 5
                                                 HDC-305-96  PULL CHAIN        97 /16"       800 lb.      708
                                                                                 9
                                                 LIFT OPTIONS
                                                 HDC-DC      ONE (1) 12V DC POWER UNIT                     96
                                                 HDC-AC      115V AC POWER UNIT                            36
                                    model HDC-305-96
                                                 HDC-AIR     AIR/OIL OPERATED POWER UNIT                   36
                                                 ROTATION OPTIONS
                                                 HDC-R-DC    DC POWER - TWO (2) 12V BATTERIES             280
                                                 HDC-R-HC    HAND CRANK (IN PLACE OF PULL CHAIN)           --
                                                DRUMS MUST BE FULL TO ROTATE AT RATED CAPACITY
                                                Hydraulic Drum Stackers
                                                Stackers are perfect for positioning 55 gallon steel drums horizontally on shelves. The solid
                                                steel construction provides stability during transit. Drums are held in place with a ratchet
                                                mechanism. Fully loaded drums rotate 360°. Unit rolls easily on two (2) 8" x 2" glass-filled
                                                nylon rigid casters and two (2) 5" x 2" swivel poly-on-steel casters. Comes standard with
                                                hydraulic foot pump. Optional power units available.
                                                    MODEL        DRUM ROTATION      LIFT      UNIFORM     WEIGHT
                                                    NUMBER          METHOD         HEIGHT     CAPACITY   (POUND)
                                                 HDC-450-60      HAND CRANK         60"        800 lb.     745
                                                 HDC-450-72       PULL CHAIN        72"        800 lb.     659
                                                 HDC-450-84       PULL CHAIN        84"        800 lb.     709
                                                 HDC-450-96       PULL CHAIN        96"        800 lb.     877
                                                 LIFT OPTIONS
                                                 HDC-DC       ONE (1) 12V DC POWER UNIT                    96
                                                 HDC-AC       115V AC POWER UNIT                           36
                                                 HDC-AIR      AIR/OIL OPERATED POWER UNIT                  36
            model HDC-450-72                     ROTATION OPTIONS
                                                 HDC-R-DC     DC POWER - TWO (2) 12V BATTERIES             280
                                                 HDC-R-HC     HAND CRANK (IN PLACE OF PULL CHAIN)          --
