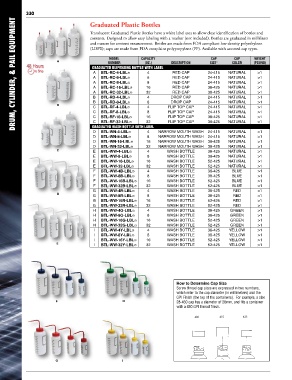

Page 52 - Drum Handling Equipment & Specialty Containers

330
DRUM, CYLINDER, & PAIL EQUIPMENT
Graduated Plastic Bottles

Translucent Graduated Plastic Bottles have a white label area to allow clear identification of bottles and
contents. Designed to allow easy labeling with a marker (not included). Bottles are graduated in milliliters
and ounces for content measurement. Bottles are made from FDA compliant low density polyethylene
(LDPE); caps are made from FDA complaint polypropylene (PP). Available with assorted cap types.
MODEL CAPACITY CAP CAP WEIGHT
A
NUMBER (OZ.) DESCRIPTION SIZE* COLOR (POUND)
GRADUATED DISPENSING BOTTLE WITH LABEL
A BTL-RC-4-LBL 4 RED CAP 24-415 NATURAL >1
A BTL-RC-6-LBL 6 RED CAP 24-415 NATURAL >1
A BTL-RC-8-LBL 8 RED CAP 24-415 NATURAL >1
A BTL-RC-16-LBL 16 RED CAP 38-425 NATURAL >1
A BTL-RC-32-LBL 32 RED CAP 38-425 NATURAL >1
B BTL-RD-4-LBL 4 DROP CAP 24-415 NATURAL >1
B BTL-RD-8-LBL 8 DROP CAP 24-415 NATURAL >1
B
C BTL-RF-4-LBL 4 FLIP TOP CAP 24-415 NATURAL >1
C BTL-RF-8-LBL 8 FLIP TOP CAP 24-415 NATURAL >1
C BTL-RF-16-LBL 16 FLIP TOP CAP 38-425 NATURAL >1
C BTL-RF-32-LBL 32 FLIP TOP CAP 38-425 NATURAL >1
GRADUATED WASH BOTTLE WITH LABEL
D BTL-WN-4-LBL 4 NARROW MOUTH WASH 24-415 NATURAL >1
D BTL-WN-8-LBL 8 NARROW MOUTH WASH 24-415 NATURAL >1
D BTL-WN-16-LBL 16 NARROW MOUTH WASH 38-425 NATURAL >1
D BTL-WN-32-LBL 32 NARROW MOUTH WASH 38-425 NATURAL >1
C E BTL-WW-4-LBL 4 WASH BOTTLE 38-425 NATURAL >1
E BTL-WW-8-LBL 8 WASH BOTTLE 38-425 NATURAL >1
E BTL-WW-16-LBL 16 WASH BOTTLE 52-425 NATURAL >1
E BTL-WW-32-LBL 32 WASH BOTTLE 52-425 NATURAL >1
F BTL-WW-4B-LBL 4 WASH BOTTLE 38-425 BLUE >1
F BTL-WW-8B-LBL 8 WASH BOTTLE 38-425 BLUE >1
F BTL-WW-16B-LBL 16 WASH BOTTLE 52-425 BLUE >1
F BTL-WW-32B-LBL 32 WASH BOTTLE 52-425 BLUE >1
G BTL-WW-4R-LBL 4 WASH BOTTLE 38-425 RED >1
D
G BTL-WW-8R-LBL 8 WASH BOTTLE 38-425 RED >1
G BTL-WW-16R-LBL 16 WASH BOTTLE 52-425 RED >1
G BTL-WW-32R-LBL 32 WASH BOTTLE 52-425 RED >1
H BTL-WW-4G-LBL 4 WASH BOTTLE 38-425 GREEN >1
H BTL-WW-8G-LBL 8 WASH BOTTLE 38-425 GREEN >1
H BTL-WW-16G-LBL 16 WASH BOTTLE 52-425 GREEN >1
H BTL-WW-32G-LBL 32 WASH BOTTLE 52-425 GREEN >1
I BTL-WW-4Y-LBL 4 WASH BOTTLE 38-425 YELLOW >1
I BTL-WW-8Y-LBL 8 WASH BOTTLE 38-425 YELLOW >1
I BTL-WW-16Y-LBL 16 WASH BOTTLE 52-425 YELLOW >1
E I BTL-WW-32Y-LBL 32 WASH BOTTLE 52-425 YELLOW >1

How to Determine Cap Size
Screw thread cap sizes are expressed in two numbers,
which refer to the cap diameter (in millimeters) and the
GPI Finish (the top of the containers). For example, a size
F H 28-430 cap has a diameter of 28mm, and fits a container
with a 430 GPI thread finish.

G I
