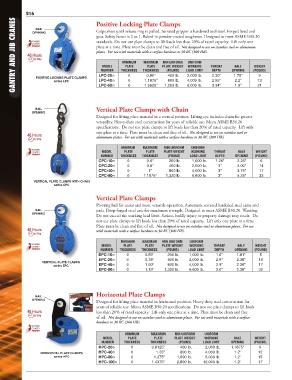

Page 16 - Gantry & Jib Cranes
P. 16

216 OPENING                  Positive Locking Plate Clamps
       GANTRY AND JIB CRANES  POSITIVE LOCKING PLATE CLAMPS  gear. Safety factor is 2 to 1. Baked-in powder-coated toughness. Designed to meet ASME B30.20  9

                BAIL
                                         Grips sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and
                                         standards. Do not use plate clamps to lift loads less than 20% of rated capacity.  Lift only one
                                         plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum
                                         plates.  For use with materials with a surface hardness to 30 RC (300 HB).

                                                    MINIMUM
                                                            MAXIMUM
                                                                               UNIFORM
                                                                    MIN UNIFORM
                                                                                                          WEIGHT
                                                                                                  BALE
                                                                    PLATE WEIGHT
                                                              PLATE
                                                                                        THROAT
                                                     PLATE
                                                                               WORKING
                                           MODEL
                                                   THICKNESS
                                                                                        DEPTH
                                                                                                          (POUND)
                                                                              LOAD LIMIT
                                           NUMBER
                                                            THICKNESS
                                                                                                 OPENING
                                                                      (POUND)
                                                      0
                                                                                         2.30"
                                                              0.80"
                                                                                                  1.75"
                                                                      400 lb.
                                                                              2,000 lb.
                                          LPC-20�
                                                                              4,000 lb.
                                                                                                  2.2"
                                                      0
                                                                      800 lb.
                                                                                         2.95"
                                                                                                           13
                                                             1.1875"
                                          LPC-40�
                       series LPC
                                                                     1,200 lb.
                                                      0
                                                             1.5625"
                                          LPC-60�
                BAIL                     Vertical Plate Clamps with Chain     6,000 lb.  3.34"    1.9"     21
              OPENING
                                         Designed for lifting plate material in a vertical position. Lifting eye includes chain for greater
                                         versatility. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20
                                         specifications.  Do not use plate clamps to lift loads less than 20% of rated capacity.  Lift only
                                         one plate at a time. Plate must be clean and free of oil.  Not designed to use on stainless steel or
                                         aluminum plates.  For use with materials with a surface hardness to 30 RC (300 HB).
                                                   MINIMUM  MAXIMUM  MIN UNIFORM  UNIFORM
                                           MODEL    PLATE    PLATE   PLATE WEIGHT  WORKING   THROAT  BALE  WEIGHT
                                           NUMBER  THICKNESS  THICKNESS  (POUND)  LOAD LIMIT  DEPTH  OPENING  (POUND)
                                          CPC-10�     0       0.6"     200 lb.  1,000 lb.  1.25"   2.25"    6
                                          CPC-20�     0       0.8"     400 lb.  2,000 lb.  3"      3.00"    14
                                          CPC-40�     0       1"       800 lb.  4,000 lb.  3"      3.75"    17
                                          CPC-80�     0     1.1875"  1,320 lb.  6,600 lb.  3"      5.25"    33
               VERTICAL PLATE CLAMPS WITH CHAIN
                       series CPC
                                         Vertical Plate Clamps
                                         Pivoting bail for easier and more versatile operation. Automatic serrated hardened steel cams and
                BAIL                     pads. Drop-forged steel case for maximum strength. Designed to meet ASME B30.20. Warning:
              OPENING
                                         Do not exceed the working load limit. Serious bodily injury or property damage may result.  Do
                                         not use plate clamps to lift loads less than 20% of rated capacity.  Lift only one plate at a time.
                                         Plate must be clean and free of oil.  Not designed to use on stainless steel or aluminum plates.  For use
                                         with materials with a surface hardness to 30 RC (300 HB).
                                                   MINIMUM  MAXIMUM  MIN UNIFORM  UNIFORM
                                           MODEL    PLATE    PLATE  PLATE WEIGHT  WORKING  THROAT  BALE   WEIGHT
                                          NUMBER   THICKNESS  THICKNESS  (POUND)  LOAD LIMIT  DEPTH  OPENING  (POUND)
                                          EPC-10�    0       0.59"    200 lb.  1,000 lb.  1.6"     1.81"    5
                                          EPC-20�    0       0.78"    400 lb.  2,000 lb.  2.9"     2.38"    16
                  VERTICAL PLATE CLAMPS
                       series EPC         EPC-40�    0       1.00"    800 lb.  4,000 lb.  2.9"     2.38"    17
                                          EPC-80�    0       1.19"   1,320 lb.  6,600 lb.  3.0"    2.38"    32
                                         Horizontal Plate Clamps
                BAIL
              OPENING                    Designed for lifting plate material in horizontal position. Heavy-duty steel construction for
                                         years of reliable use. Meets ASME B30.20 specifications.  Do not use plate clamps to lift loads
                                         less than 20% of rated capacity.  Lift only one plate at a time. Plate must be clean and free
                                         of oil.  Not designed to use on stainless steel or aluminum plates.  For use with materials with a surface
                                         hardness to 30 RC (300 HB).
                                                     MINIMUM   MAXIMUM   MIN UNIFORM  UNIFORM
                                           MODEL      PLATE      PLATE   PLATE WEIGHT  WORKING    BALE    WEIGHT
                                           NUMBER   THICKNESS  THICKNESS   (POUND)   LOAD LIMIT  OPENING  (POUND)
                                          HPC-20�      0        0.8125"    400 lb.    2,000 lb.  1.1875"    9
                  HORIZONTAL PLATE CLAMPS  HPC-40�     0         1.25"     800 lb.    4,000 lb.   1.2"      12
                       series HPC         HPC-80�      0         1.375"   1,600 lb.   8,000 lb.   1.2"      15
                                          HPC-100�     0        1.4375"   2,800 lb.  10,000 lb.   1.2"      17
