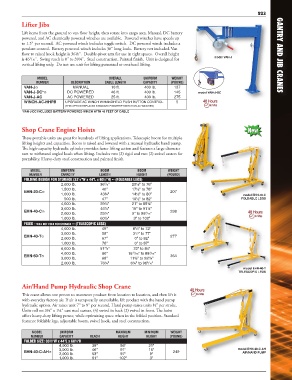

Page 23 - Gantry & Jib Cranes

223
Lifter Jibs

Lift items from the ground to van floor height, then rotate into cargo area. Manual, DC battery
powered, and AC electrically powered winches are available. Powered winches have speeds up
to 1.5" per second. AC powered winch includes toggle switch. DC powered winch includes a
pendant control. Battery powered winch includes 36" long leads. Battery not included. Van
floor to raised hook height is 36⅛". Double-pivot arm for use in tight spaces. Overall height GANTRY AND JIB CRANES
is 46 /16". Swing reach is 0" to 39¾". Steel construction. Painted finish. Unit is designed for model VAN-J
1
vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

MODEL OVERALL UNIFORM WEIGHT
NUMBER DESCRIPTION CABLE LENGTH CAPACITY (POUND)
VAN-J� MANUAL 10 ft. 400 lb. 137
VAN-J-DC*� DC POWERED 46 ft. 400 lb. 145 model VAN-J-DC
VAN-J-AC AC POWERED 25 ft. 400 lb. 275
WINCH-AC-HHPB UPGRADE AC WINCH W/HANDHELD PUSH BUTTON CONTROL 5
(THIS OPTION REPLACES STANDARD FINGERTIP SWITCH ON AC WINCHES)
*VAN-J-DC INCLUDES BATTERY-POWERED WINCH WITH 46 FEET OF CABLE

Shop Crane Engine Hoists New

These portable units are great for hundreds of lifting applications. Telescopic boom for multiple
lifting heights and capacities. Boom is raised and lowered with a manual hydraulic hand pump.
The high-capacity hydraulic cylinder provides faster lifting action and features a large diameter
ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for
portability. Heavy-duty steel construction and painted finish.

MODEL UNIFORM BOOM BOOM WEIGHT
NUMBER CAPACITY LENGTH HEIGHT (POUND)
FOLDING DESIGN FOR STORAGE (33½"W x 44"L x 60½"H) -- (FOLDABLE LEGS)
5
2,000 lb. 36 /8" 20½" to 76"
1,500 lb. 40" 17½" to 78"
EHN-20-C� 207
1,000 lb. 43¾" 14½" to 80" model EHN-40-C
500 lb. 47" 10½" to 82" FOLDABLE LEGS
4,000 lb. 39¼" 21" to 85¾"
3,000 lb. 46¼" 15" to 91¼"
EHN-40-C� 238
9
2,000 lb. 53¼" 9" to 96 /16"
1,000 lb. 60½" 3" to 102"
FIXED - WILL NOT FOLD FOR STORAGE -- (TELESCOPIC LEGS)
4,000 lb. 49" 8 /8" to 72"
7
1
3,000 lb. 58" 3 /2" to 77"
EHN-40-T� 277
2,000 lb. 67" 0" to 82"
1,000 lb. 76" 0" to 87"
7
6,000 lb. 51 /8" 22" to 84"
4,000 lb. 60" 16 /16" to 88 /16"
11
3
EHN-60-T� 354
3,000 lb. 68" 11½" to 92 /8"
3
9
2,000 lb. 76¼" 6¼" to 96 /16"
model EHN-40-T
TELESCOPIC LEGS
Air/Hand Pump Hydraulic Shop Crane
This crane allows one person to maneuver product from location to location, and then lift it
with everyday factory air. If air is temporarily unavailable, lift product with the hand pump
hydraulic option. Air raises unit 7" to 8" per second. Hand pump raises units ½" per stroke.
Units roll on 3½" x 1¼" cast steel casters, (4) swivel in back (2) swivel in front. The hoist
offers heavy-duty lifting power, while optimizing space when in the folded position. Standard
features: foldable legs, adjustable boom, swivel hook, and steel construction.
MODEL UNIFORM MAXIMUM MINIMUM WEIGHT
NUMBER CAPACITY REACH HEIGHT HEIGHT (POUND)
FOLDED SIZE: 33½"W x 44"L x 60½"H
4,000 lb. 39" 86" 21"
3,000 lb. 46" 91" 15" model EHN-40-C-AH
EHN-40-C-AH� 249 AIR/HAND PUMP
2,000 lb. 53" 97" 9"
1,000 lb. 61" 102" 3"
