P. 19

247

           CUSTOMER INFORMATION

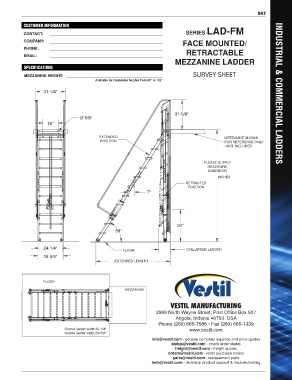

           CONTACT:                                                           SERIES LAD-FM
           COMPANY:                                                         FACE MOUNTED/
           PHONE:
           EMAIL:                                                             RETRACTABLE
                                                                         MEZZANINE LADDER
           SPECIFICATIONS
           MEZZANINE HEIGHT:                                                     SURVEY SHEET
                                        Available for mezzanine heights from 60" to 132"

                   31-1/4"                                                                                         INDUSTRIAL & COMMERCIAL LADDERS




                                                                         31-5/8"
                                  Ø 5/8"
                     16"


                                          EXTENDED                                            MEZZANINE SHOWN
                                          POSITION                                            FOR REFERENCE ONLY
                                                                                              - NOT INCLUDED



                                                                                     PLEASE SUPPLY
                                                                                       MEZZANINE
                                                                                       DIMENSION
                                                                                     _______INCHES
                                                                              RETRACTED
                                                                               POSITION
                                                              7"







                                                                          34"
                                                 58°



                   24-1/4"                                                    COLLAPSED LENGTH
                                                    FLOOR
                   26-3/4"
                                                EXTENDED LENGTH



                   FLOOR
                                                     MEZZANINE


                                                                       VESTIL MANUFACTURING
                                                                 2999 North Wayne Street, Post Office Box 507
                                                                          Angola, Indiana 46703  USA
                                                                  Phone (260) 665-7586 • Fax (260) 665-1339
                            Overall ladder width 32-1/4"                       www.vestil.com
                            Usable ladder width 23-5/8"
