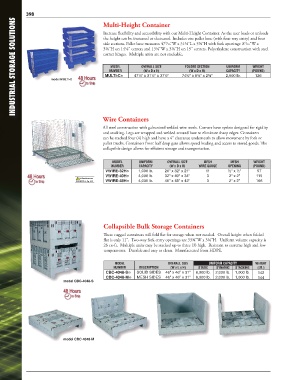

Page 24 - Storage Solutions

398
INDUSTRIAL STORAGE SOLUTIONS
Multi-Height Container

Increase flexibility and accessibility with our Multi-Height Container. As the user loads or unloads
the height can be increased or decreased. Includes one pallet base (with four way entry) and four
side sections. Pallet base measures 47 /16"W x 31⅜"L x 5⅞"H with fork openings: 8 /16"W x
5
3
3⅞"H on 14⅛" centers and 13⅛"W x 3⅞"H on 19" centers. Polyethylene construction with steel
corner hinges. Multiple units are not stackable.

MODEL OVERALL SIZE FOLDED SECTION UNIFORM WEIGHT
NUMBER (W x D x H) (W x D x H) CAPACITY (POUND)
MULTI-C� 47¼" x 31½" x 37½" 74½" x 8¾" x 2¾" 2,500 lb. 126
model MULTI-C

Wire Containers
All steel construction with galvanized welded wire mesh. Corners have eyelets designed for rigidity
and stacking. Legs are wrapped and welded around base to eliminate sharp edges. Containers
can be stacked four (4) high and have a 4" clearance underneath to allow movement by fork or
pallet trucks. Containers front half drop gate allows speed loading and access to stored goods. The
collapsible design allows for efficient storage and transportation.

MODEL UNIFORM OVERALL SIZE MESH MESH WEIGHT
NUMBER CAPACITY (W x D x H) WIRE GAUGE OPENING (POUND)
VWIRE-32H� 1,000 lb. 20" x 32" x 21" 11 ½" x ½" 57
VWIRE-40H� 4,000 lb. 32" x 40" x 34" 3 2" x 2" 115
CA Residents see
WARNING A, Pg. 459 VWIRE-48H� 4,000 lb. 40" x 48" x 42" 3 2" x 2" 166

Collapsible Bulk Storage Containers

These rugged containers will fold flat for storage when not needed. Overall height when folded
flat is only 11". Two-way fork entry openings are 33¾"W x 3¾"H. Uniform volume capacity is
26 cu-ft. Multiple units may be stacked up to three (3) high. Resistant to extreme high and low
temperatures. Durable and easy to clean. Manufactured from HDPE.

MODEL OVERALL SIZE UNIFORM CAPACITY WEIGHT
NUMBER DESCRIPTION (W x L x H) STATIC DYNAMIC STACKING (LB.)
CBC-4048-S� SOLID SIDES 46" x 46" x 31" 6,000 lb. 2,000 lb. 1,000 lb. 142
CBC-4048-M� MESH SIDES 46" x 46" x 31" 6,000 lb. 2,000 lb. 1,000 lb. 144
model CBC-4048-S

model CBC-4048-M
