Model Details

A-LIFT-CB-HP

Printer Friendly

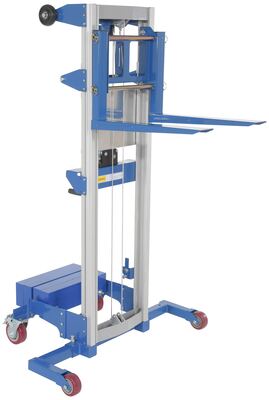

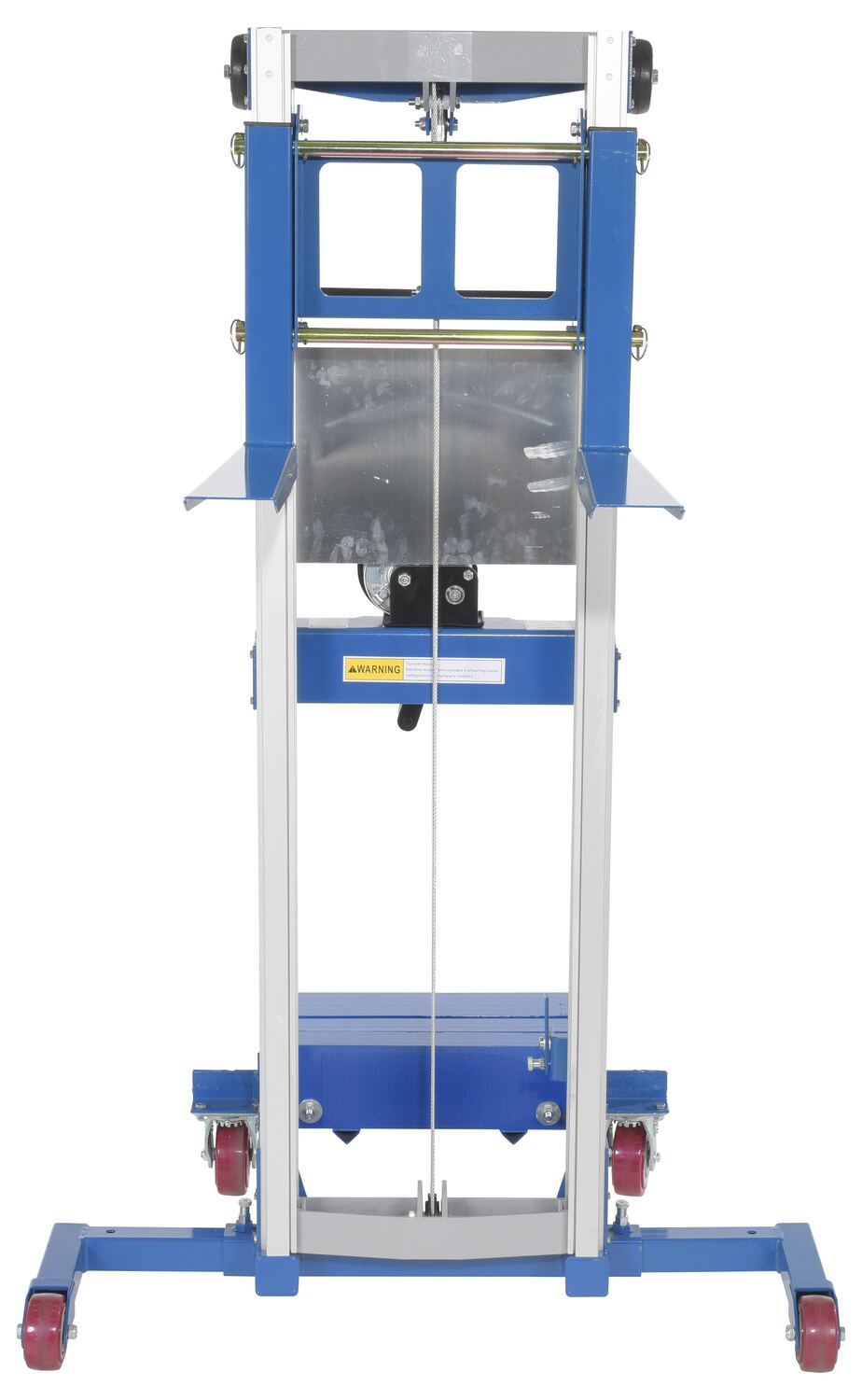

A-LIFT-CB-HP

Aluminum/Steel Winch Lift Truck Counter Balance 400 Lb. Capacity Silver

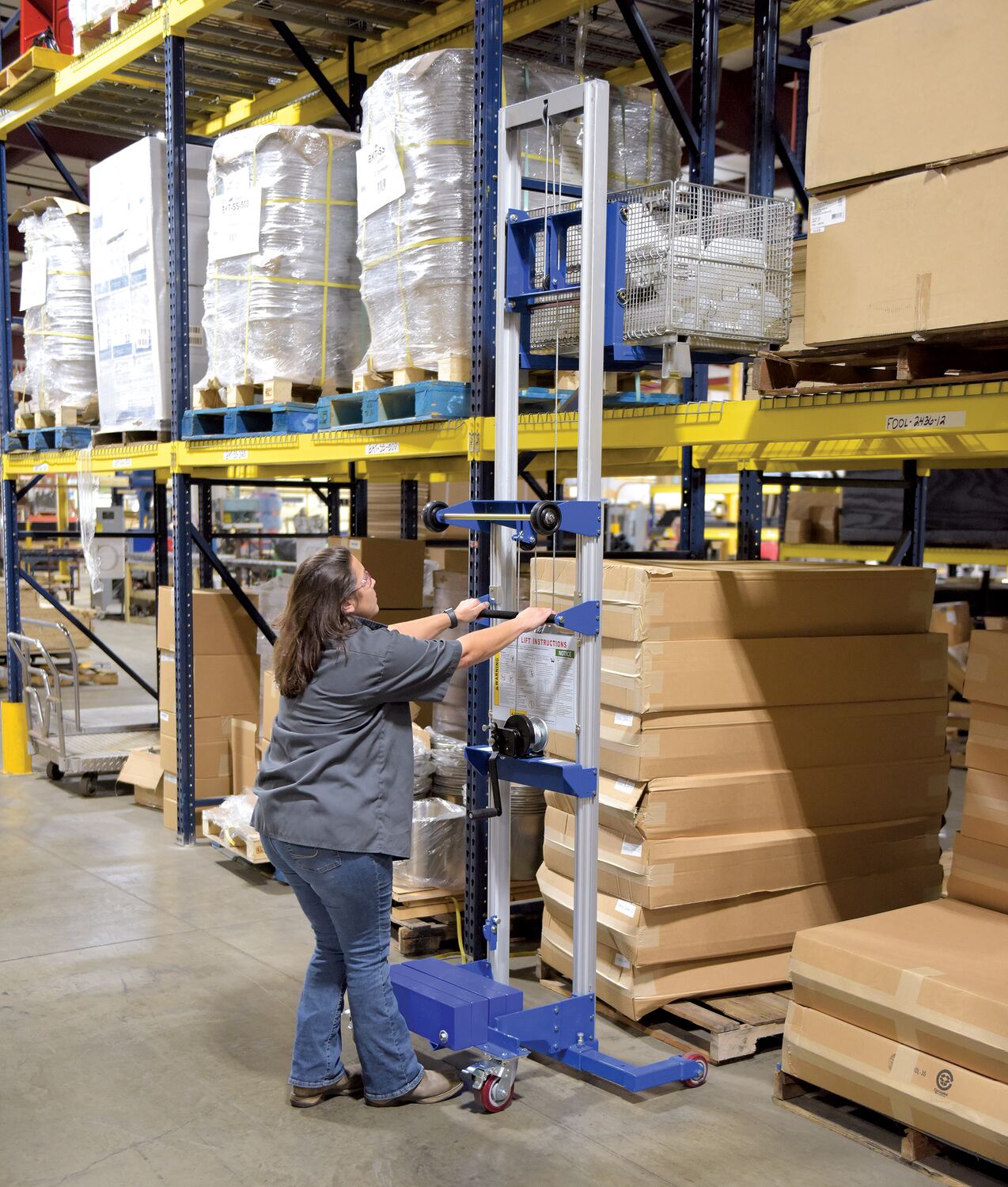

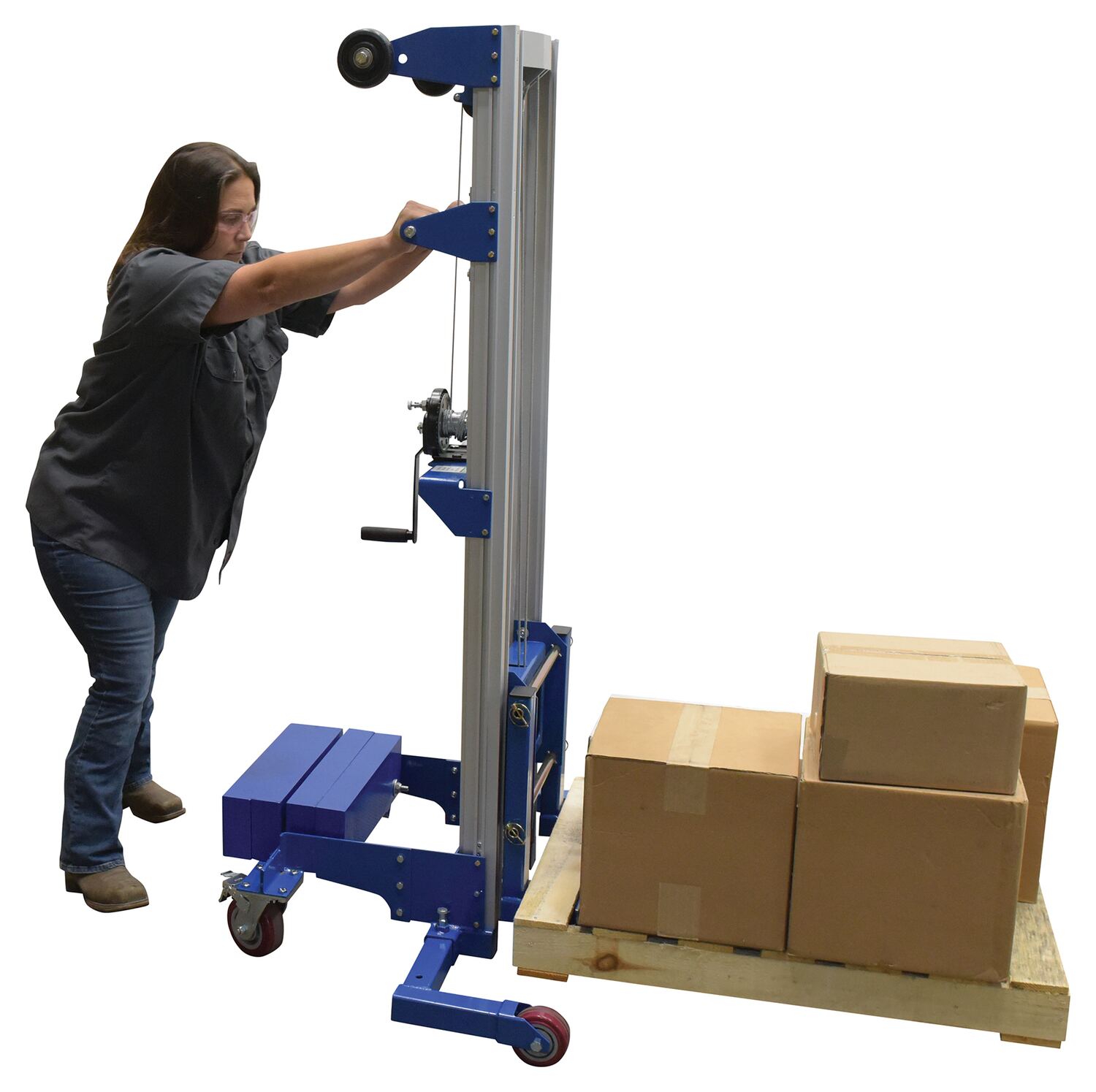

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum and a counterbalance design (counterweight included). Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport. The non-adjustable forks can be inverted to provide different height ranges.

  • Lightweight portable lifts are great for hundreds of applications

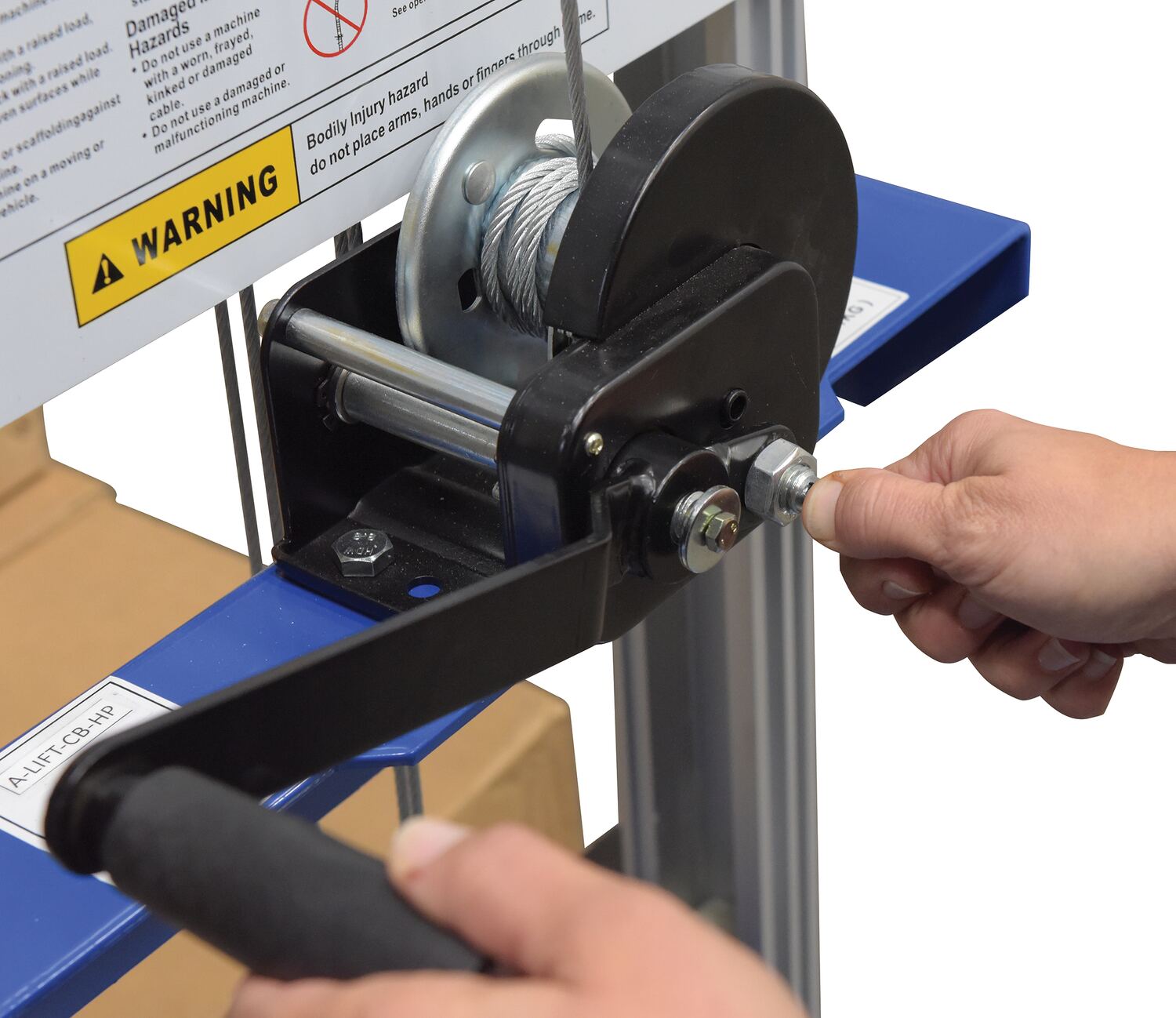

  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport
Total Ship Wt.(lbs.): 445 (only 1 package) Size: 43.25"W x 45.875"L x 67.3125"H Color: Silver QuickShip

Uniform Capacity (lb.): 400 Lowered Height with Forks Down (in.): 2 / 21-1/4 Raised Height with Forks Down (in.): 98-7/16
Raised Height with Forks Up (in.): 120 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-7/8 Fork Raise per Hand Crank Rotation (in.): 1
Rear Wheel Diameter (in.): 5 Rear Wheel Width (in.): 2 Front Wheel Diameter (in.): 4
Front Wheel Width (in.): 2 Wheel Material: Poly-On-Poly Inside Straddle Width (in.): 21-1/2 - 36-1/2
Outside Straddle Width (in.): 28-1/4 - 43-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: A-LIFT-CB-HP
A-LIFT-CB-HP

Aluminum/Steel Winch Lift Truck Counter Balance 400 Lb. Capacity Silver

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum and a counterbalance design (counterweight included). Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport. The non-adjustable forks can be inverted to provide different height ranges.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport
Dimensions: 43.25"W x 45.875"L x 67.3125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215055550 GTIN: 00691215055550
Warranty: -- Shipping Weight: 445 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Lowered Height with Forks Down (in.): 2 / 21-1/4 Raised Height with Forks Down (in.): 98-7/16
Raised Height with Forks Up (in.): 120 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-7/8 Fork Raise per Hand Crank Rotation (in.): 1
Rear Wheel Diameter (in.): 5 Rear Wheel Width (in.): 2 Front Wheel Diameter (in.): 4
Front Wheel Width (in.): 2 Wheel Material: Poly-On-Poly Inside Straddle Width (in.): 21-1/2 - 36-1/2
Outside Straddle Width (in.): 28-1/4 - 43-1/4
