Model Details

A-LIFT-R

Printer Friendly

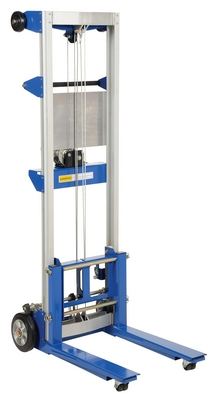

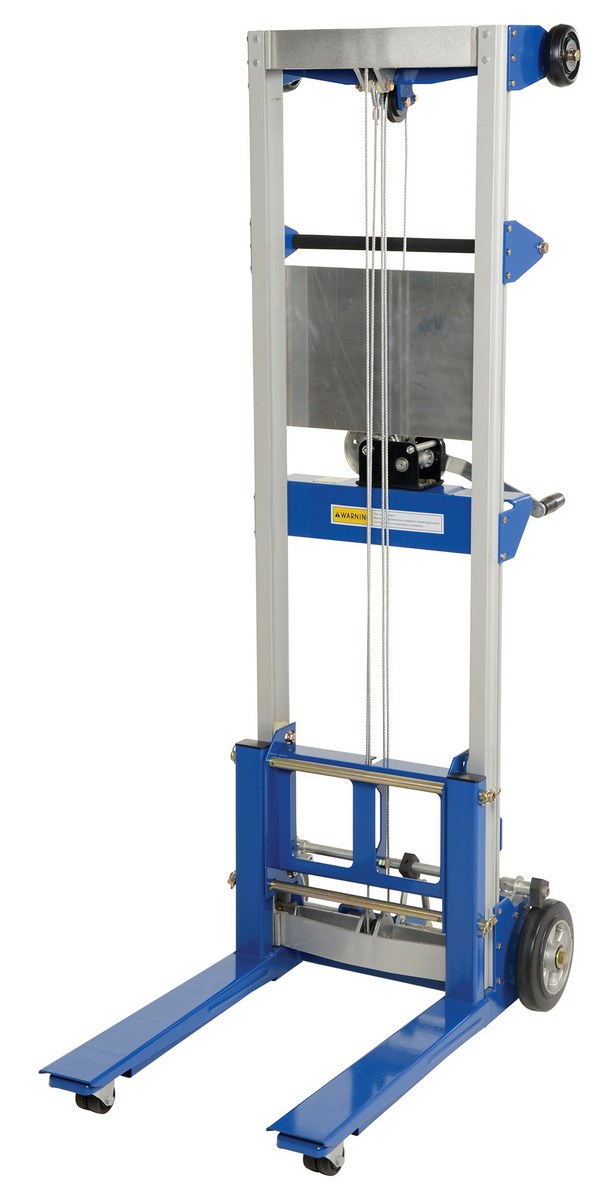

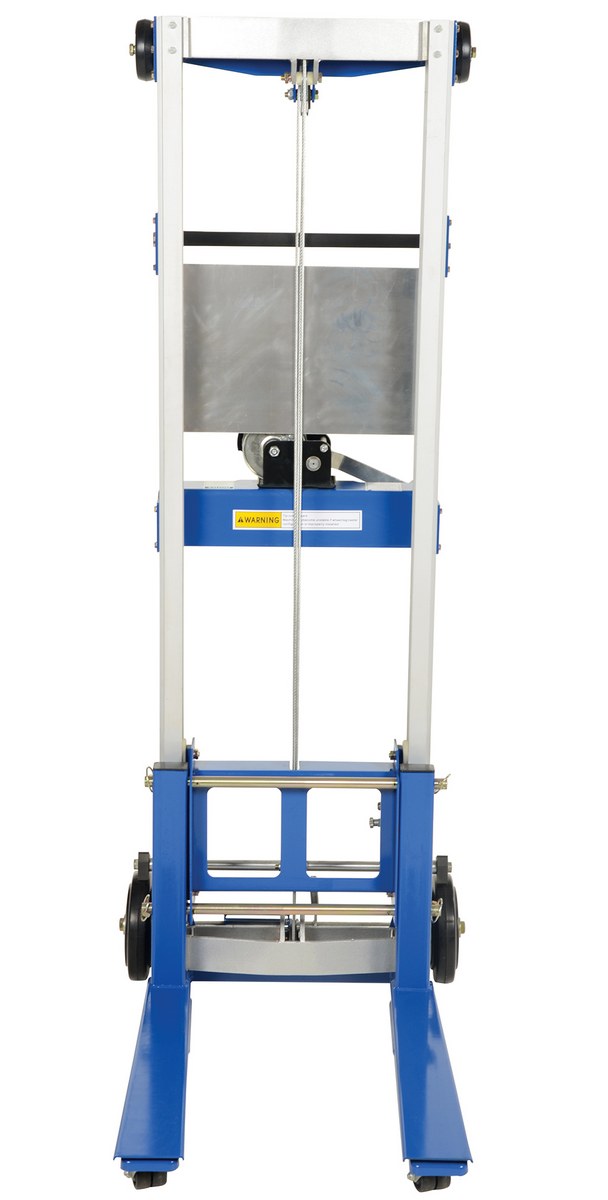

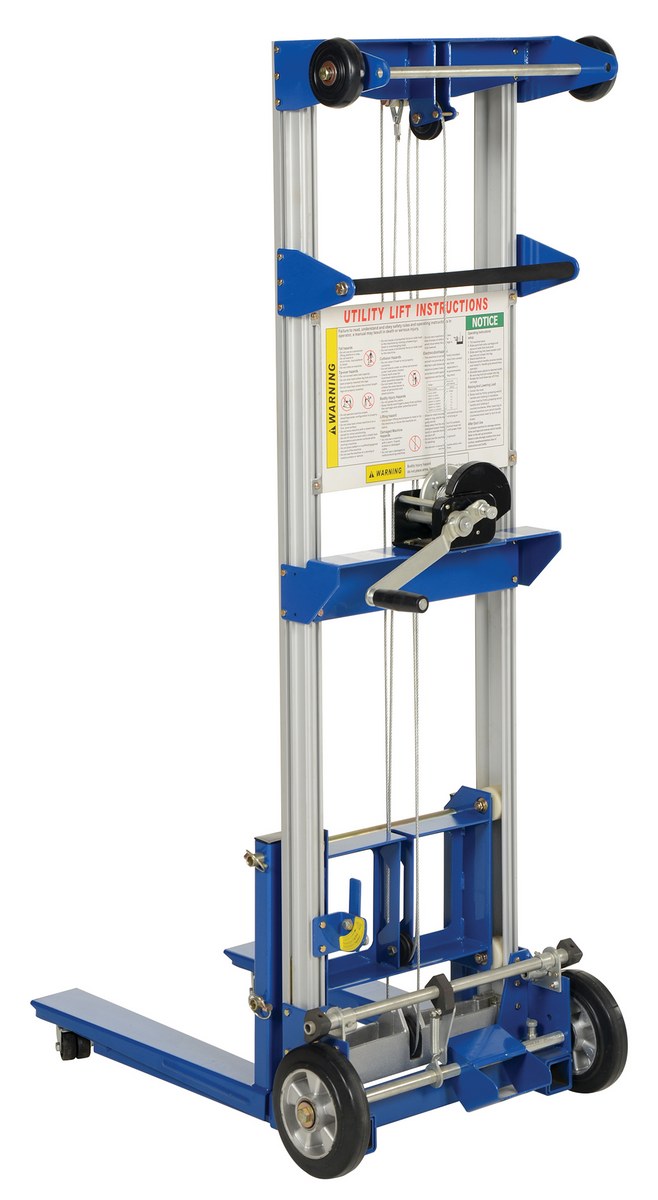

A-LIFT-R

Aluminum/Steel Fixed Straddle Hand Winch Lift Trucks 500 Lb. Capacity Silver

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Invertible forks provide additional height capabilities
  • Hold-down device secures carriage during transport
Total Ship Wt.(lbs.): 191 (only 1 package) Size: 29.375"W x 67.3125"L x 68.75"H Color: Silver 48 Hr. QuickShip

Uniform Capacity (lb.): 500 Lowered Height (in.): 3-1/2 / 23-1/2 Raised Height with Forks Down (in.): 47
Raised Height with Forks Up (in.): 67 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-1/2 Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2 Inside Straddle Width (in.): 12-1/2
Outside Straddle Width (in.): 20-1/2 Design: Standard

Quickship Item?

48-Hour Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: A-LIFT-R
A-LIFT-R

Aluminum/Steel Fixed Straddle Hand Winch Lift Trucks 500 Lb. Capacity Silver

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Invertible forks provide additional height capabilities
  • Hold-down device secures carriage during transport
Dimensions: 29.375"W x 67.3125"L x 68.75"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215002219 GTIN: 00691215002219
Warranty: -- Shipping Weight: 191 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Lowered Height (in.): 3-1/2 / 23-1/2 Raised Height with Forks Down (in.): 47
Raised Height with Forks Up (in.): 67 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-1/2 Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2 Inside Straddle Width (in.): 12-1/2
Outside Straddle Width (in.): 20-1/2 Design: Standard
