A-LIFT-S-EHP

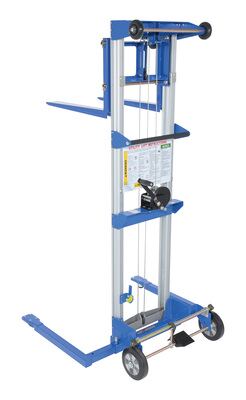

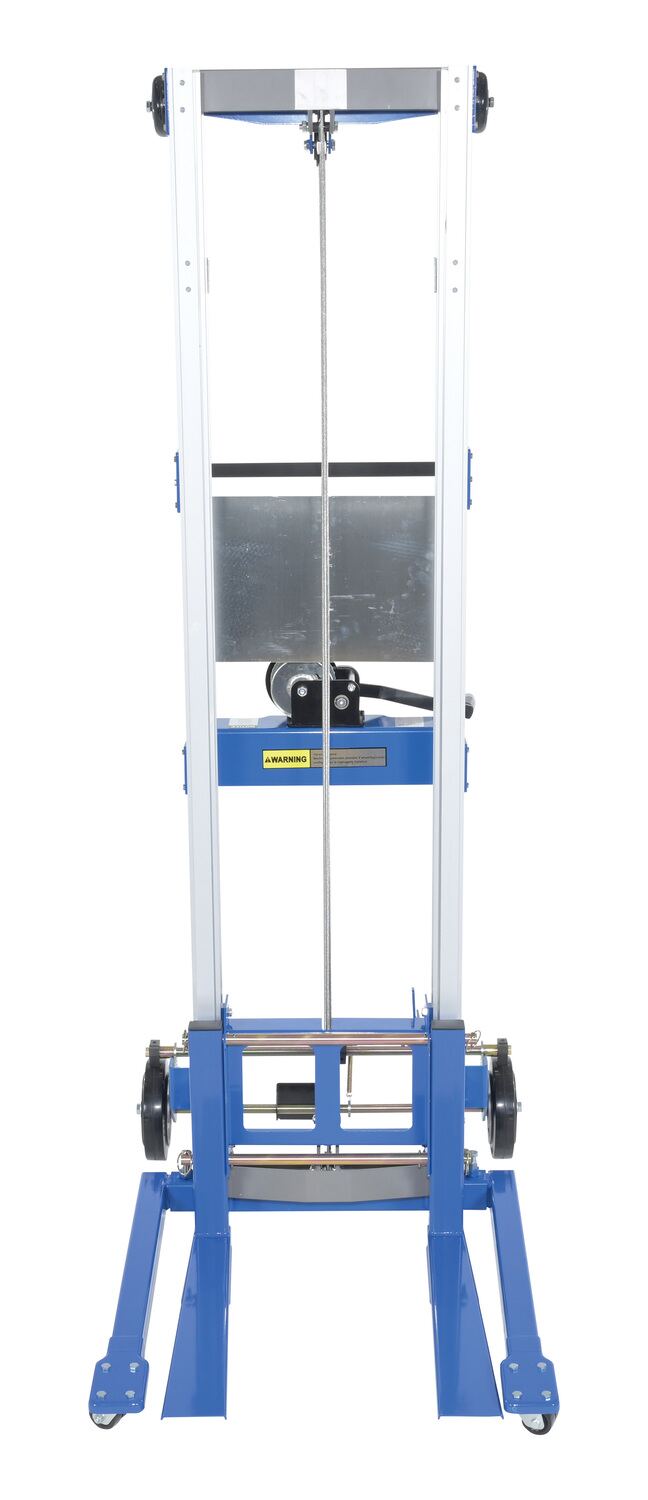

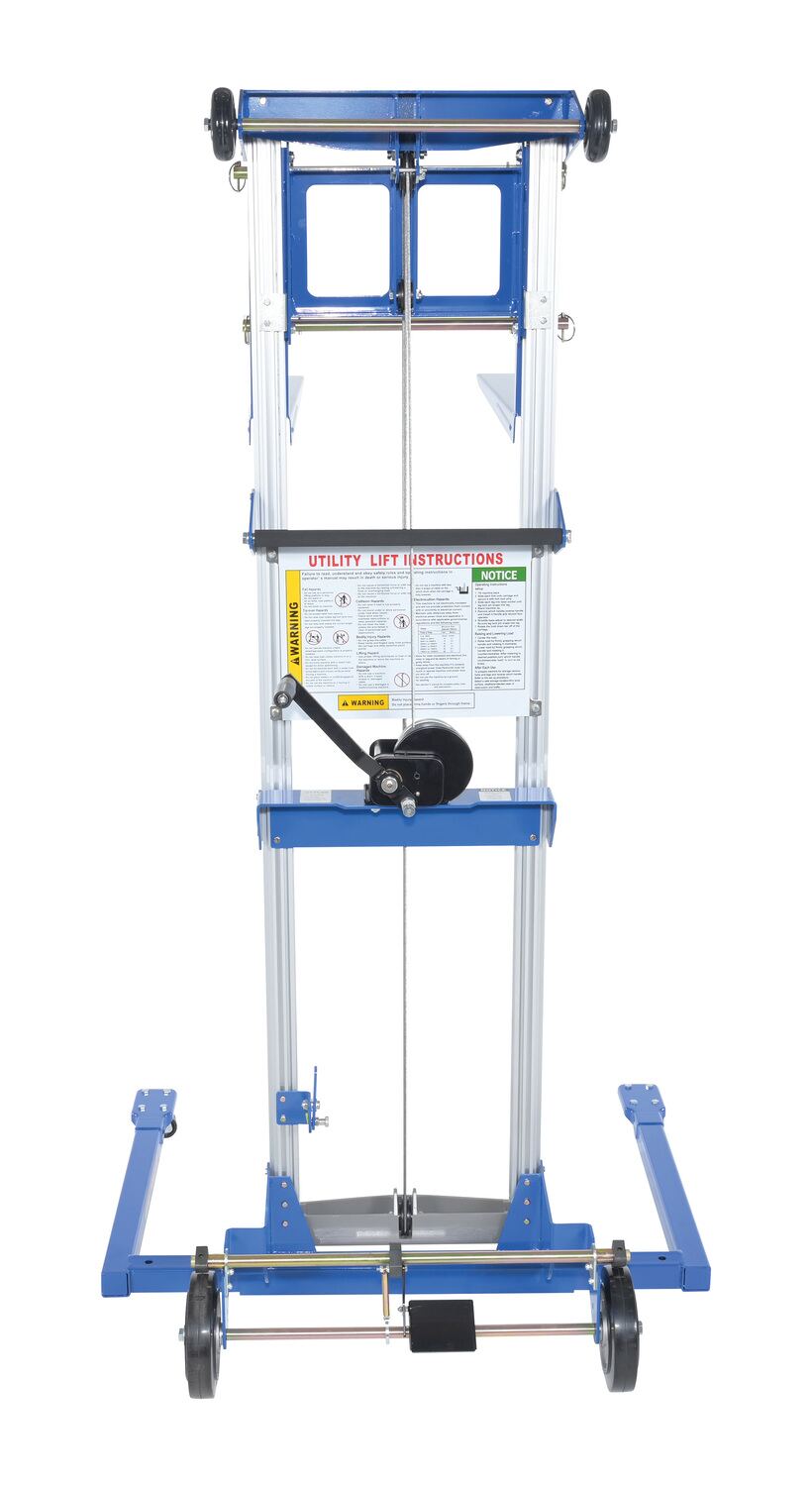

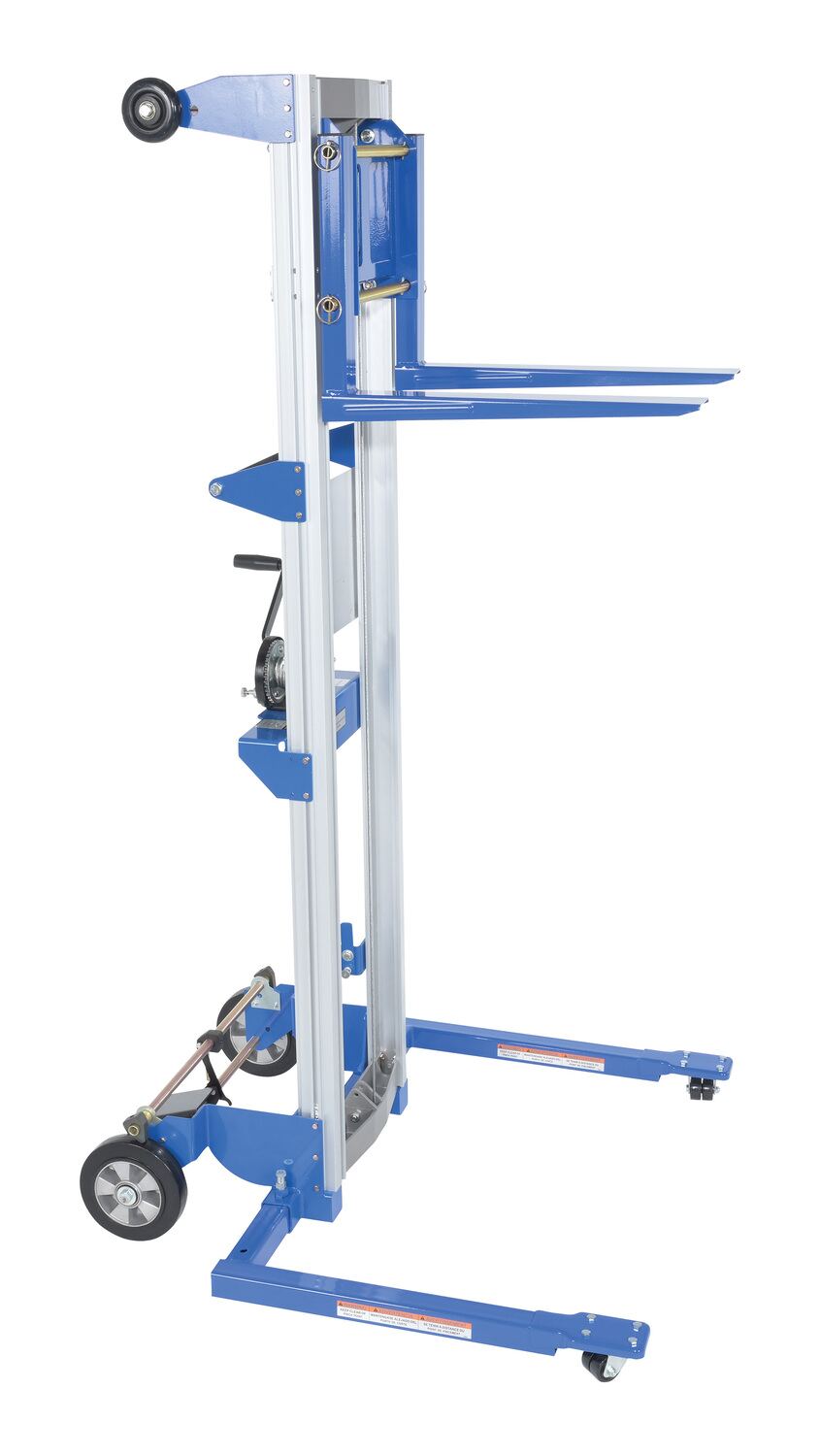

Aluminum/Steel Adjustable Straddle Hand Winch Lift Trucks 350 Lb. Capacity Silver

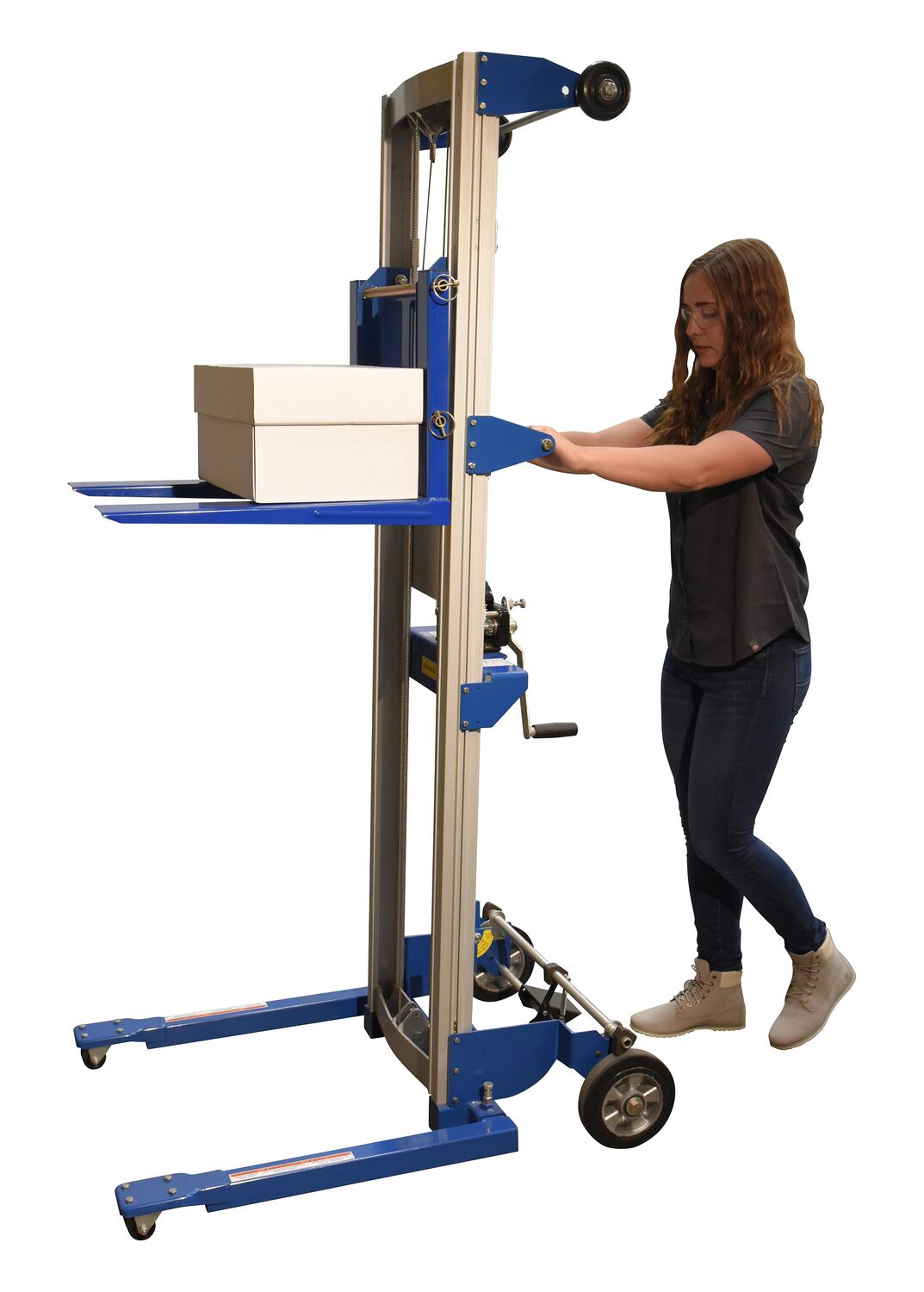

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications

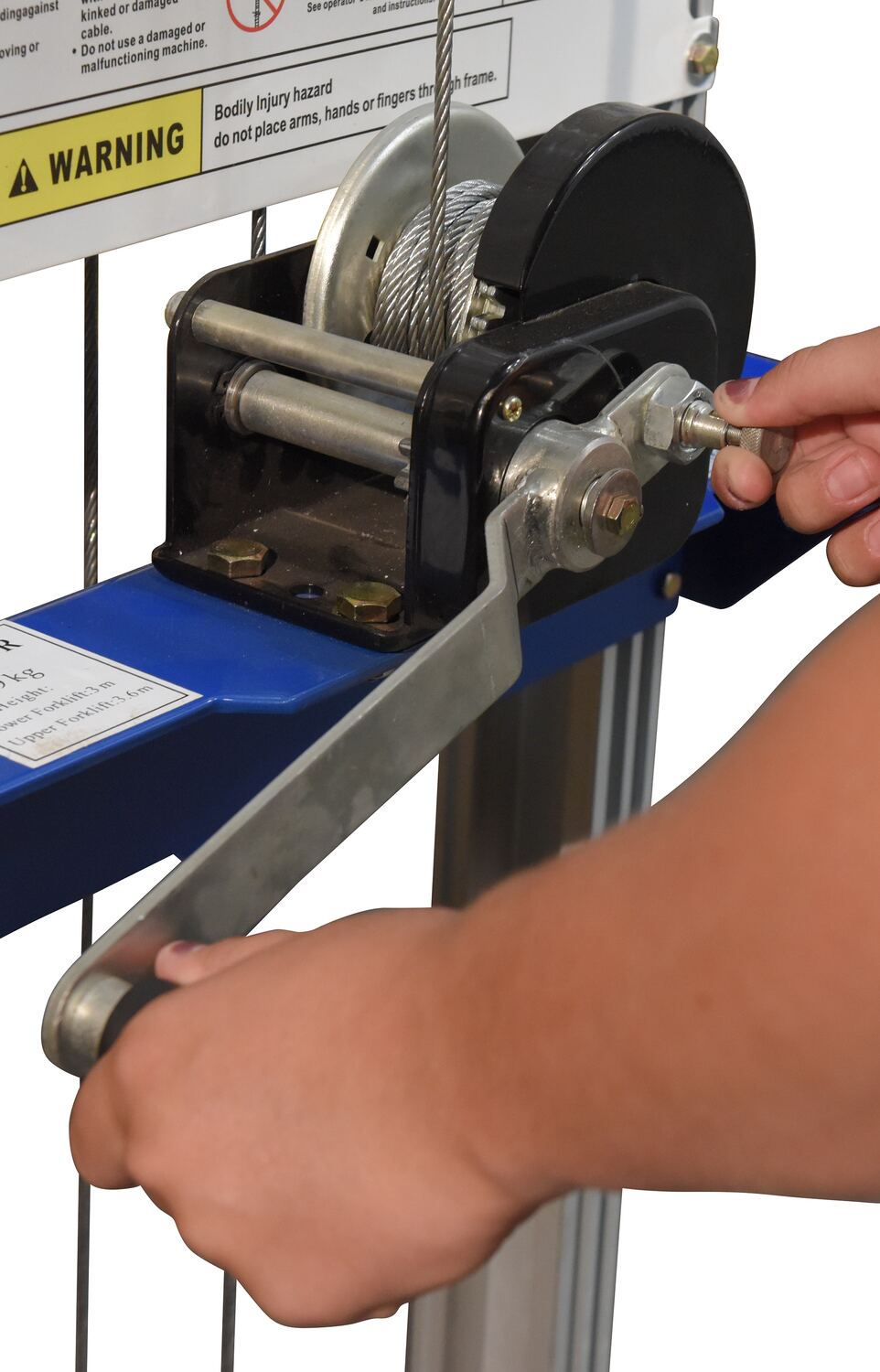

  • Manual cable winch easily raises and lowers forks

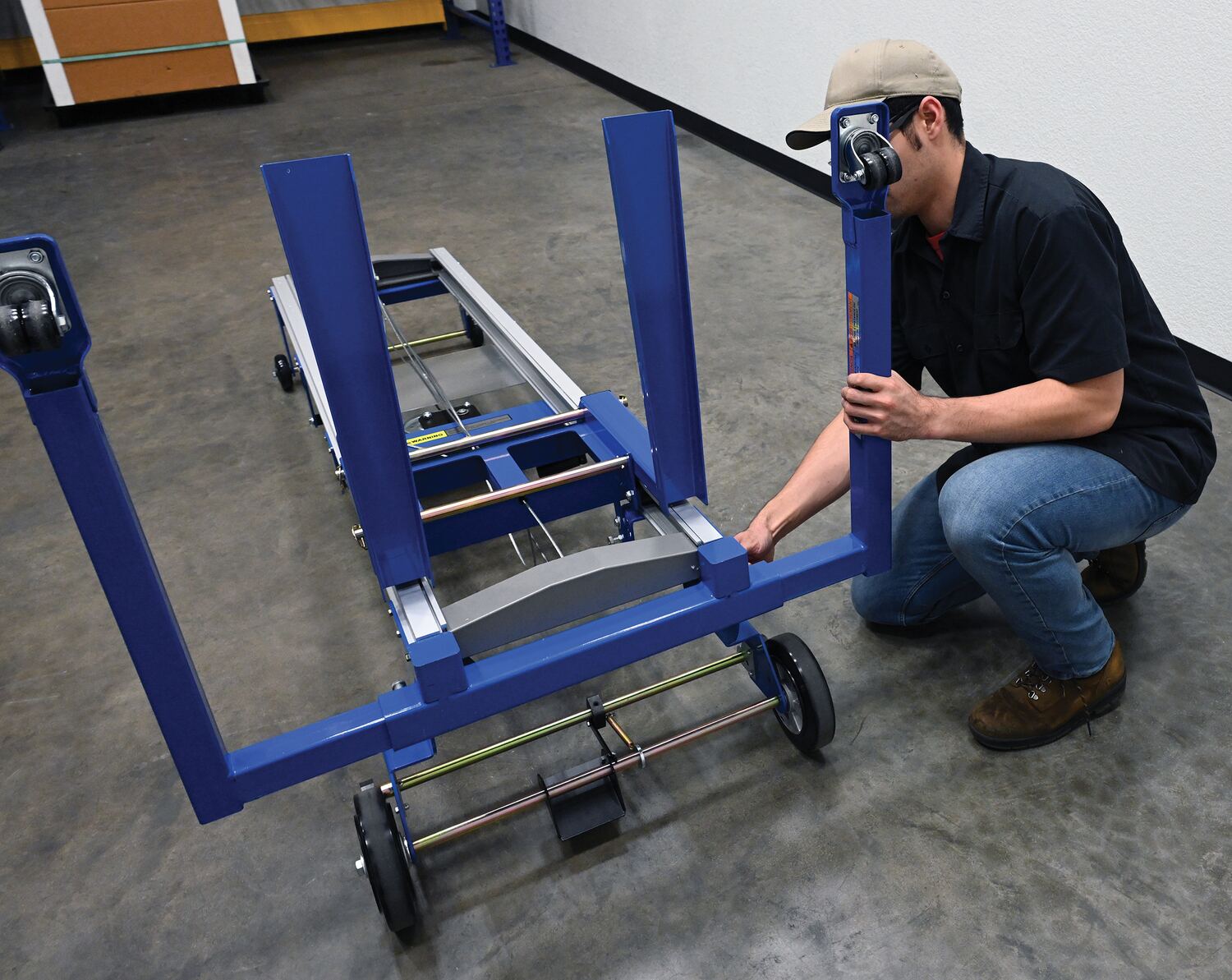

  • Adjustable straddle width for varying load sizes

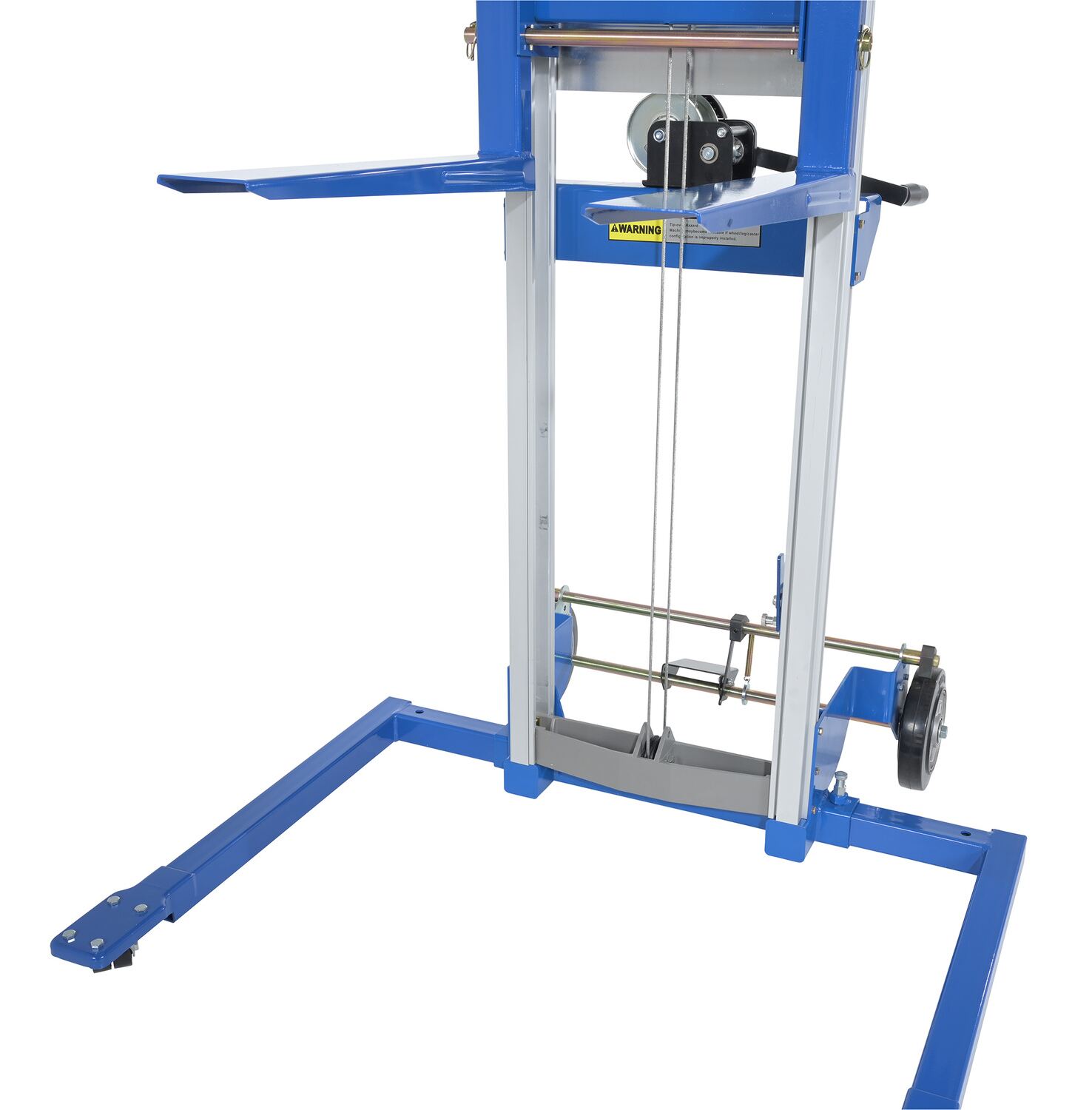

  • Hold-down device secures carriage during transport

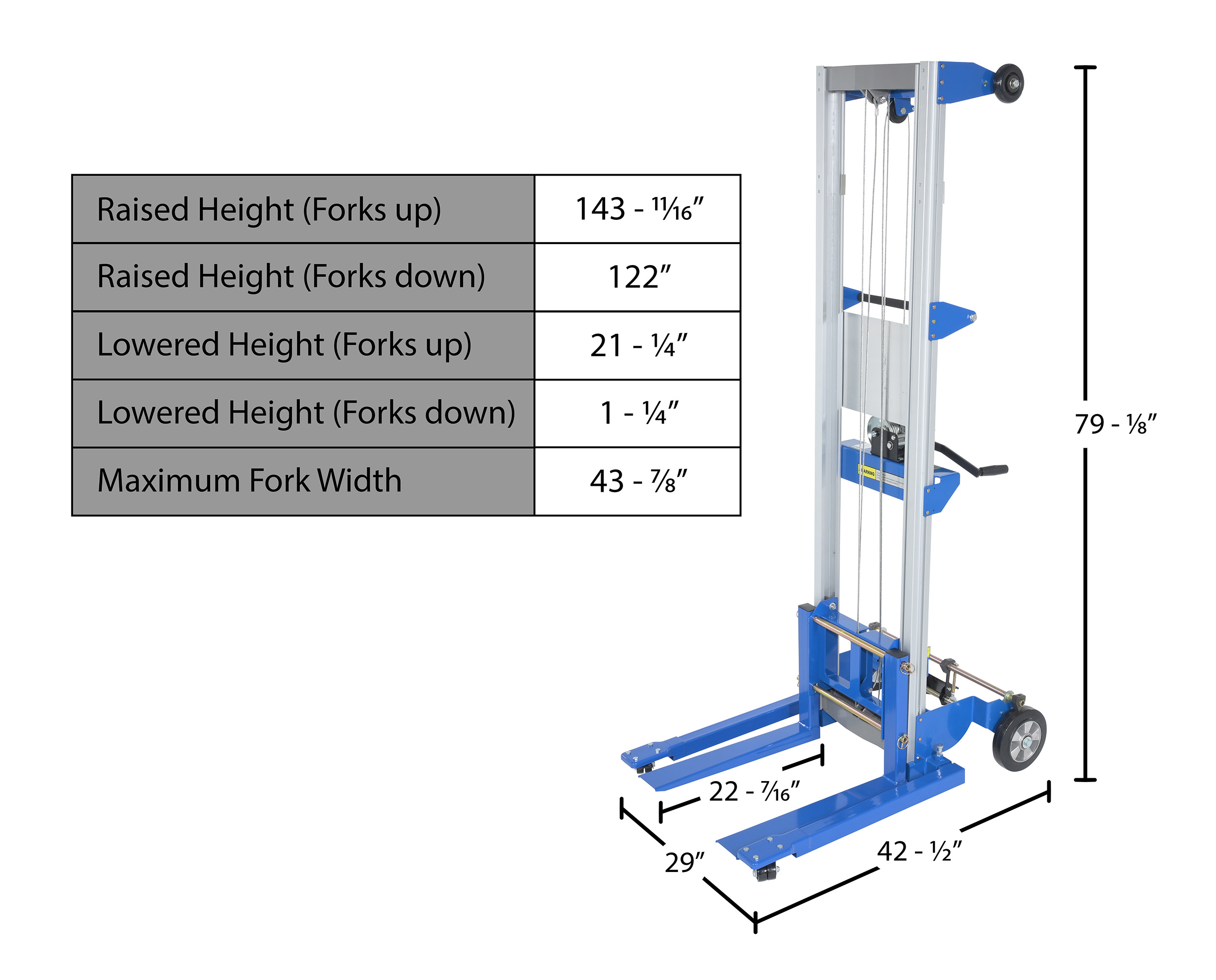

Total Ship Wt.(lbs.): 226 (only 1 package) Size: 43.875"W x 42.5"L x 79.125"H Color: Silver QuickShip

Uniform Capacity (lb.): 350 Lowered Height (in.): 1-1/4 / 21-1/4 Raised Height with Forks Down (in.): 122
Raised Height with Forks Up (in.): 143-11/16 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-7/8 Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2 Inside Straddle Width (in.): 21-3/4 - 36-1/4
Outside Straddle Width (in.): 29 - 43-7/8 Design: Straddle

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: A-LIFT-S-EHP
A-LIFT-S-EHP

Aluminum/Steel Adjustable Straddle Hand Winch Lift Trucks 350 Lb. Capacity Silver

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Adjustable straddle width for varying load sizes
  • Hold-down device secures carriage during transport
Dimensions: 43.875"W x 42.5"L x 79.125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215057578 GTIN: 00691215057578
Warranty: -- Shipping Weight: 226 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 350 Lowered Height (in.): 1-1/4 / 21-1/4 Raised Height with Forks Down (in.): 122
Raised Height with Forks Up (in.): 143-11/16 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-7/8 Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2 Inside Straddle Width (in.): 21-3/4 - 36-1/4
Outside Straddle Width (in.): 29 - 43-7/8 Design: Straddle
