Model Details

AFC-2242-P

AFC-2242-P

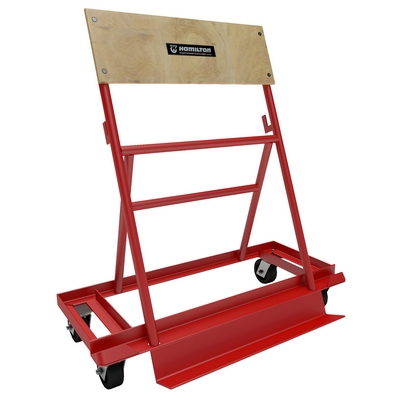

Steel A-Frame Cart with Phenolic Casters 42-5/8 In. x 22-3/4 In. x 47 In. 1,500 Lb. Capacity Red

The A-Frame steel carts are ideal for the manufacturing and industrial settings. With a steel frame and A-Frame of structural tubing the cart braces panels and other pieces of material securely and safely. The nose plate lets the material rest at an angle for a comfortable lifting position. The unit rolls smoothly on swivel casters.

  • 5" casters
  • Steel brace panels and other pieces are for security and safety
  • Wooden support minimizes abrasions
  • Phenolic casters allow for smooth transportation
Total Ship Wt.(lbs.): 180 (only 1 package) Size: 22.75"W x 42.625"L x 47"H Color: Red Non-Returnable

Uniform Capacity (lb.): 1,500 Angle Base (in.): 3/16 A-Frame Pipe (in.): 1
Angle Nose Plate (in.): 1/4 Caster Quantity/Diameter/Width (in.): (4) 5 x 1-1/2 Caster Type: Swivel
Caster Material: Phenolic Nose Plate Width (in.): 30 Nose Plate Depth (in.): 4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AFC-2242-P


AFC-2242-P

Steel A-Frame Cart with Phenolic Casters 42-5/8 In. x 22-3/4 In. x 47 In. 1,500 Lb. Capacity Red

The A-Frame steel carts are ideal for the manufacturing and industrial settings. With a steel frame and A-Frame of structural tubing the cart braces panels and other pieces of material securely and safely. The nose plate lets the material rest at an angle for a comfortable lifting position. The unit rolls smoothly on swivel casters.

  • 5" casters
  • Steel brace panels and other pieces are for security and safety
  • Wooden support minimizes abrasions
  • Phenolic casters allow for smooth transportation
Dimensions: 22.75"W x 42.625"L x 47"H Sell UOM: EA-Each Color: Red
Material: Steel UPC: 691215103381 GTIN: 00691215103381
Warranty: -- Shipping Weight: 180 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Angle Base (in.): 3/16 A-Frame Pipe (in.): 1
Angle Nose Plate (in.): 1/4 Caster Quantity/Diameter/Width (in.): (4) 5 x 1-1/2 Caster Type: Swivel
Caster Material: Phenolic Nose Plate Width (in.): 30 Nose Plate Depth (in.): 4
