Model Details

AHA-15-10-12-PNU

AHA-15-10-12-PNU

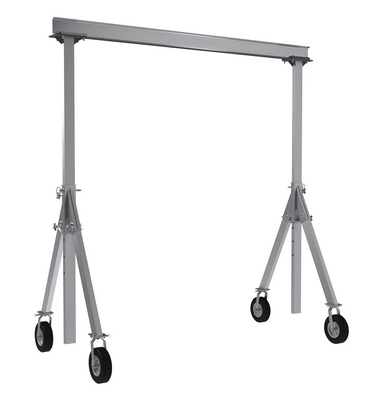

Aluminum Adjustable Height Gantry Crane with Pneumatic Casters 10 Ft. x 12 Ft. 1500 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines a lightweight, rigid, and sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. Included are two (2) straps, allowing the gantry crane to be transported in one neat package.

  • Heavy-duty welded aluminum construction
  • Pinned connections for quick set up and take down
  • Easily adjustable height with fork truck or other overhead lifting device
  • Smooth rolling with four swivel pneumatic casters
Total Ship Wt.(lbs.): 291 (only 1 package) Size: 53.75"W x 120"L x 156.25"H Color: Silver QuickShip

Uniform Capacity (lb.): 1500 Overall I-Beam Length (ft.): 10 Overall I-Beam Height (ft.): 6
I-Beam Flange Width (in.): 3-5/16 Under I-Beam Range (in.): 120 to 150 Base Width (in.): 53-3/4
Caster Quantity/Diameter/Width (in.): (4) 12 x 3-1/2 Caster Type: Four-way locking Caster Material: Pneumatic
Usable Trolley Travel Distance (in.): 96-1/4 Increment Height Adjustment (in.): 6

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHA-15-10-12-PNU


AHA-15-10-12-PNU

Aluminum Adjustable Height Gantry Crane with Pneumatic Casters 10 Ft. x 12 Ft. 1500 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines a lightweight, rigid, and sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. Included are two (2) straps, allowing the gantry crane to be transported in one neat package.

  • Heavy-duty welded aluminum construction
  • Pinned connections for quick set up and take down
  • Easily adjustable height with fork truck or other overhead lifting device
  • Smooth rolling with four swivel pneumatic casters
Dimensions: 53.75"W x 120"L x 156.25"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215001137 GTIN: 00691215001137
Warranty: -- Shipping Weight: 291 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1500 Overall I-Beam Length (ft.): 10 Overall I-Beam Height (ft.): 6
I-Beam Flange Width (in.): 3-5/16 Under I-Beam Range (in.): 120 to 150 Base Width (in.): 53-3/4
Caster Quantity/Diameter/Width (in.): (4) 12 x 3-1/2 Caster Type: Four-way locking Caster Material: Pneumatic
Usable Trolley Travel Distance (in.): 96-1/4 Increment Height Adjustment (in.): 6
