Model Details

AHA-4-8-10-PNU

AHA-4-8-10-PNU

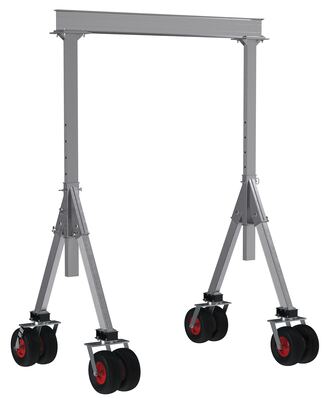

Aluminum Adjustable Height Gantry Crane with Pneumatic Rubber Casters 8 Ft. x 10 Ft. 4000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines a lightweight, rigid, and sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. Included are two (2) straps, allowing the gantry crane to be transported in one neat package.

  • Heavy-duty welded aluminum construction
  • Pinned connections for quick set up and take down
  • Easily adjustable height with fork truck or other overhead lifting device
  • Smooth rolling with four double pneumatic rubber casters
Total Ship Wt.(lbs.): 372 (only 1 package) Size: 73.0625"W x 101.625"L x 142.125"H Color: Silver

Uniform Capacity (lbs): 4000 Overall I-Beam Length (ft.): 8 Overall I-Beam Height (ft.): 8
I-Beam Flange Width (in.): 4 Under I-Beam Range (in.): 104 to 134 Base Width (in.): 73-1/16
Caster Quantity/Diameter/Width (in.): (4) 16 x 16 Caster Type: (4) Swivel Caster Material: Pneumatic
Caster Top Plate (in.): 4x4.5 w/ adaptor plate Usable Trolley Travel Distance (in.): 72.25 Increment Height Adjustment (in.): 6

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHA-4-8-10-PNU


AHA-4-8-10-PNU

Aluminum Adjustable Height Gantry Crane with Pneumatic Rubber Casters 8 Ft. x 10 Ft. 4000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines a lightweight, rigid, and sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. Included are two (2) straps, allowing the gantry crane to be transported in one neat package.

  • Heavy-duty welded aluminum construction
  • Pinned connections for quick set up and take down
  • Easily adjustable height with fork truck or other overhead lifting device
  • Smooth rolling with four double pneumatic rubber casters
Dimensions: 73.0625"W x 101.625"L x 142.125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215369527 GTIN: 00691215369527
Warranty: -- Shipping Weight: 372 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 4000 Overall I-Beam Length (ft.): 8 Overall I-Beam Height (ft.): 8
I-Beam Flange Width (in.): 4 Under I-Beam Range (in.): 104 to 134 Base Width (in.): 73-1/16
Caster Quantity/Diameter/Width (in.): (4) 16 x 16 Caster Type: (4) Swivel Caster Material: Pneumatic
Caster Top Plate (in.): 4x4.5 w/ adaptor plate Usable Trolley Travel Distance (in.): 72.25 Increment Height Adjustment (in.): 6
