Model Details

AHSN-2-15-7-TLC

AHSN-2-15-7-TLC

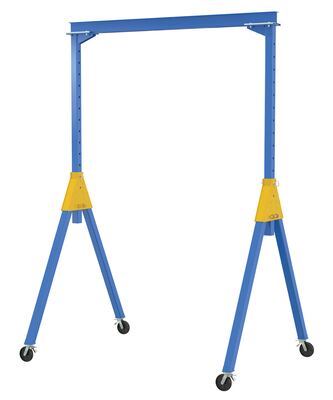

Steel Knock-Down Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft.Wide x 7 Ft. Max Usable Height 2,000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard with total locking casters. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit. Designed for semi-permanent or permanent applications.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 760 (Multiple Packages: P1: 563 lbs + P2: 197 lbs) Size: 50"W x 180"L x 90.125"H Color: Blue

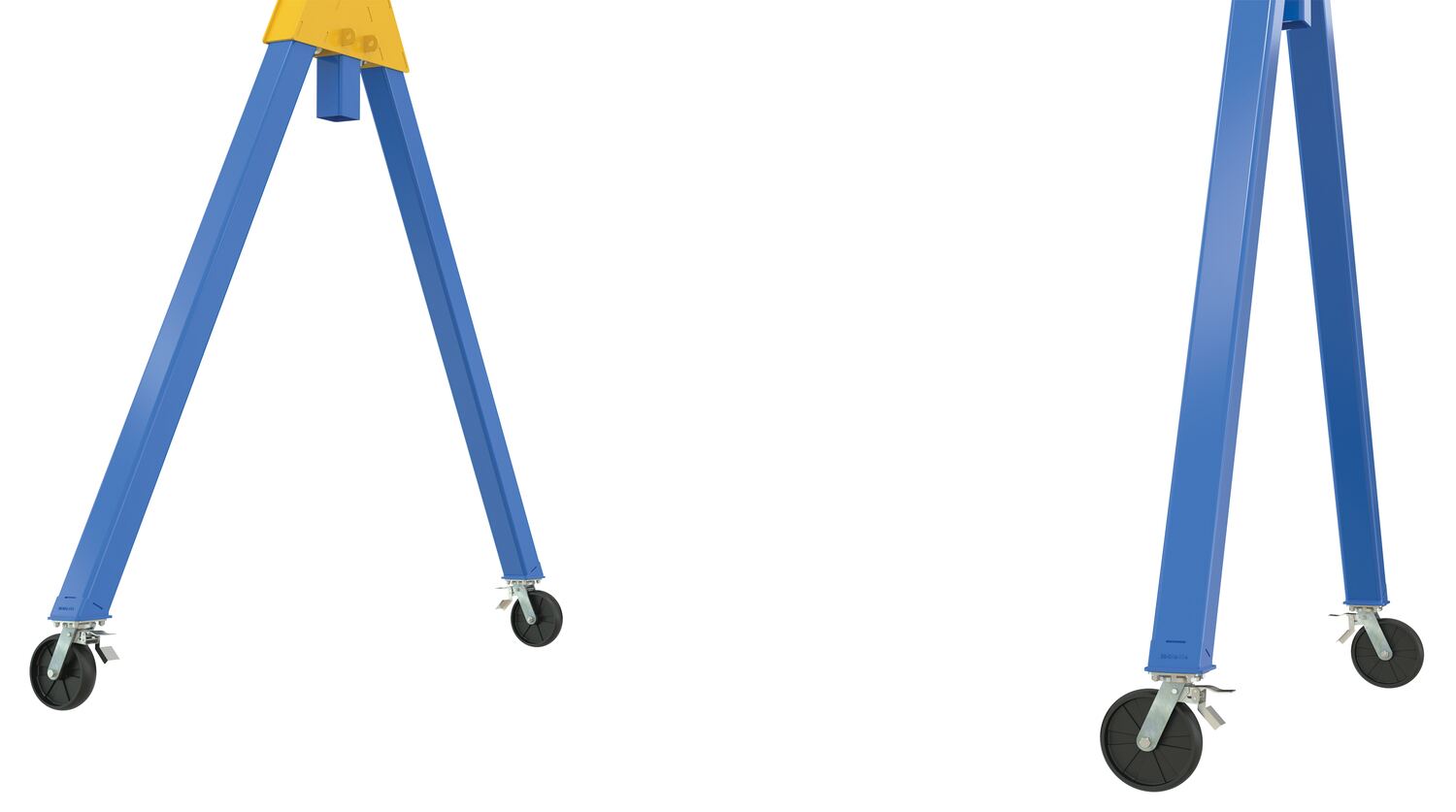

Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Polyurethane

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHSN-2-15-7-TLC


AHSN-2-15-7-TLC

Steel Knock-Down Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft.Wide x 7 Ft. Max Usable Height 2,000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard with total locking casters. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit. Designed for semi-permanent or permanent applications.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 50"W x 180"L x 90.125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215365888 GTIN: 00691215365888
Warranty: -- Shipping Weight: 563 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Polyurethane
