Model Details

AHSN-8-15-14

AHSN-8-15-14

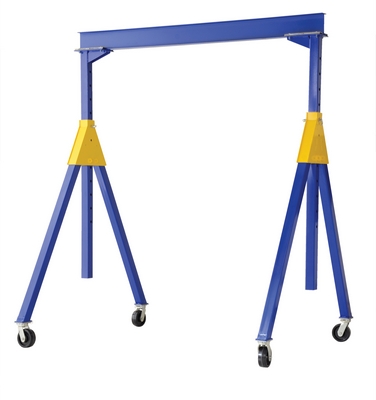

Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 14 Ft. 8000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard with total locking casters. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit. Designed for semi-permanent or permanent applications.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • Easily maneuvered between stations when unloaded
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 1164 (Multiple Packages: P1: 909 lbs + P2: 255 lbs) Size: 88"W x 179.75"L x 179.0625"H Color: Blue

Uniform Capacity (lb.): 8000 Overall I-Beam Length (ft.): 15 Overall I-Beam Height (ft.): 10-1/8
I-Beam Flange Width (in.): 4 Under I-Beam Usable Height (in.): 103 to 169 Base Width (in.): 88
Caster Quantity/Diameter/Width (in.): (4) 8 x 3 Caster Style: Swivel (4) Position Locking Casters Caster Material: Phenolic
Usable Travel Distance (in.): 149-3/4 Increment Height Adjustment (in.): 6 Style: Knock-Down

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHSN-8-15-14


AHSN-8-15-14

Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters 15 Ft. x 14 Ft. 8000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard with total locking casters. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit. Designed for semi-permanent or permanent applications.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • Easily maneuvered between stations when unloaded
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 88"W x 179.75"L x 179.0625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215108829 GTIN: 00691215108829
Warranty: -- Shipping Weight: 909 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 8000 Overall I-Beam Length (ft.): 15 Overall I-Beam Height (ft.): 10-1/8
I-Beam Flange Width (in.): 4 Under I-Beam Usable Height (in.): 103 to 169 Base Width (in.): 88
Caster Quantity/Diameter/Width (in.): (4) 8 x 3 Caster Style: Swivel (4) Position Locking Casters Caster Material: Phenolic
Usable Travel Distance (in.): 149-3/4 Increment Height Adjustment (in.): 6 Style: Knock-Down
