Model Details

BALL-4048

Printer Friendly
BALL-4048

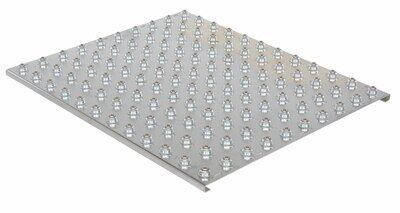

Steel Transfer Platform 40 In. x 48 In. 75 Lb. Capacity Silver

The ball transfer platform unit simply bolts on to any platform. The chrome ball transfers have a square pattern. Can attach to hydraulic and mechanical post tables and lift tables.

  • Bolts on to any platform
  • Chrome ball transfers have a square pattern
  • Attach to hydraulic and mechanical post and lift tables
  • Minimizes effort during item transfer
Total Ship Wt.(lbs.): 186 (only 1 package) Size: 40"W x 48"L x 2.375"H Color: Blue QuickShip

Uniform Capacity/Ball (lb.): 75 Ball Centers (in.): 4 Ball Transfer Width (in.): 4
Ball Transfer Length (in.): 4-3/4 Ball (qty.): 120 Overall Width (in.): 40
Overall Height (in.): 2-3/8 Overall Length (in.): 48 Platform Thickness (gauge): 10

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: BALL-4048
BALL-4048

Steel Transfer Platform 40 In. x 48 In. 75 Lb. Capacity Silver

The ball transfer platform unit simply bolts on to any platform. The chrome ball transfers have a square pattern. Can attach to hydraulic and mechanical post tables and lift tables.

  • Bolts on to any platform
  • Chrome ball transfers have a square pattern
  • Attach to hydraulic and mechanical post and lift tables
  • Minimizes effort during item transfer
Dimensions: 40"W x 48"L x 2.375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215004442 GTIN: 00691215004442
Warranty: -- Shipping Weight: 186 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity/Ball (lb.): 75 Ball Centers (in.): 4 Ball Transfer Width (in.): 4
Ball Transfer Length (in.): 4-3/4 Ball (qty.): 120 Overall Width (in.): 40
Overall Height (in.): 2-3/8 Overall Length (in.): 48 Platform Thickness (gauge): 10
