Model Details

BT-20

Printer Friendly

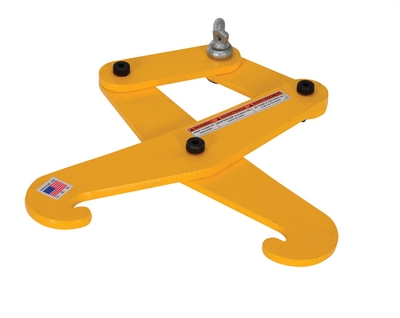

BT-20

Steel Heavy Duty Beam Tongs 6 In. Max Beam Width 3/4 In. x 9-3/4 In. x 20-7/8 In. 2000 Lb. Capacity Yellow

The heavy duty beam tongs are designed to lift I-beams in conjunction with overhead lifting devices. The scissor style design, utilizes the weight of the product being lifted for a more stable grip. Loads need to be centered and guided during lifting operation.

  • 6" max beam width
  • Includes lifting ring for easy use with overhead hoist
  • Manufactured to ASME B30.20 standards
  • Tough baked in powder coated yellow finish
Total Ship Wt.(lbs.): 12 (only 1 package) Size: 9.75"W x 0.75"L x 20.875"H Color: Yellow QuickShip

Uniform Capacity (lb.): 2,000 Maximum Beam Width (in.): 6 Overall Open Width (in.): 9-3/4
Overall Closed Width (in.): 5-5/16 Overall Open Height (in.): 18-1/8 Overall Closed Height (in.): 20-7/8
Clevis (ton): 2 ASME: B30.20

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: BT-20
BT-20

Steel Heavy Duty Beam Tongs 6 In. Max Beam Width 3/4 In. x 9-3/4 In. x 20-7/8 In. 2000 Lb. Capacity Yellow

The heavy duty beam tongs are designed to lift I-beams in conjunction with overhead lifting devices. The scissor style design, utilizes the weight of the product being lifted for a more stable grip. Loads need to be centered and guided during lifting operation.

  • 6" max beam width
  • Includes lifting ring for easy use with overhead hoist
  • Manufactured to ASME B30.20 standards
  • Tough baked in powder coated yellow finish
Dimensions: 9.75"W x 0.75"L x 20.875"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215054836 GTIN: 00691215054836
Warranty: -- Shipping Weight: 12 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Maximum Beam Width (in.): 6 Overall Open Width (in.): 9-3/4
Overall Closed Width (in.): 5-5/16 Overall Open Height (in.): 18-1/8 Overall Closed Height (in.): 20-7/8
Clevis (ton): 2 ASME: B30.20
