Model Details

BT-60

BT-60

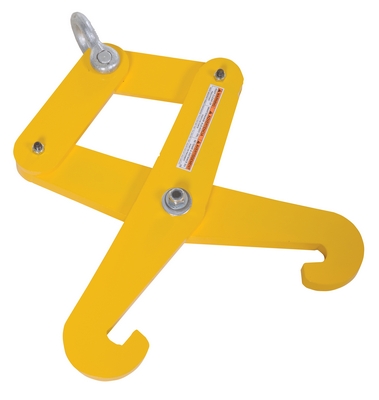

Steel Heavy Duty Beam Tongs 10 In. Max Beam Width 1-1/2 In. x 14-9/16 In. x 25-1/8 In. 6000 Lb. Capacity Yellow

The heavy duty beam tongs are designed to lift I-beams in conjunction with overhead lifting devices. The scissor style design, utilizes the weight of the product being lifted for a more stable grip. Loads need to be centered and guided during lifting operation.

  • 10" max beam width
  • Includes lifting ring for easy use with overhead hoist
  • Manufactured to ASME B30.20 standards
  • Tough baked in powder coated yellow finish
Total Ship Wt.(lbs.): 27 (only 1 package) Size: 14.5625"W x 1.5"L x 25.125"H Color: Yellow QuickShip

Uniform Capacity (lb.): 6,000 Maximum Beam Width (in.): 10 Overall Open Width (in.): 14-9/16
Overall Closed Width (in.): 8-1/8 Overall Open Height (in.): 19-1/2 Overall Closed Height (in.): 25-1/8
Clevis (ton): 3-1/4 ASME: B30.20

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: BT-60


BT-60

Steel Heavy Duty Beam Tongs 10 In. Max Beam Width 1-1/2 In. x 14-9/16 In. x 25-1/8 In. 6000 Lb. Capacity Yellow

The heavy duty beam tongs are designed to lift I-beams in conjunction with overhead lifting devices. The scissor style design, utilizes the weight of the product being lifted for a more stable grip. Loads need to be centered and guided during lifting operation.

  • 10" max beam width
  • Includes lifting ring for easy use with overhead hoist
  • Manufactured to ASME B30.20 standards
  • Tough baked in powder coated yellow finish
Dimensions: 14.5625"W x 1.5"L x 25.125"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215054850 GTIN: 00691215054850
Warranty: -- Shipping Weight: 27 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6,000 Maximum Beam Width (in.): 10 Overall Open Width (in.): 14-9/16
Overall Closed Width (in.): 8-1/8 Overall Open Height (in.): 19-1/2 Overall Closed Height (in.): 25-1/8
Clevis (ton): 3-1/4 ASME: B30.20
