Model Details

CA-60-2

CA-60-2

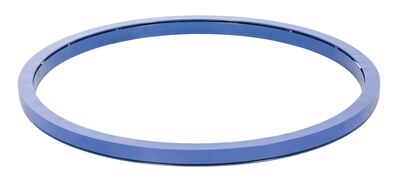

Steel Manual Carousel 60 In. Diameter 2000 Lb. Capacity Blue

The manual carousels rotate materials with the assistance of an operator. Now loading and unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or simply placed on the floor. Constructed of two pieces of rolled structural angle. A series of standard sealed ball bearings transfer the load smoothly and evenly to the supporting surface.

  • Manually rotating top ring will rotate 360 degrees
  • Steel rings are flat for precision
  • Internally sealed roller bearings and guide rollers provide long lasting use
  • Four guide rollers keep the rings aligned
Total Ship Wt.(lbs.): 110 (only 1 package) Size: 60"W x 60"L x 2"H Color: Blue QuickShip

Uniform Capacity (lb.): 2000 Rotation (degrees): 360 Structural Angle Height (in.): 3/16
Top Inside Diameter (in.): 56-1/2 Top Outside Diameter (in.): 60

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CA-60-2


CA-60-2

Steel Manual Carousel 60 In. Diameter 2000 Lb. Capacity Blue

The manual carousels rotate materials with the assistance of an operator. Now loading and unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or simply placed on the floor. Constructed of two pieces of rolled structural angle. A series of standard sealed ball bearings transfer the load smoothly and evenly to the supporting surface.

  • Manually rotating top ring will rotate 360 degrees
  • Steel rings are flat for precision
  • Internally sealed roller bearings and guide rollers provide long lasting use
  • Four guide rollers keep the rings aligned
Dimensions: 60"W x 60"L x 2"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215010016 GTIN: 00691215010016
Warranty: -- Shipping Weight: 110 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Rotation (degrees): 360 Structural Angle Height (in.): 3/16
Top Inside Diameter (in.): 56-1/2 Top Outside Diameter (in.): 60
