Model Details

CBS-76-1-AC

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
CBS-76-1-AC

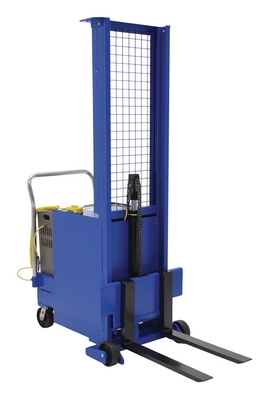

Steel AC Counter Balanced Stacker 76 In. 1000 Capacity Blue

Move small loads from one place to another without the need for oversized fork truck equipment. The open front enables the forks to be next to workstation for easy loading and unloading. Handle height is 40-13/16". A hand control on a coil cord is included, standard. AC powered versions are 115V, single phase. Optional rotary air/oil power available, contact factory.

  • Counterbalanced design
  • Load accessible from three sides
  • 25-1/2” long forks
  • 6”x2” glass filled nylon casters
Total Ship Wt.(lbs.): 1358 (only 1 package) Size: 27.5"W x 62.8125"L x 91.875"H Color: Blue Non-Returnable

Uniform Capacity at 12 in. Load Center (lb.): 1000 Fork Width (in.): 3 Fork Length (in.): 25-1/2
Fork Thickness (in.): 1 Lowered Height (in.): 1-1/4 Raised Height (in.): 76
Handle Height (in.): 40-13/16 Caster Diameter/Width (in.): (4) 6 x 2 Caster Material: Glass Filled Nylon
Rear Caster Type: (2)Swivel w/Brake (2)Front Caster Type: Rigid Fork Adjustment Above Wheels Max. (O.D.):: 4 to 19
Load Center (in.): 12 Operation: 115V AC / Phase 1

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CBS-76-1-AC
CBS-76-1-AC

Steel AC Counter Balanced Stacker 76 In. 1000 Capacity Blue

Move small loads from one place to another without the need for oversized fork truck equipment. The open front enables the forks to be next to workstation for easy loading and unloading. Handle height is 40-13/16". A hand control on a coil cord is included, standard. AC powered versions are 115V, single phase. Optional rotary air/oil power available, contact factory.

  • Counterbalanced design
  • Load accessible from three sides
  • 25-1/2” long forks
  • 6”x2” glass filled nylon casters
Dimensions: 27.5"W x 62.8125"L x 91.875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215113120 GTIN: 00691215113120
Warranty: -- Shipping Weight: 1358 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity at 12 in. Load Center (lb.): 1000 Fork Width (in.): 3 Fork Length (in.): 25-1/2
Fork Thickness (in.): 1 Lowered Height (in.): 1-1/4 Raised Height (in.): 76
Handle Height (in.): 40-13/16 Caster Diameter/Width (in.): (4) 6 x 2 Caster Material: Glass Filled Nylon
Rear Caster Type: (2)Swivel w/Brake (2)Front Caster Type: Rigid Fork Adjustment Above Wheels Max. (O.D.):: 4 to 19
Load Center (in.): 12 Operation: 115V AC / Phase 1
