Model Details

CG-42

Printer Friendly
CG-42

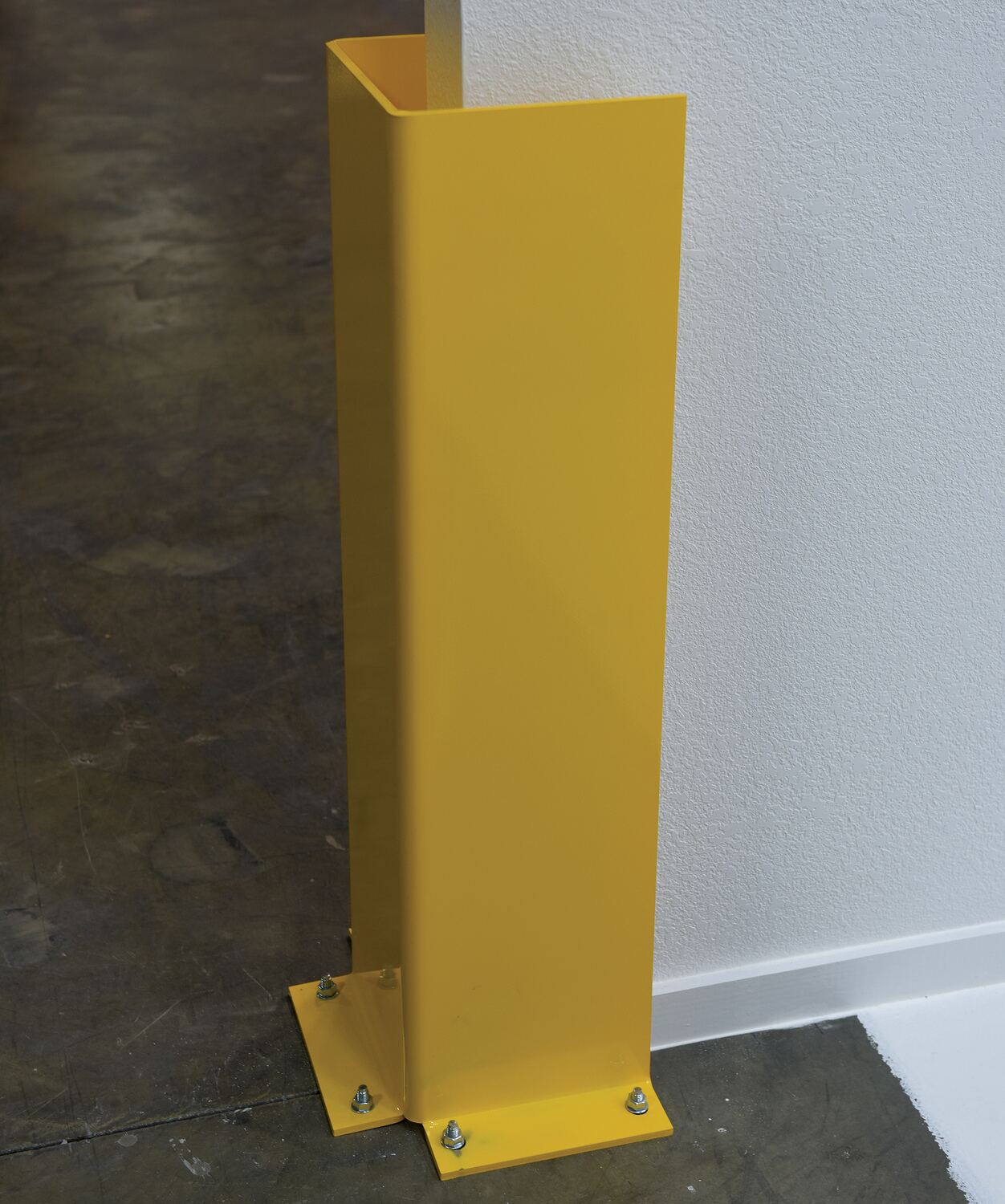

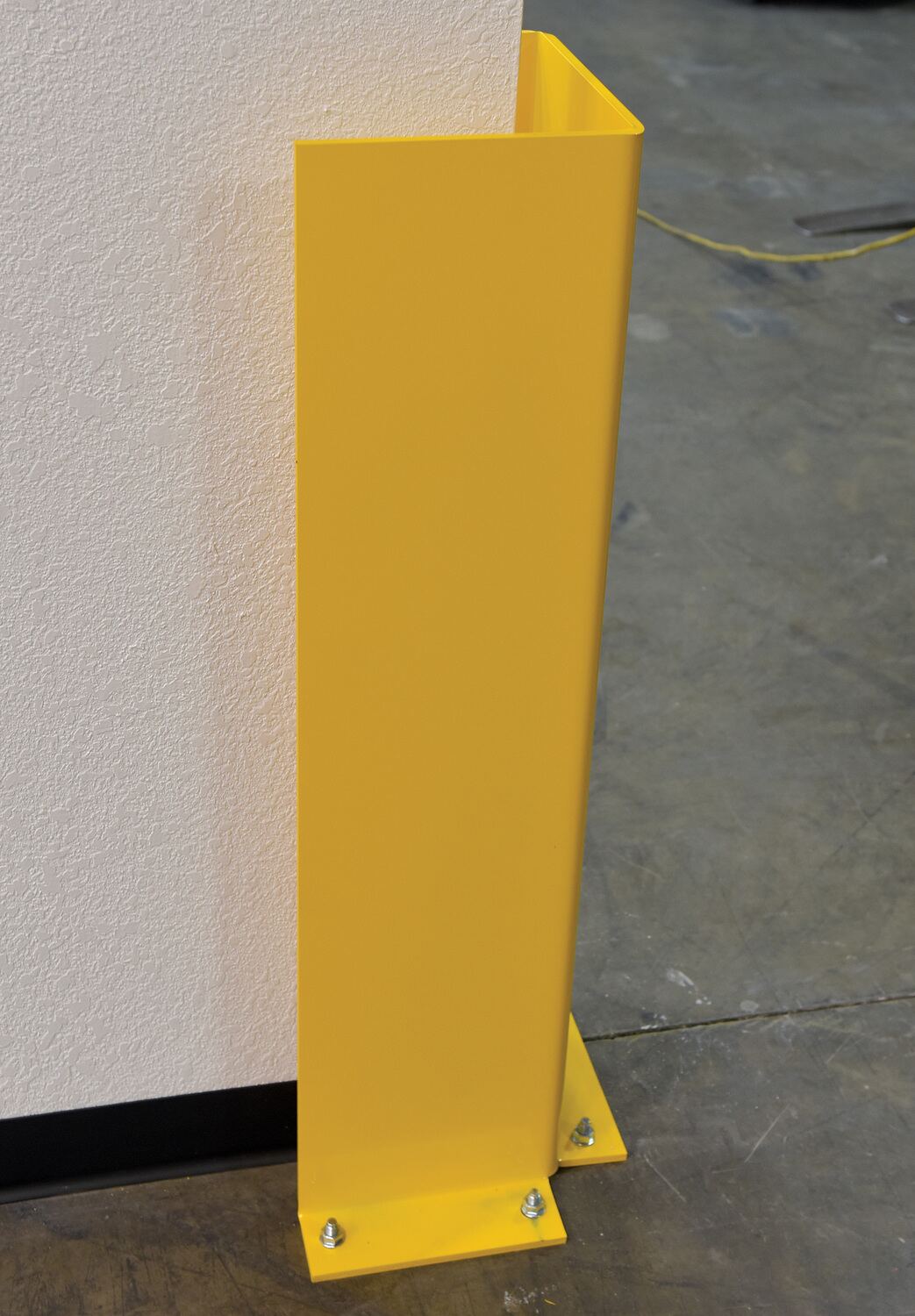

Steel Gantry and Jib Column Guard Protector 42 In. Yellow

Prevent costly damage to steel columns, pipe, and tubing from carts and fork trucks with this Gantry/Jib guard. Solid steel design is constructed of thick material for maximum strength. Powder coated yellow finish.

  • Unique design protects square steel columns from impact
  • Solid-steel construction provides maximum strength
  • Pre-drilled mounting holes make installation quick and easy
  • Safety design is ideal for fixed jibs and gantry cranes
Total Ship Wt.(lbs.): 180 (only 1 package) Size: 19.5"W x 12.75"L x 42"H Color: Yellow QuickShip

Steel Thickness (in.): 3/8 Bolt Holes (qty.): 6 Usable Width (in.): 12-3/4
Usable Length (in.): 9-3/8 Impact Resistance (rating): 4000 lbs. @ 4 mph Overall Height (in.): 42
Overall Width (in.): 19-1/2 Overall Depth (in.): 12-3/4 Anchor Hole Size (in.): 13/16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CG-42
CG-42

Steel Gantry and Jib Column Guard Protector 42 In. Yellow

Prevent costly damage to steel columns, pipe, and tubing from carts and fork trucks with this Gantry/Jib guard. Solid steel design is constructed of thick material for maximum strength. Powder coated yellow finish.

  • Unique design protects square steel columns from impact
  • Solid-steel construction provides maximum strength
  • Pre-drilled mounting holes make installation quick and easy
  • Safety design is ideal for fixed jibs and gantry cranes
Dimensions: 19.5"W x 12.75"L x 42"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215010955 GTIN: 00691215010955
Warranty: -- Shipping Weight: 180 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Steel Thickness (in.): 3/8 Bolt Holes (qty.): 6 Usable Width (in.): 12-3/4
Usable Length (in.): 9-3/8 Impact Resistance (rating): 4000 lbs. @ 4 mph Overall Height (in.): 42
Overall Width (in.): 19-1/2 Overall Depth (in.): 12-3/4 Anchor Hole Size (in.): 13/16
