Model Details

CH-200-30

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
CH-200-30

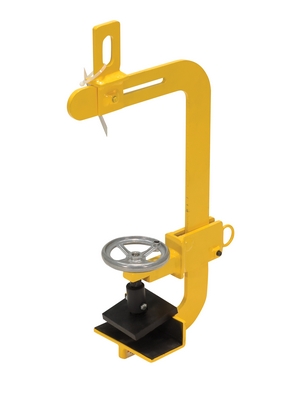

Steel C-Clamp Square Stock Lifter 20 In. Max 200 Lb. Capacity Yellow

A block lifter minimizes manual labor and increases work place efficiency. The lifter allows the user to lift heavy awkward sized blocks to a preferred height. By securely attaching the adjustable lifting bale to a separate lifting device, the unit is ready for product placement. Once the beam/block is in the lower jaw of the lift and is resting alongside the back wall, the wheel can then be turned to firmly press the clamp pad against the block. As the product is secured and is within the limits of capacity, it can then be transferred to the desired location. The robust steel construction maximizes longevity of unit and painted finish diminishes excess damage during daily use.

  • Large capacity for heavy loads
  • Screw down clamp for precise positioning
  • Open front side for large products
  • Bright color for visibility
Total Ship Wt.(lbs.): 25 (only 1 package) Size: 6"W x 13.875"L x 35"H Color: Yellow

Lifting Capacity (lb.): 200 Maximum Block Height (in.): 20 Minimum Block Height (in.): 1-3/4
Clamp Engagement on Block (in.): 3-1/2 Usable Lifting Eye Width/Height (in.): 1 x 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: CH-200-30
CH-200-30

Steel C-Clamp Square Stock Lifter 20 In. Max 200 Lb. Capacity Yellow

A block lifter minimizes manual labor and increases work place efficiency. The lifter allows the user to lift heavy awkward sized blocks to a preferred height. By securely attaching the adjustable lifting bale to a separate lifting device, the unit is ready for product placement. Once the beam/block is in the lower jaw of the lift and is resting alongside the back wall, the wheel can then be turned to firmly press the clamp pad against the block. As the product is secured and is within the limits of capacity, it can then be transferred to the desired location. The robust steel construction maximizes longevity of unit and painted finish diminishes excess damage during daily use.

  • Large capacity for heavy loads
  • Screw down clamp for precise positioning
  • Open front side for large products
  • Bright color for visibility
Dimensions: 6"W x 13.875"L x 35"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215321020 GTIN: 00691215321020
Warranty: -- Shipping Weight: 25 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Lifting Capacity (lb.): 200 Maximum Block Height (in.): 20 Minimum Block Height (in.): 1-3/4
Clamp Engagement on Block (in.): 3-1/2 Usable Lifting Eye Width/Height (in.): 1 x 2
