CTD-H-TP-3000

Steel Hydraulic Powered Fork Truck Crate Turner/Dumper 65-1/2 In. x 30-1/2 In. x 30-1/2 In. 3000 Lb. Capacity Yellow

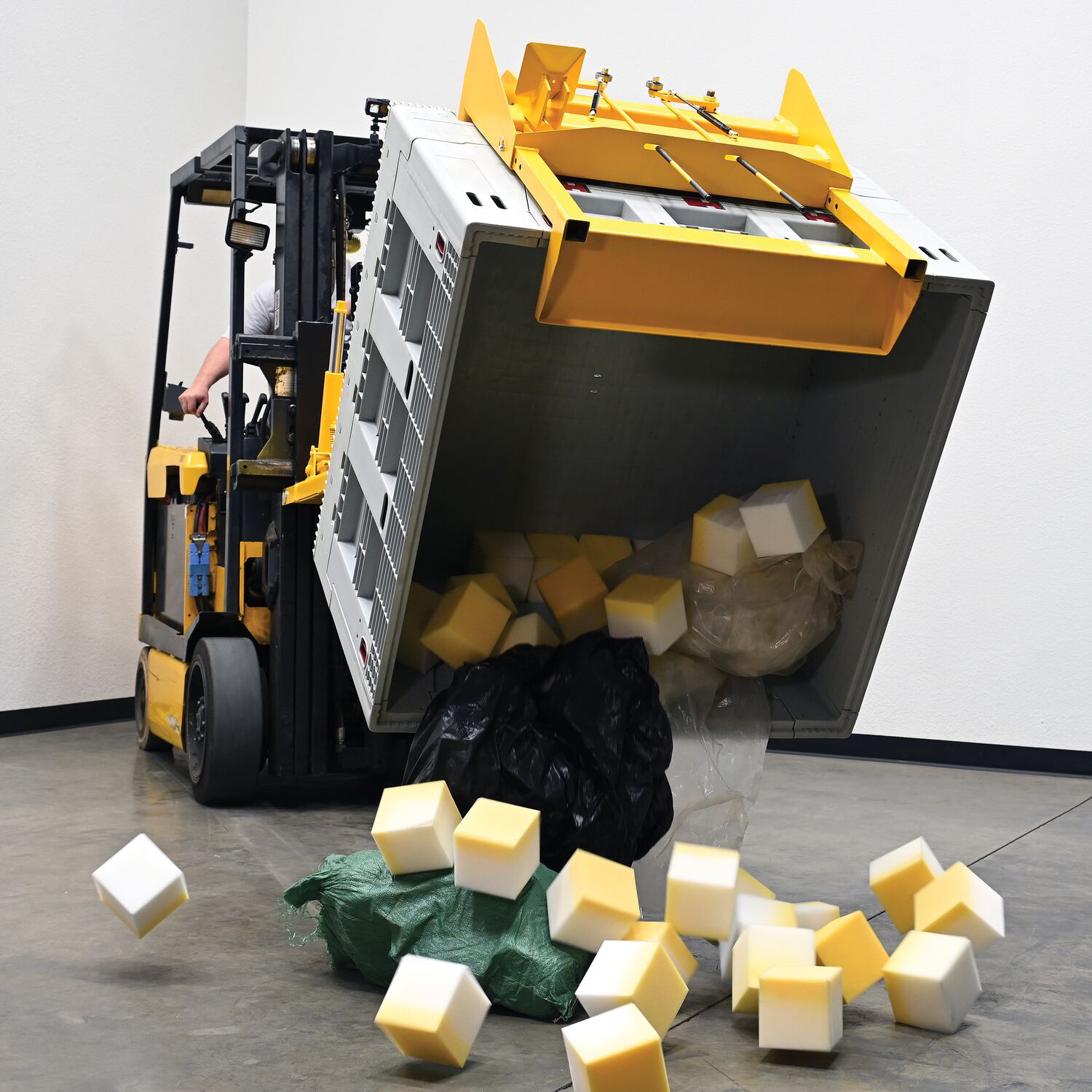

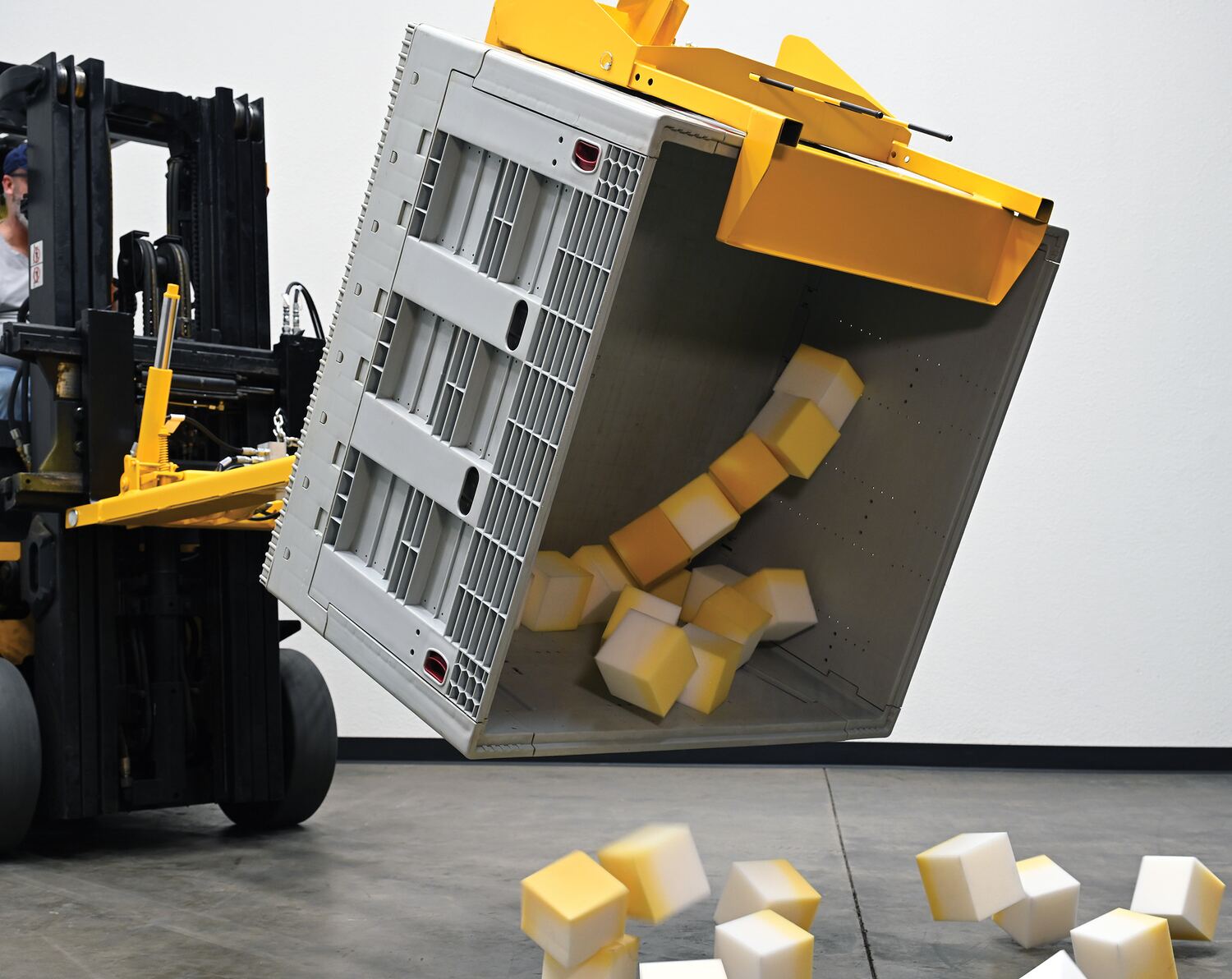

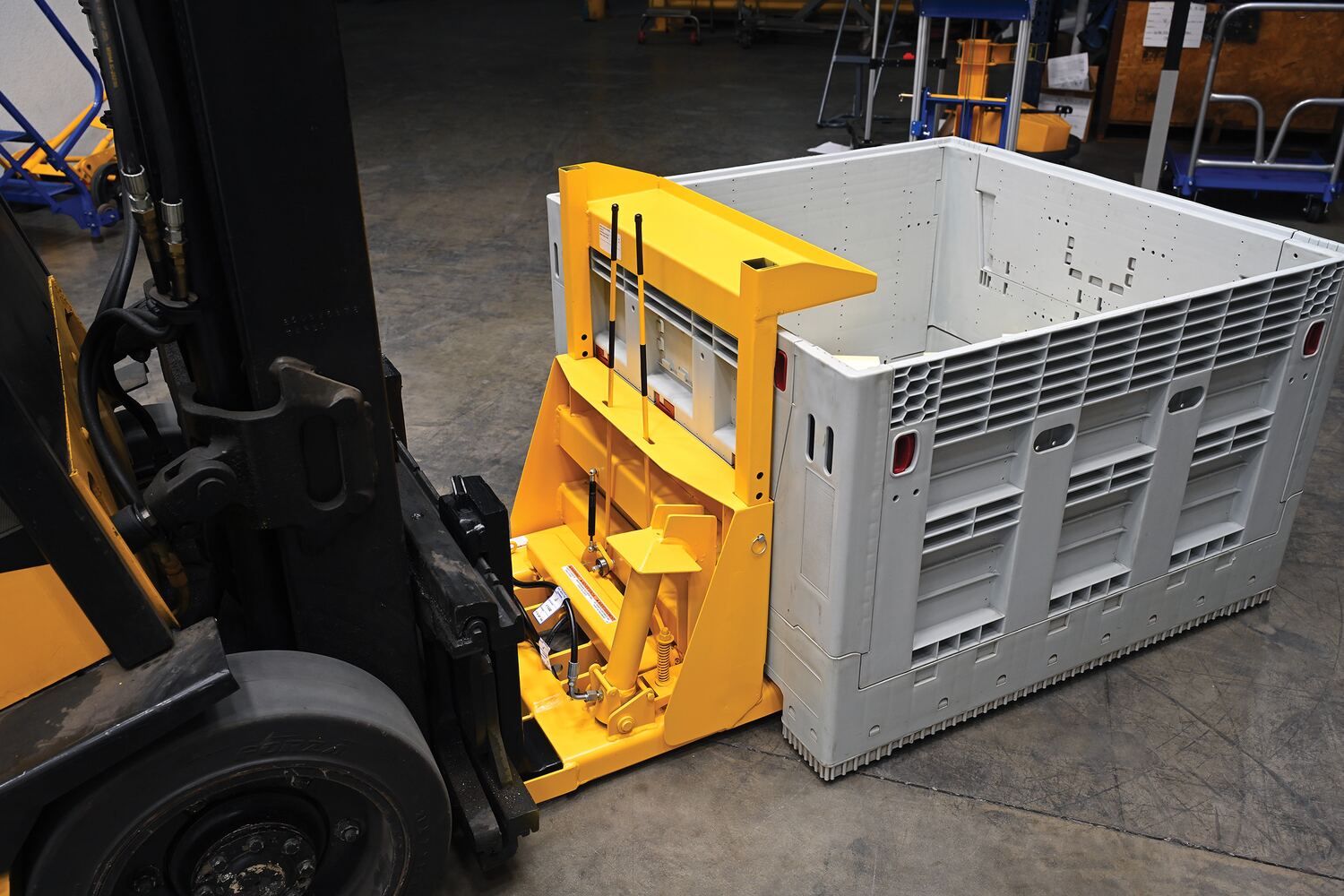

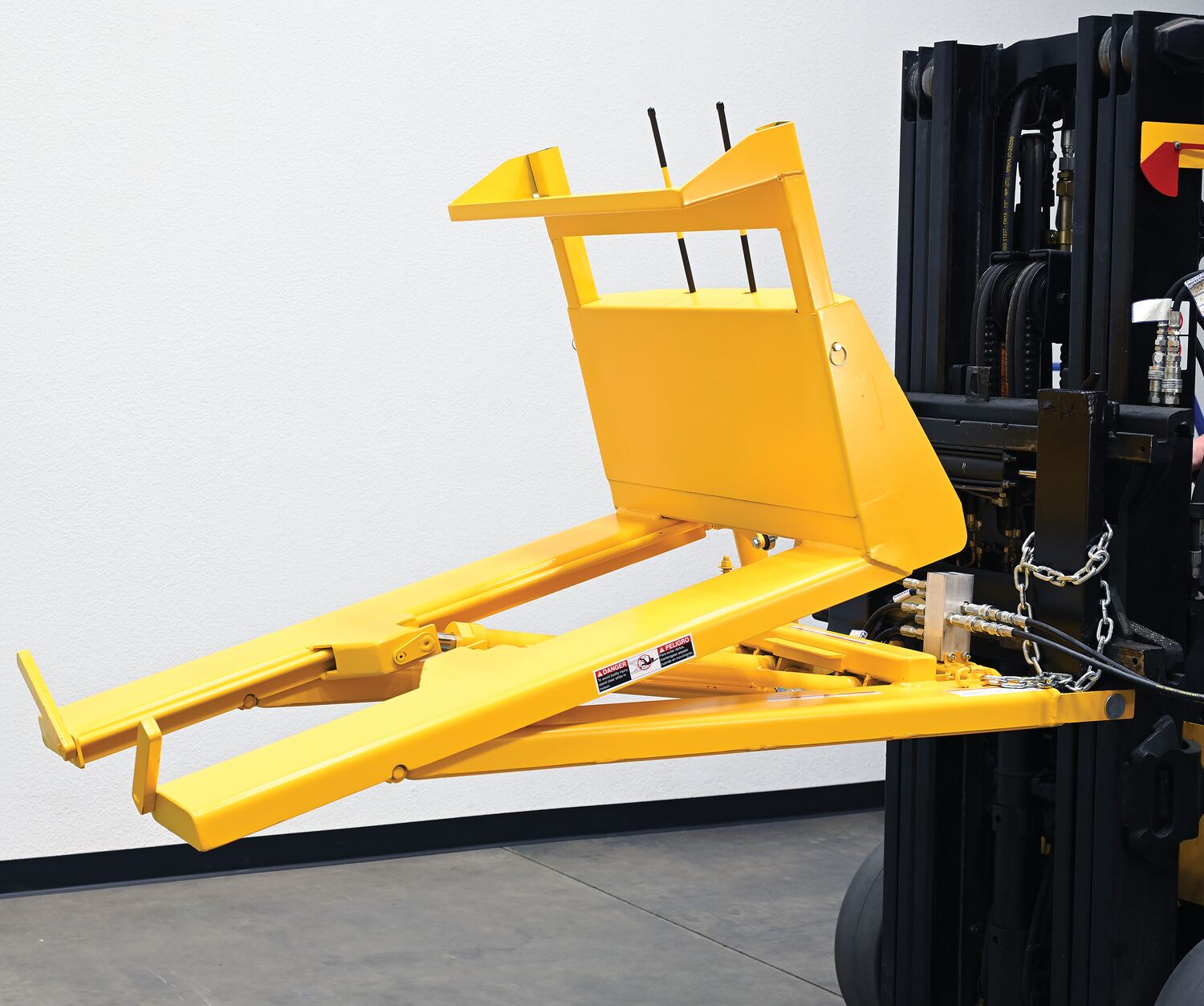

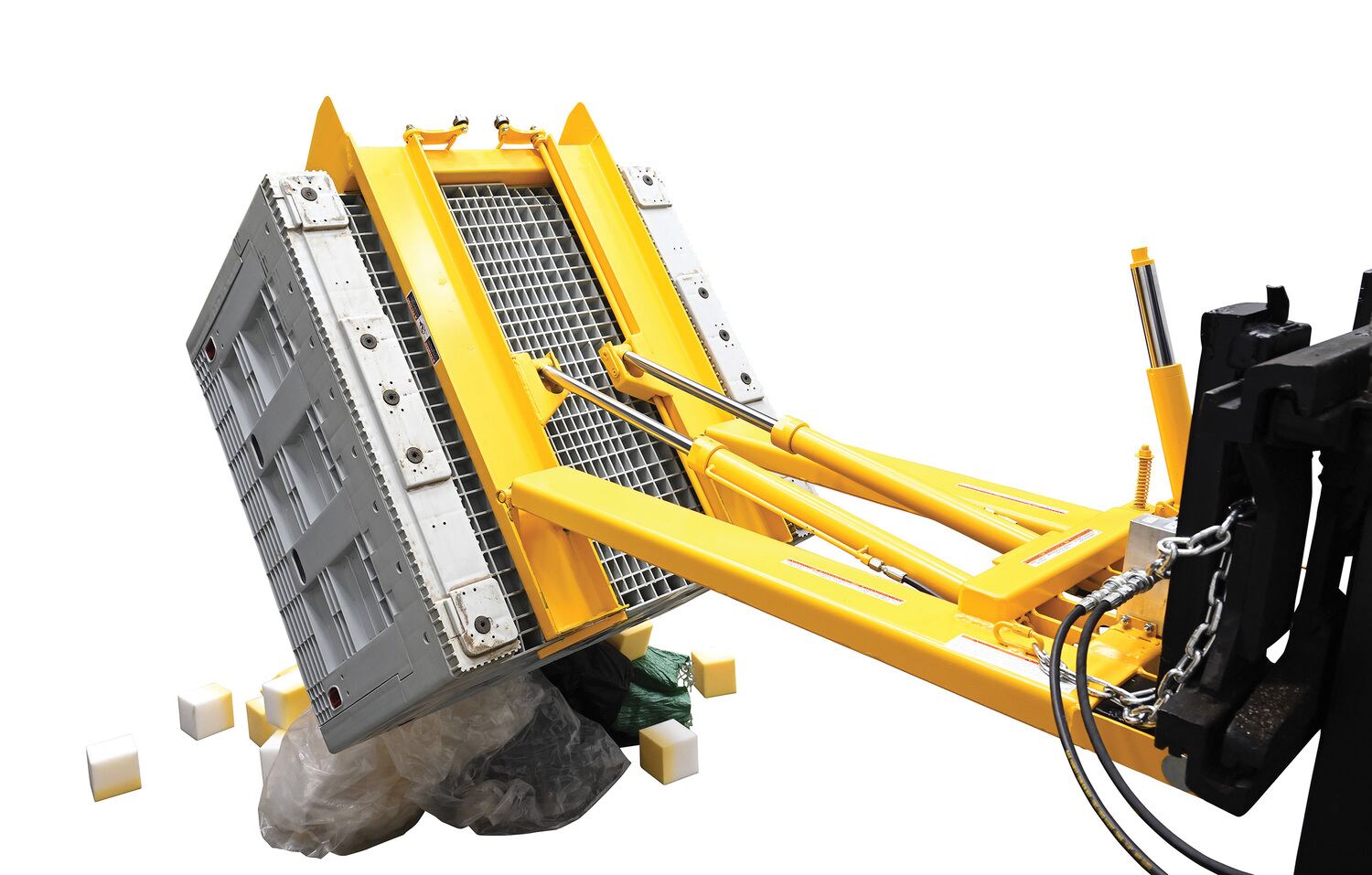

When a crate needs turned, look no further than the hydraulic crate turner. With two easily accessible fork pockets, the unit can be simply attached to a fork lift or other lifting device. During the attachment process, an upper top lip fits tightly against the crate creating a secure connection during movement. The turner is constructed of steel for strength and dependability over consistent use. A painted finish adds a smooth surface to limit abrasions.

  • Durable construction throughout daily use
  • Painted finish
  • Tightly secures crate in place
  • Simple and safe connection to a fork lift or other lifting device
Total Ship Wt.(lbs.): 528 (only 1 package) Size: 30.25"W x 67.24"L x 34.875"H Color: Yellow Non-Returnable

Uniform Capacity (lb.): 3000 Power/Operation:: Truck Powered Fork Length (in.): 46
Fork Width (in.): 8 Fork Center (in.): 23-1/4 Fork Pocket Width (in.): 5-1/2
Fork Pocket Height (in.): 2 Fork Pocket Center (in.): 23-1/4 Minimum PSI: 2400
Maximum PSI: 3000 Height Lock Increments: 24-1/16", 25-9/16", 27-1/16", 28-9/16", 30-1/16" Maximum Crate Height(in.): 30
Minimum Crate Height (in.): 24 Maximum Crate Depth (in.): 45-7/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: CTD-H-TP-3000
CTD-H-TP-3000

Steel Hydraulic Powered Fork Truck Crate Turner/Dumper 65-1/2 In. x 30-1/2 In. x 30-1/2 In. 3000 Lb. Capacity Yellow

When a crate needs turned, look no further than the hydraulic crate turner. With two easily accessible fork pockets, the unit can be simply attached to a fork lift or other lifting device. During the attachment process, an upper top lip fits tightly against the crate creating a secure connection during movement. The turner is constructed of steel for strength and dependability over consistent use. A painted finish adds a smooth surface to limit abrasions.

  • Durable construction throughout daily use
  • Painted finish
  • Tightly secures crate in place
  • Simple and safe connection to a fork lift or other lifting device
Dimensions: 30.25"W x 67.24"L x 34.875"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215336895 GTIN: 00691215336895
Warranty: -- Shipping Weight: 528 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 3000 Power/Operation:: Truck Powered Fork Length (in.): 46
Fork Width (in.): 8 Fork Center (in.): 23-1/4 Fork Pocket Width (in.): 5-1/2
Fork Pocket Height (in.): 2 Fork Pocket Center (in.): 23-1/4 Minimum PSI: 2400
Maximum PSI: 3000 Height Lock Increments: 24-1/16", 25-9/16", 27-1/16", 28-9/16", 30-1/16" Maximum Crate Height(in.): 30
Minimum Crate Height (in.): 24 Maximum Crate Depth (in.): 45-7/8
