Model Details

CYL-HLT

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
CYL-HLT

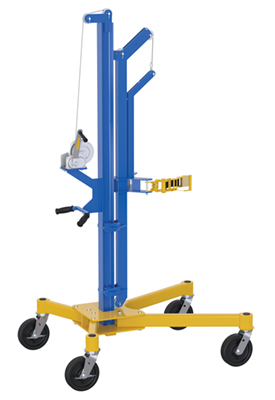

Steel Cylinder Lifter and Transporter 48-15/16 In. x 37-1/32 In. x 85-29/32 In. 300 Lb. Capacity Blue

Cylinder lifter/transporter is perfect for transporting gas cylinders and loading them onto a truck. This unit raises cylinders by simply turning a mechanical hand crank to the desired height. Cylinder is held in place with a tough polyester webbing strap that guards against damage and slipping. Unit will easily dis-assemble for transporting.

  • Strapping guards against damage and slipping
  • Ideal for transporting gas cylinders and loading them
  • Raises cylinders by turning a mechanical hand crank
  • Held in place with a tough polyester webbing strap
Total Ship Wt.(lbs.): 305 (only 1 package) Size: 37.03125"W x 48.9375"L x 85.90625"H Color: Blue

Uniform Capacity (lb.): 300 Height to Bottom of Cylinder (in.): 40 Lowered Height (in.): 85-29/32
Raised Height (in.): 126 11/32 Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Material: Phenolic
Caster Quantity/Type: (2) Swivel, (2) Swivel with Brake Operation: Manual Hand Crank Maximum Cylinder Diameter (in.): 11-1/2
Maximum Cylinder Height (in.): 56

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CYL-HLT
CYL-HLT

Steel Cylinder Lifter and Transporter 48-15/16 In. x 37-1/32 In. x 85-29/32 In. 300 Lb. Capacity Blue

Cylinder lifter/transporter is perfect for transporting gas cylinders and loading them onto a truck. This unit raises cylinders by simply turning a mechanical hand crank to the desired height. Cylinder is held in place with a tough polyester webbing strap that guards against damage and slipping. Unit will easily dis-assemble for transporting.

  • Strapping guards against damage and slipping
  • Ideal for transporting gas cylinders and loading them
  • Raises cylinders by turning a mechanical hand crank
  • Held in place with a tough polyester webbing strap
Dimensions: 37.03125"W x 48.9375"L x 85.90625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215085687 GTIN: 00691215085687
Warranty: -- Shipping Weight: 305 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 300 Height to Bottom of Cylinder (in.): 40 Lowered Height (in.): 85-29/32
Raised Height (in.): 126 11/32 Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Material: Phenolic
Caster Quantity/Type: (2) Swivel, (2) Swivel with Brake Operation: Manual Hand Crank Maximum Cylinder Diameter (in.): 11-1/2
Maximum Cylinder Height (in.): 56
