Model Details

CYL-LT-1-PN

Printer Friendly
CYL-LT-1-PN

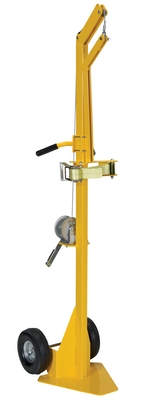

Steel Portable Cylinder Lifter with Pneumatic Wheels 300 Lb. Capacity Yellow

This portable Cylinder lifter allows you to easily move and lift cylinders for placement into portable welders. Cylinder is secured to cart with manual ratchet strap. Cylinder is raised and lowered with manual hand crank cable winch. Portable with two (2) wheels. Steel construction with yellow baked-in powder-coated toughness.

  • Tilts back on two pneumatic casters for smooth maneuverability
  • Easy movement and lifting of cylinders onto portable welders
  • Secured cart with manual ratchet strap for maximum security
  • Includes manual hand crank cable winch for transporting wherever it is needed
Total Ship Wt.(lbs.): 106 (only 1 package) Size: 17.625"W x 23.375"L x 79.3125"H Color: Yellow QuickShip

Uniform Capacity (lb.): 300 Lift Height (in.): 14 Maximum Cylinder Height (in.): 56
Maximum Cylinder Diameter (in.): 11-1/2 Wheel Quantity/Diameter/Width (in.): (2) 10 x 3-1/2 Wheel Type: Pneumatic

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CYL-LT-1-PN
CYL-LT-1-PN

Steel Portable Cylinder Lifter with Pneumatic Wheels 300 Lb. Capacity Yellow

This portable Cylinder lifter allows you to easily move and lift cylinders for placement into portable welders. Cylinder is secured to cart with manual ratchet strap. Cylinder is raised and lowered with manual hand crank cable winch. Portable with two (2) wheels. Steel construction with yellow baked-in powder-coated toughness.

  • Tilts back on two pneumatic casters for smooth maneuverability
  • Easy movement and lifting of cylinders onto portable welders
  • Secured cart with manual ratchet strap for maximum security
  • Includes manual hand crank cable winch for transporting wherever it is needed
Dimensions: 17.625"W x 23.375"L x 79.3125"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215064996 GTIN: 00691215064996
Warranty: -- Shipping Weight: 106 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 300 Lift Height (in.): 14 Maximum Cylinder Height (in.): 56
Maximum Cylinder Diameter (in.): 11-1/2 Wheel Quantity/Diameter/Width (in.): (2) 10 x 3-1/2 Wheel Type: Pneumatic
