Model Details

D-FORK-4-RL

Printer Friendly

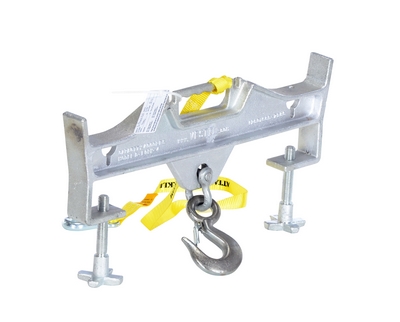

D-FORK-4-RL

Steel Double Rigid Hoist Optioning Hook 2 In x 23-3/16 In x 13-1/32 In 4000 Lb. Capacity Silver

Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach hoisting hook does not require the assistance of special tools. Secured to the fork truck by means of a long safety restraint and screw clamps. Zinc plated hook with shackle included.

  • Heavy-duty solid steel construction provides long lasting rugged use
  • Double-fork style securely slides onto both fork truck forks
  • Safety chain with snap hook attaches unit to carriage of fork truck
  • Forged steel hook with safety latch ensures worker safety

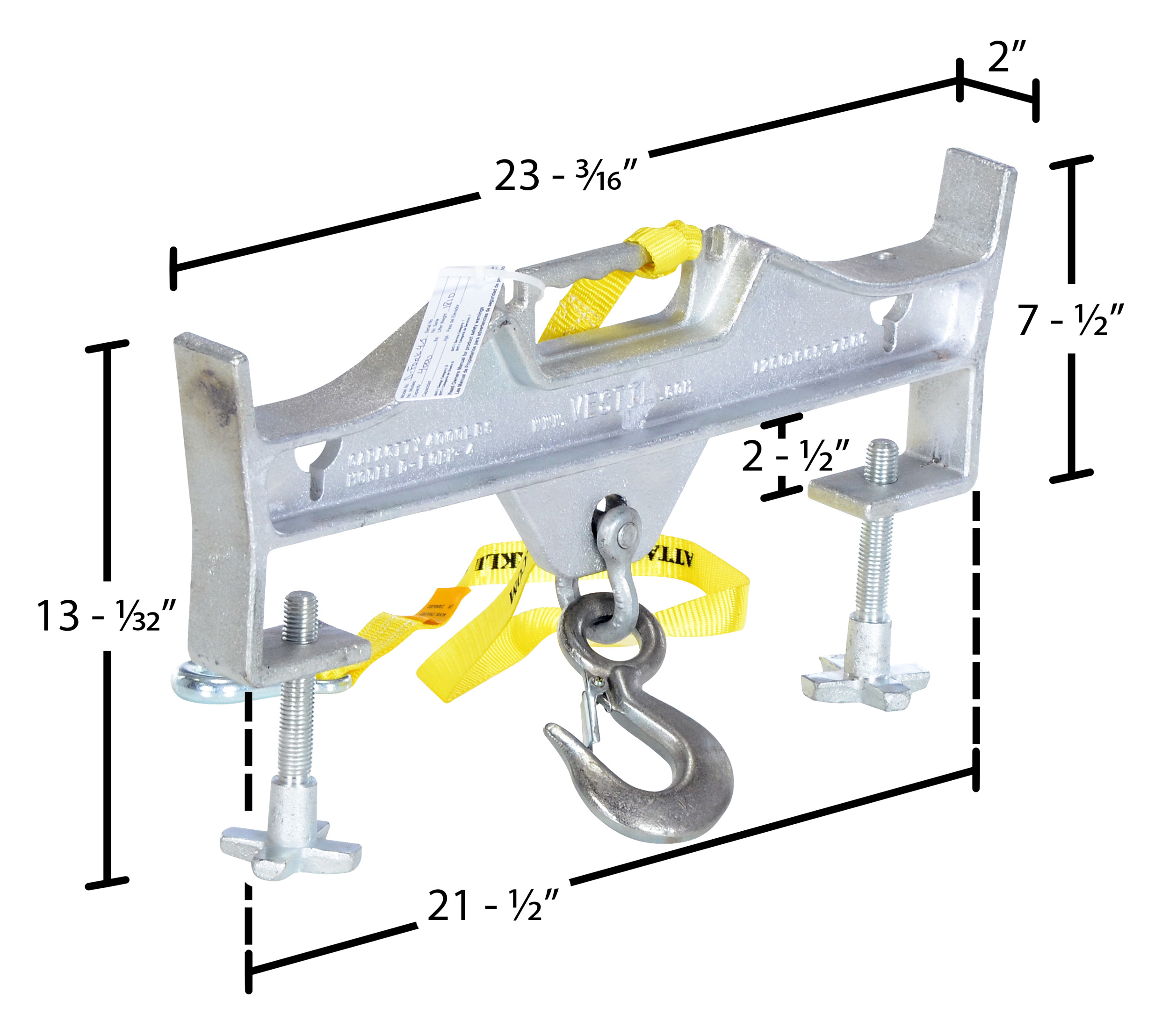

Total Ship Wt.(lbs.): 31 (only 1 package) Size: 23.1875"W x 2"L x 13.03125"H Color: Silver QuickShip

Uniform Capacity (lb.): 4,000 Safety Restraint Length (in.): 48 Usable Fork Pocket Width (in.): 7-1/4
Usable Fork Pocket Height (in.): 2-1/2 Maximum Fork Width (in.): 20-9/16 Hook Type: Double Rigid
Use with Fork Width (in.): 4-6 Inner Hook Diameter (in.): 1 Fork Pocket on Center (in.): 14-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: D-FORK-4-RL
D-FORK-4-RL

Steel Double Rigid Hoist Optioning Hook 2 In x 23-3/16 In x 13-1/32 In 4000 Lb. Capacity Silver

Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach hoisting hook does not require the assistance of special tools. Secured to the fork truck by means of a long safety restraint and screw clamps. Zinc plated hook with shackle included.

  • Heavy-duty solid steel construction provides long lasting rugged use
  • Double-fork style securely slides onto both fork truck forks
  • Safety chain with snap hook attaches unit to carriage of fork truck
  • Forged steel hook with safety latch ensures worker safety
Dimensions: 23.1875"W x 2"L x 13.03125"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215127783 GTIN: 00691215127783
Warranty: -- Shipping Weight: 31 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Safety Restraint Length (in.): 48 Usable Fork Pocket Width (in.): 7-1/4
Usable Fork Pocket Height (in.): 2-1/2 Maximum Fork Width (in.): 20-9/16 Hook Type: Double Rigid
Use with Fork Width (in.): 4-6 Inner Hook Diameter (in.): 1 Fork Pocket on Center (in.): 14-1/2
