Model Details

DCR-880-M

Printer Friendly
DCR-880-M

Steel Economical Ratchet Drum Transporter 55 Gallon 800 Lb. Capacity Yellow

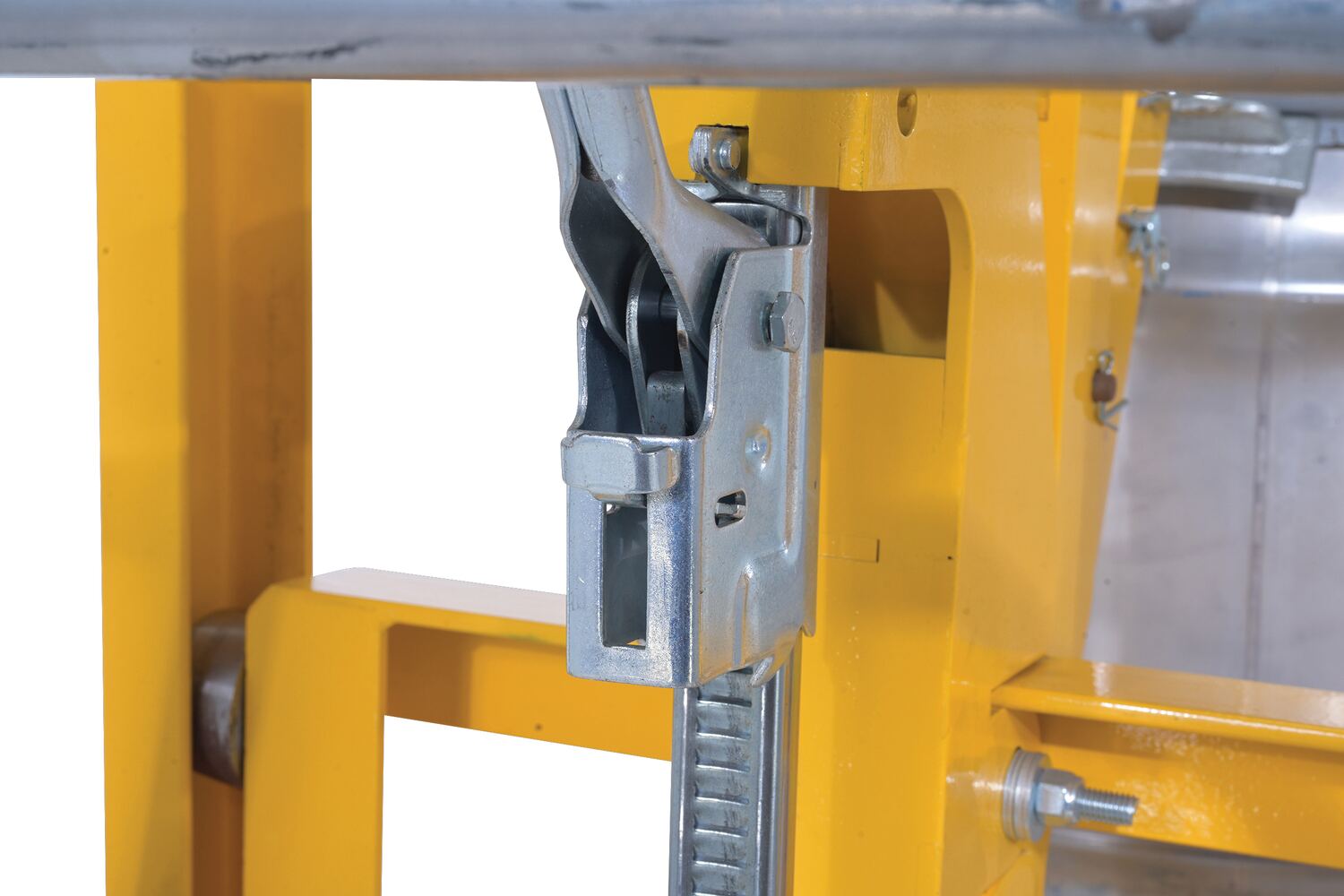

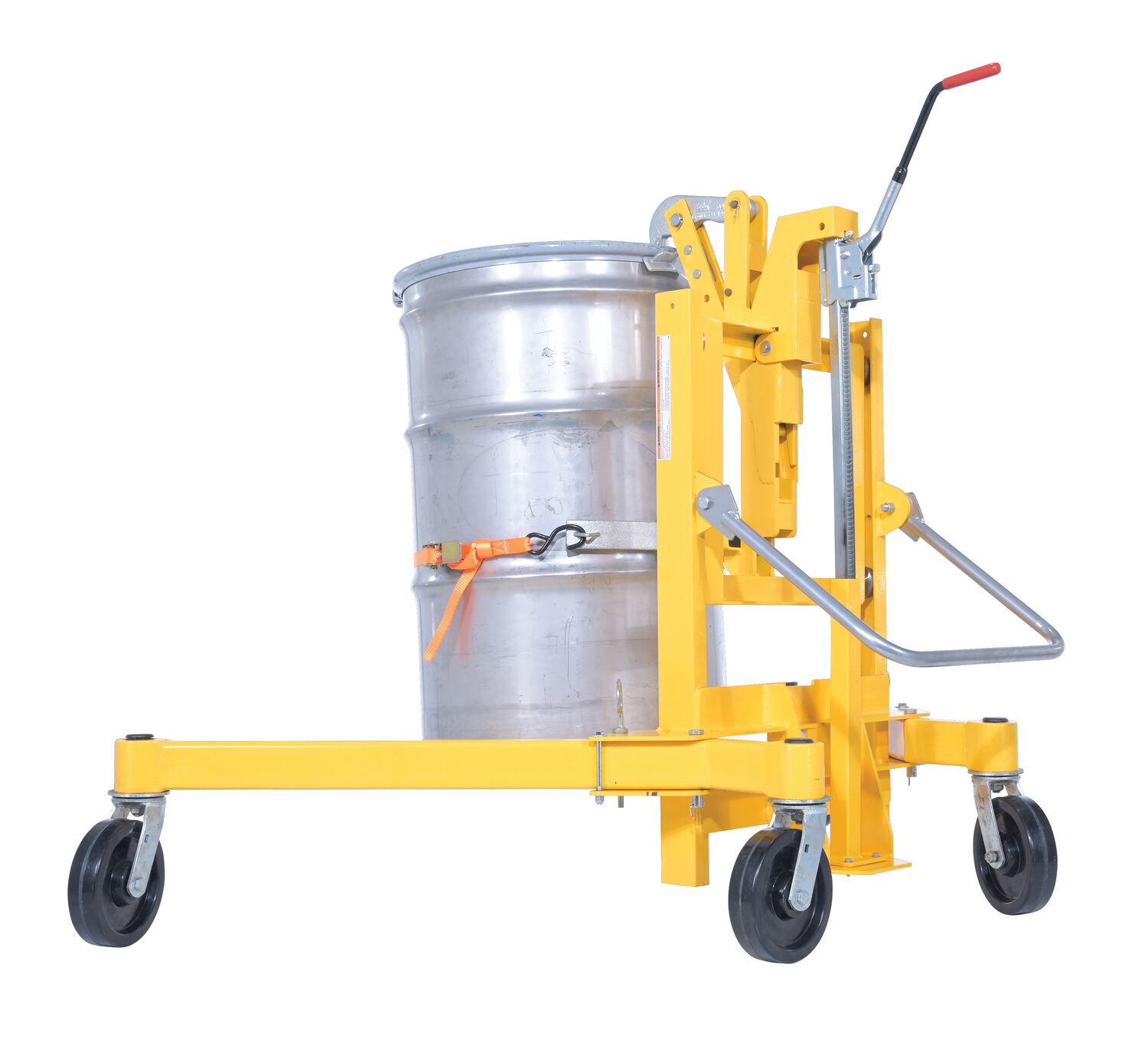

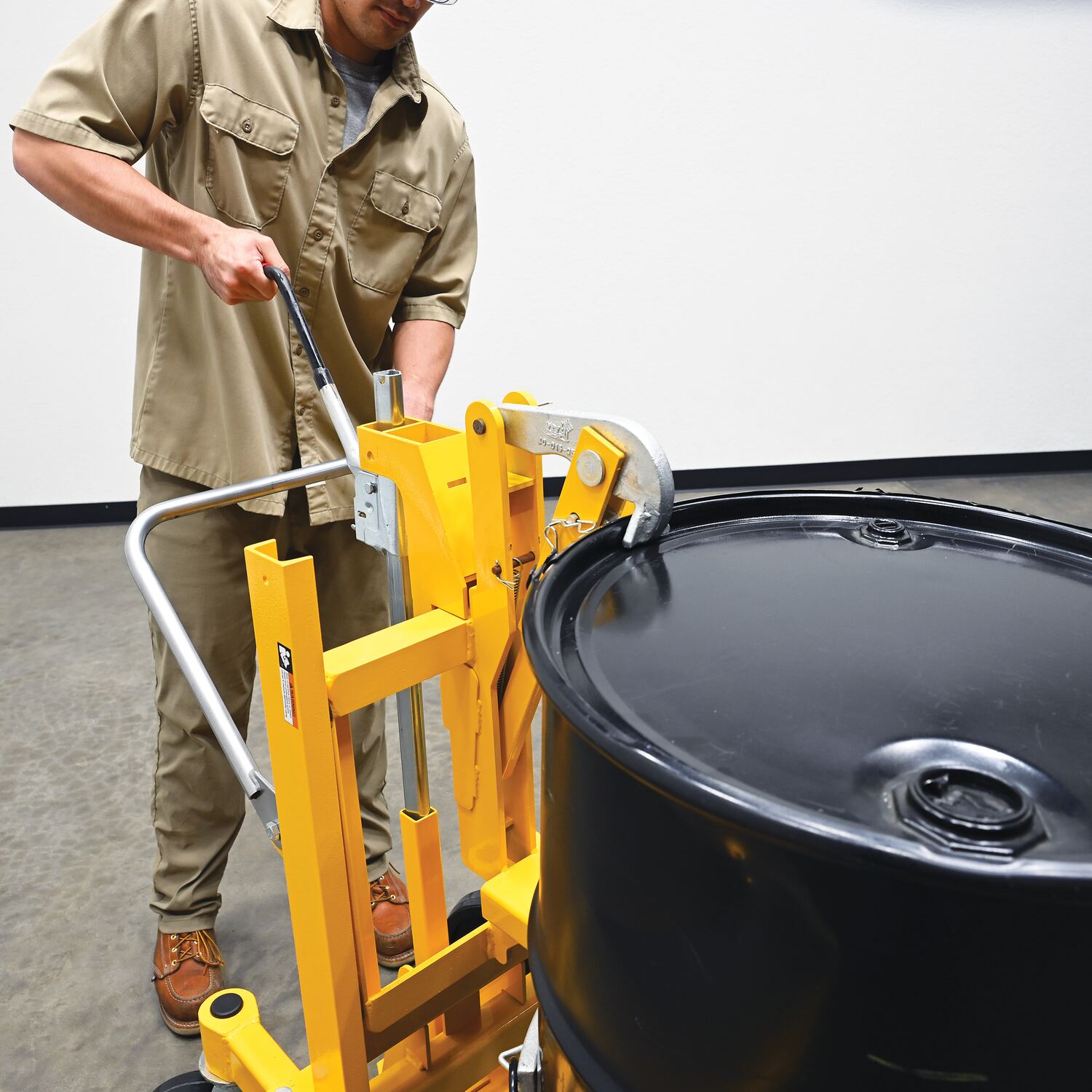

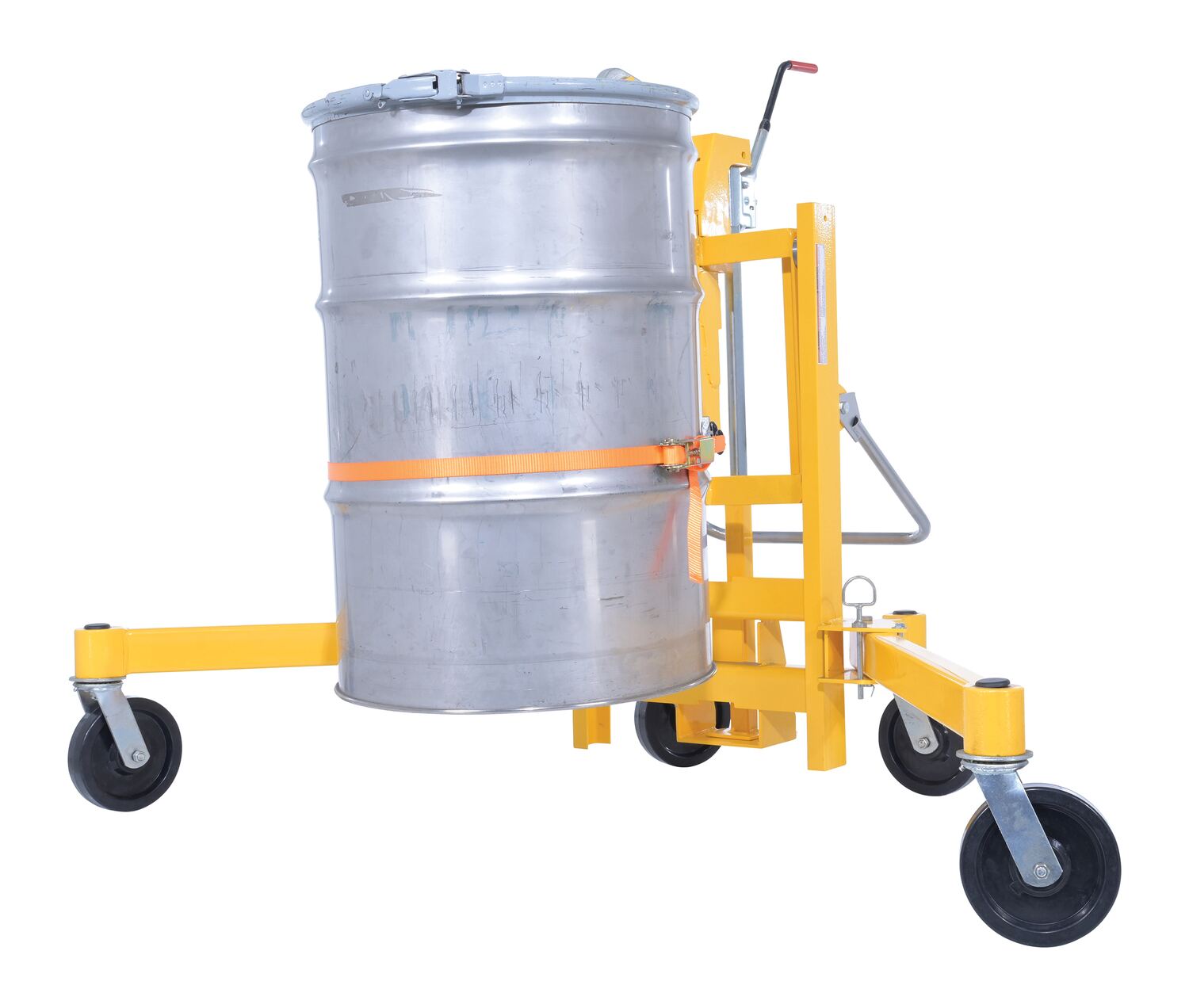

Unique portable economical drum transporter is designed to lift and transport drums with a top lip. Steel jaw securely grips the top lip of the drum. Hand ratchet lift mechanism. Straddle legs rotate for access to drums on pallets. The push handle folds down for easy access to the ratchet.

  • Unique portable design transports drums with a top lip

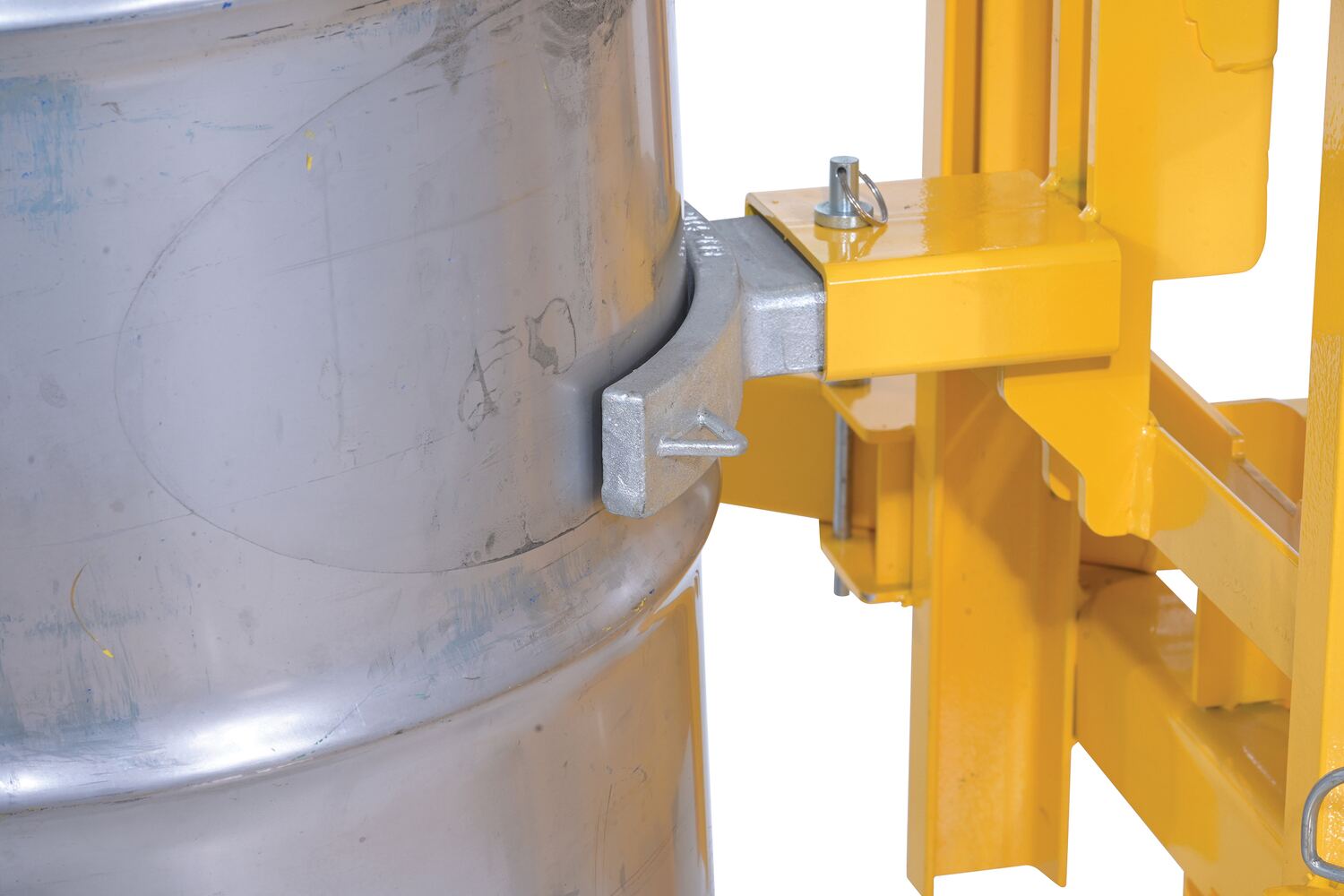

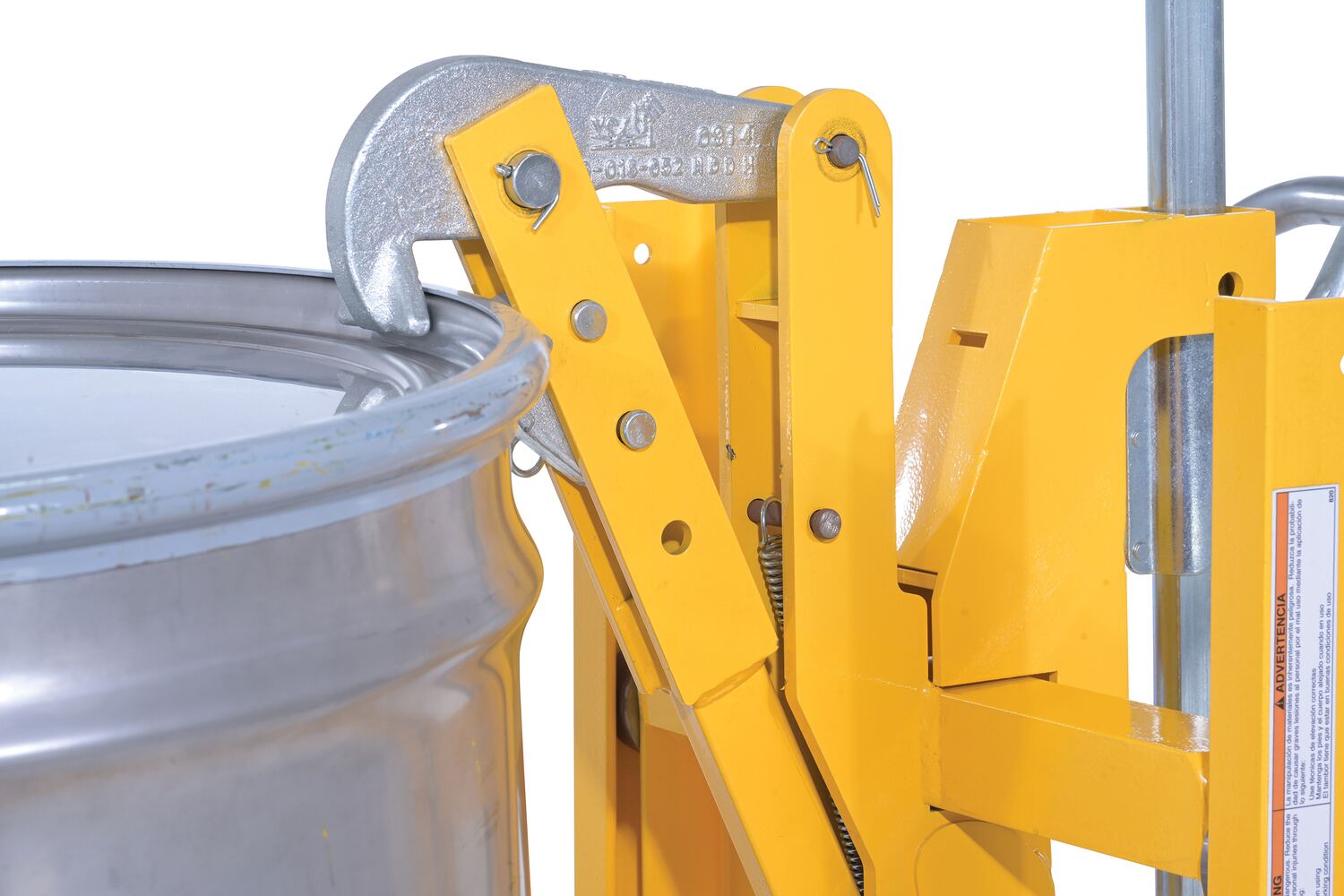

  • Steel jaw securely grips the top lip of the drum
  • Straddle legs rotate for access to drums on pallets

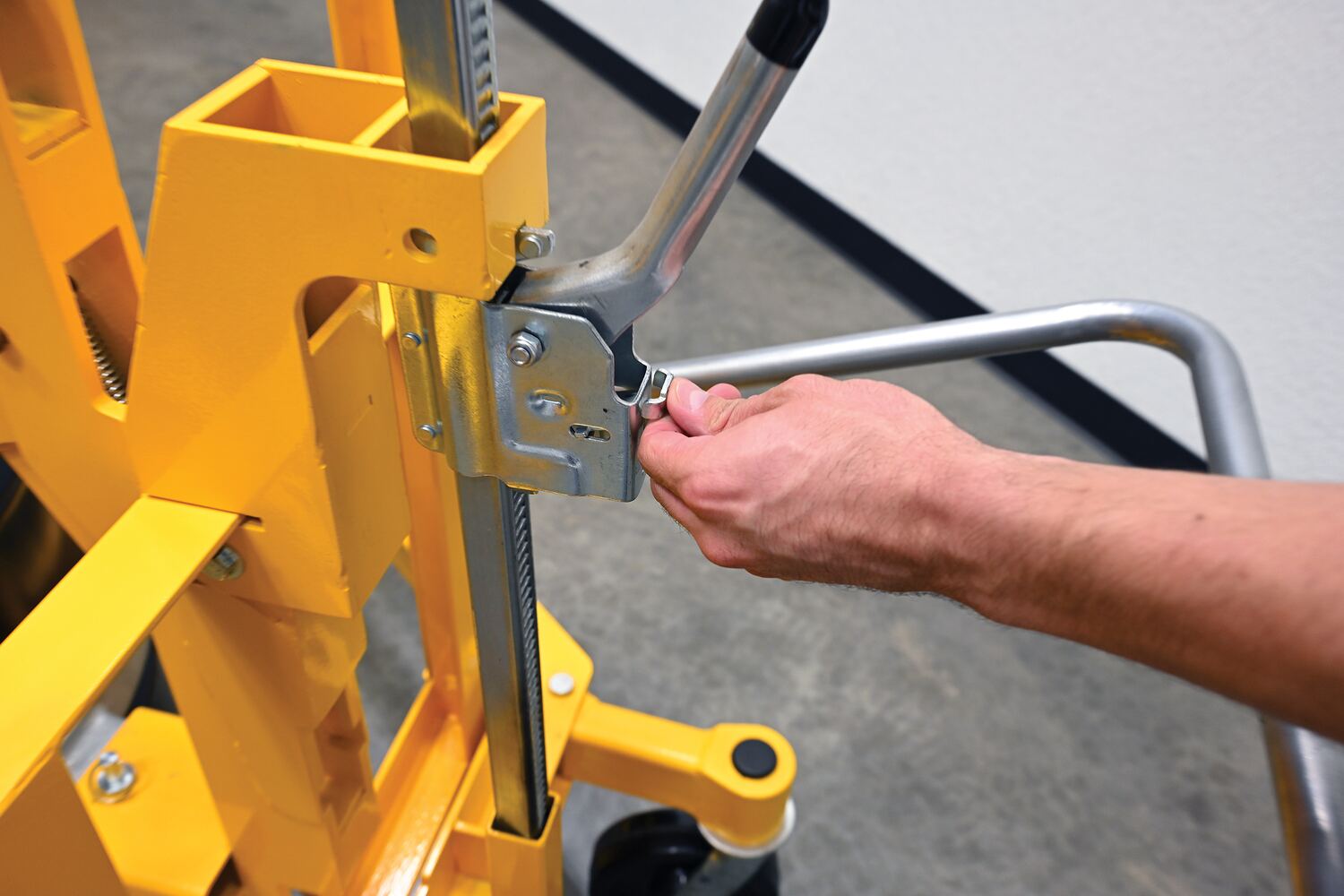

  • Push handle folds down for easy access to ratchet
Total Ship Wt.(lbs.): 275 (only 1 package) Size: 68.9375"W x 49.9375"L x 45.5"H Color: Yellow QuickShip

Uniform Capacity (lb.): 880 Caster Quantity/Diameter/Width (in.): (4) 8x2 Caster Material: Phenolic
Caster Type: Swivel Operation: Hand Ratchet Accepts: Steel, Plastic and Fiber Drums with top lip
Jaw Service Range (in. to in.): 31 to 47 Cradle Depth (in.): 3 Cradle Width (in.): 16-1/2
Cradle Height (in.): 2 Compatible Drum Size (gallon): 55 Maximum Lift (in.): 6 to 12
Number of Cranks to Raise: 56

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DCR-880-M
DCR-880-M

Steel Economical Ratchet Drum Transporter 55 Gallon 800 Lb. Capacity Yellow

Unique portable economical drum transporter is designed to lift and transport drums with a top lip. Steel jaw securely grips the top lip of the drum. Hand ratchet lift mechanism. Straddle legs rotate for access to drums on pallets. The push handle folds down for easy access to the ratchet.

  • Unique portable design transports drums with a top lip
  • Steel jaw securely grips the top lip of the drum
  • Straddle legs rotate for access to drums on pallets
  • Push handle folds down for easy access to ratchet
Dimensions: 68.9375"W x 49.9375"L x 45.5"H Sell UOM: EA-Each Color: Yellow
Material: Welded Steel UPC: 691215012829 GTIN: 00691215012829
Warranty: -- Shipping Weight: 275 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 880 Caster Quantity/Diameter/Width (in.): (4) 8x2 Caster Material: Phenolic
Caster Type: Swivel Operation: Hand Ratchet Accepts: Steel, Plastic and Fiber Drums with top lip
Jaw Service Range (in. to in.): 31 to 47 Cradle Depth (in.): 3 Cradle Width (in.): 16-1/2
Cradle Height (in.): 2 Compatible Drum Size (gallon): 55 Maximum Lift (in.): 6 to 12
Number of Cranks to Raise: 56
