Model Details

DIE-2430-DC-C

Printer Friendly
DIE-2430-DC-C

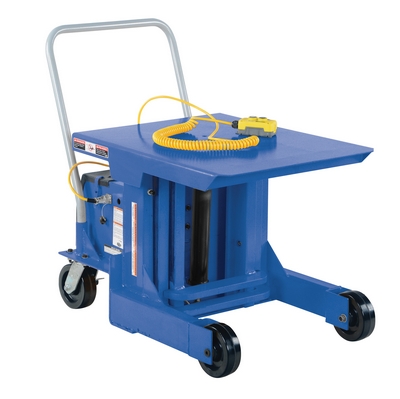

Steel DC Ergonomic Manual Die Table 24 In. x 30 In. Chrome Platform 2000 Lb. Capacity Blue

Designed to reduce back injuries and cumulative trauma disorders. Lifts heavy equipment to ergonomic working height. All welded steel construction will provide years of service and hard work. Small frame size allows unit to access hard-to-reach locations. Two (2) rigid and two (2) swivel with side brake casters standard.

  • Elevated handle enables maintained posture
  • Strong construction allows for heavy loads
  • DC powered for continuous use
  • Compact design for tight areas
Total Ship Wt.(lbs.): 416 (only 1 package) Size: 23.625"W x 44"L x 36.25"H Color: Blue QuickShip

Uniform Capacity (lb.): 2,000 Platform Width (in.): 24 Platform Length (in.): 30
Lowered Height (in.): 24 Raised Height (in.): 51 Power: DC
Battery Quantity/Volts: (1) 12V Electric Motor H.P.: 1.5 Platform Material: Steel Painted Blue
Charger Power: 12V / 5 AMP Raised Time Unloaded/Loaded (sec.): 8 /13 Lowered Time Unloaded/Loaded (sec.): 26 / 17

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DIE-2430-DC-C
DIE-2430-DC-C

Steel DC Ergonomic Manual Die Table 24 In. x 30 In. Chrome Platform 2000 Lb. Capacity Blue

Designed to reduce back injuries and cumulative trauma disorders. Lifts heavy equipment to ergonomic working height. All welded steel construction will provide years of service and hard work. Small frame size allows unit to access hard-to-reach locations. Two (2) rigid and two (2) swivel with side brake casters standard.

  • Elevated handle enables maintained posture
  • Strong construction allows for heavy loads
  • DC powered for continuous use
  • Compact design for tight areas
Dimensions: 23.625"W x 44"L x 36.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215111980 GTIN: 00691215111980
Warranty: -- Shipping Weight: 416 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Platform Width (in.): 24 Platform Length (in.): 30
Lowered Height (in.): 24 Raised Height (in.): 51 Power: DC
Battery Quantity/Volts: (1) 12V Electric Motor H.P.: 1.5 Platform Material: Steel Painted Blue
Charger Power: 12V / 5 AMP Raised Time Unloaded/Loaded (sec.): 8 /13 Lowered Time Unloaded/Loaded (sec.): 26 / 17
