Model Details

DRUM-LRT-II

Printer Friendly
DRUM-LRT-II

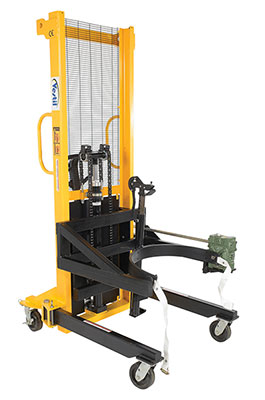

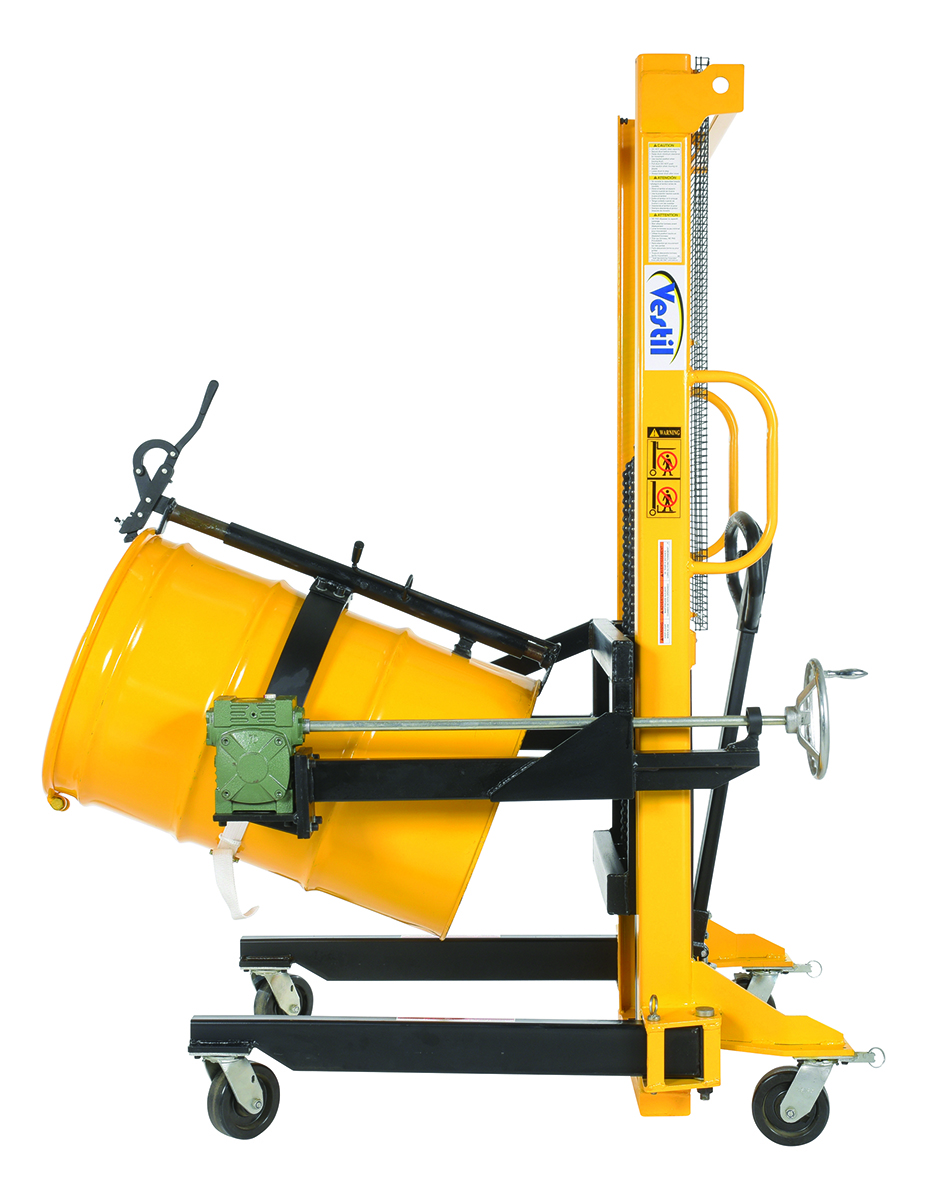

Steel Manual Drum Lifter/Rotator/Transport 51-1/2 In. x 34 In. x 82-5/8 In. 550 Lb. Capacity Yellow/Black

The manual operation, portable Drum Lifter/rotator/transporter features pivoting straddle legs for access to drums on pallets. Legs will manually pivot and lock into place with locking pin.

  • Unique design works with 55 gallon drums
  • Caster style rolls smoothly when loaded
  • Solid steel construction offers long lasting rugged use
  • For use with steel and fiber drums
Total Ship Wt.(lbs.): 574 (only 1 package) Size: 34"W x 51.5"L x 82.625"H Color: Yellow / Black QuickShip

Uniform Capacity (lb.): 550 Vertical Raised Height (in.): 62 Horizontal (Dump) Raised Height (in.): 67
Drum Size: 55-gallon Drum Diameter (in.): 24 Drum Type: Steel, Fiber
Rotation (degrees): 360 Leg Type: Pivoting Straddle Operates: Manual
Mast: Single Overall Mast Height (in.): 82-5/8 Steering Wheel Diameter (in.): 7
Steering Wheel Width (in.): 2 Steering Wheel Diameter (in.): 7 Front Wheel Width (in.): 1-1/4
Front Wheel Diameter (in.): 5-9/10 Caster Material: Nylon Pumps to Raise to Maximum Height: 71
Turns to rotate to 360 degrees: 42 Down Time (seconds): 24.28

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DRUM-LRT-II
DRUM-LRT-II

Steel Manual Drum Lifter/Rotator/Transport 51-1/2 In. x 34 In. x 82-5/8 In. 550 Lb. Capacity Yellow/Black

The manual operation, portable Drum Lifter/rotator/transporter features pivoting straddle legs for access to drums on pallets. Legs will manually pivot and lock into place with locking pin.

  • Unique design works with 55 gallon drums
  • Caster style rolls smoothly when loaded
  • Solid steel construction offers long lasting rugged use
  • For use with steel and fiber drums
Dimensions: 34"W x 51.5"L x 82.625"H Sell UOM: EA-Each Color: Yellow / Black
Material: Steel UPC: 691215076609 GTIN: 00691215076609
Warranty: -- Shipping Weight: 574 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 550 Vertical Raised Height (in.): 62 Horizontal (Dump) Raised Height (in.): 67
Drum Size: 55-gallon Drum Diameter (in.): 24 Drum Type: Steel, Fiber
Rotation (degrees): 360 Leg Type: Pivoting Straddle Operates: Manual
Mast: Single Overall Mast Height (in.): 82-5/8 Steering Wheel Diameter (in.): 7
Steering Wheel Width (in.): 2 Steering Wheel Diameter (in.): 7 Front Wheel Width (in.): 1-1/4
Front Wheel Diameter (in.): 5-9/10 Caster Material: Nylon Pumps to Raise to Maximum Height: 71
Turns to rotate to 360 degrees: 42 Down Time (seconds): 24.28
