Model Details

EDP

EDP

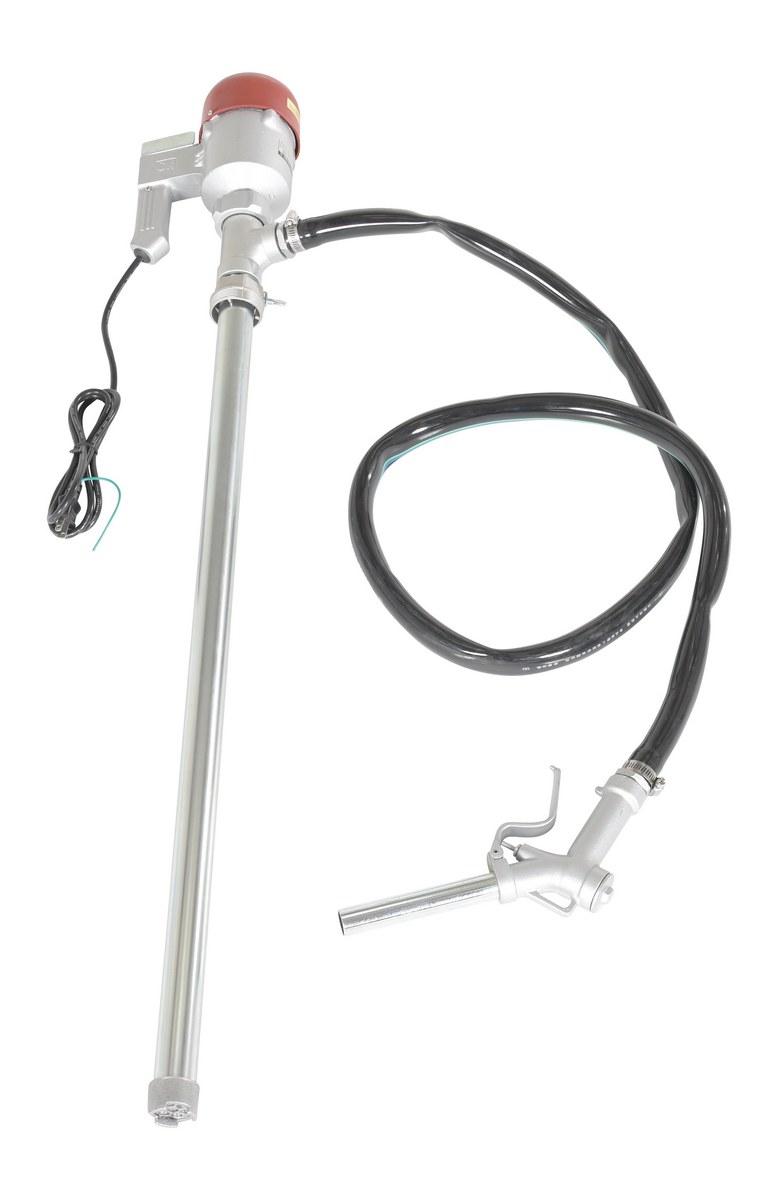

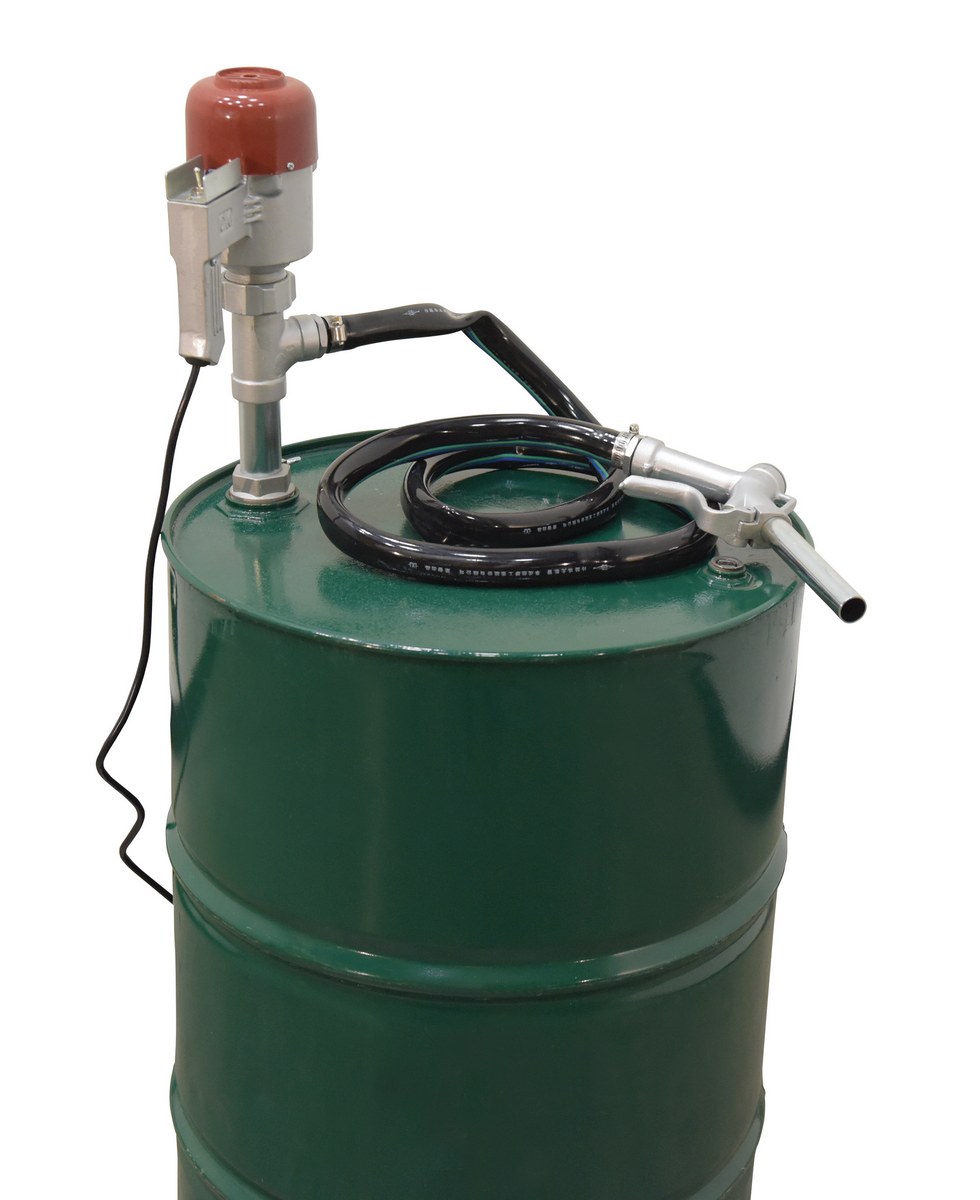

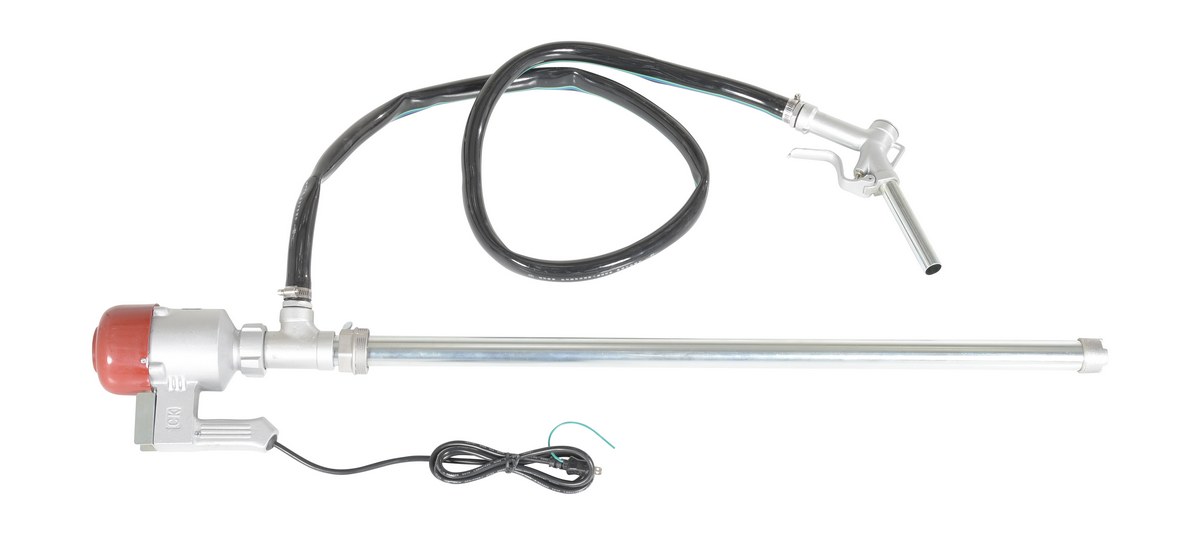

Plastic Electric Drum Pump 115 Volt 7-1/2 In. x 4-1/4 In. x 8 In. Silver

This electric drum pump will reduce the time required to dispense or transfer liquids. It allows you to move fluid easily and efficiently with a continuous run rating.

  • Electric drum pump moves fluid easily and efficiently with a continuous run rating
  • Ideal for drum handling situations for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Total Ship Wt.(lbs.): 20 (only 1 package) Size: 4.25"W x 7.5"L x 8"H Color: Silver QuickShip

Bung Size (in.): 2 Maximum Viscosity (CPS): 400 Horsepower: 1/4
Stainless Steel Pipe Construction (acid and base chemicals): 3/16 Stainless Steel Drive Shaft Construction: 3/16 Delivery Volume (GPM): 22.75
Oil-Proof Hose Length (meter): 2 Drum Size Unit Works With (gal.): 15 - 55 NPT Bung Fittings: 2 (in.) & 1-1/2 (in.)
Motor Type (volts/phase): 115/1 Pump Speed (rpm): 10000 Pump Mounting Type: Hook over the edge
Features: Gun & Hose, Self-Priming, and Shaft

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: EDP


EDP

Plastic Electric Drum Pump 115 Volt 7-1/2 In. x 4-1/4 In. x 8 In. Silver

This electric drum pump will reduce the time required to dispense or transfer liquids. It allows you to move fluid easily and efficiently with a continuous run rating.

  • Electric drum pump moves fluid easily and efficiently with a continuous run rating
  • Ideal for drum handling situations for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Dimensions: 4.25"W x 7.5"L x 8"H Sell UOM: EA-Each Color: Silver
Material: Plastic/Stainless Steel UPC: 691215016711 GTIN: 00691215016711
Warranty: -- Shipping Weight: 20 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: Taiwan
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Bung Size (in.): 2 Maximum Viscosity (CPS): 400 Horsepower: 1/4
Stainless Steel Pipe Construction (acid and base chemicals): 3/16 Stainless Steel Drive Shaft Construction: 3/16 Delivery Volume (GPM): 22.75
Oil-Proof Hose Length (meter): 2 Drum Size Unit Works With (gal.): 15 - 55 NPT Bung Fittings: 2 (in.) & 1-1/2 (in.)
Motor Type (volts/phase): 115/1 Pump Speed (rpm): 10000 Pump Mounting Type: Hook over the edge
Features: Gun & Hose, Self-Priming, and Shaft
