Model Details

EHLT-2448-1-43-PSS

- Temporarily Unavailable - Please Contact Sales

EHLT-2448-1-43-PSS

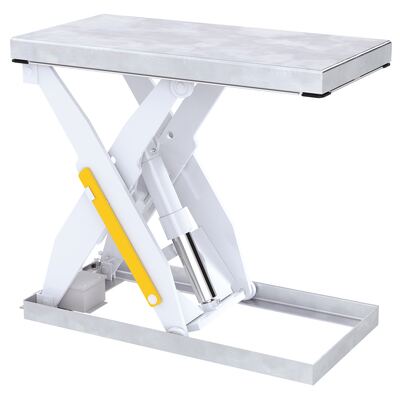

Partially Stainless Steel Electric Hydraulic Lift Table 24 In. x 48 In. 1000 Lb. Capacity Silver

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points during lowering of the table, a safety velocity fuse to maintain platform height in event of hose or fitting failure, a 24V AC push-button hand control, a maintenance prop, and an upper travel limit switch to stop the table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor is standard with additional voltage options are available. The table has a 3000 psi hydraulic component rating.

  • Partially stainless steel construction for durability
  • Large platform to handle large awkward sized material
  • AC powered for constant power supply functionality
  • Remote control capability to create distance between personnel and table
Total Ship Wt.(lbs.): 652 (only 1 package) Size: 24.375"W x 51"L x 7"H Color: Silver (Frame, Deck), White (Leg Set) Non-Returnable

Uniform Capacity (lb.): 1,000 Travel Time (sec.): 7 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC
Raised Height (in.): 43 Lowered Height (in.): 7 Platform Width/Length (in.): 24-3/8 x 48-3/8
Overall Length (in.): 51 Frame and Deck Material: Stainless Steel Scissor Legset Material: Carbon Steel with Powder Coat White Finish
Greasable Pins and Rollers Material: Stainless Steel Stainless Steel Finish: Mill Finish

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLT-2448-1-43-PSS


EHLT-2448-1-43-PSS

Partially Stainless Steel Electric Hydraulic Lift Table 24 In. x 48 In. 1000 Lb. Capacity Silver

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points during lowering of the table, a safety velocity fuse to maintain platform height in event of hose or fitting failure, a 24V AC push-button hand control, a maintenance prop, and an upper travel limit switch to stop the table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor is standard with additional voltage options are available. The table has a 3000 psi hydraulic component rating.

  • Partially stainless steel construction for durability
  • Large platform to handle large awkward sized material
  • AC powered for constant power supply functionality
  • Remote control capability to create distance between personnel and table
Dimensions: 24.375"W x 51"L x 7"H Sell UOM: EA-Each Color: Silver (Frame, Deck), White (Leg Set)
Material: 304 Stainless Steel (Frame, Deck), Carbon Steel (Leg Set) UPC: 691215319720 GTIN: 00691215319720
Warranty: -- Shipping Weight: 652 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 1,000 Travel Time (sec.): 7 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC
Raised Height (in.): 43 Lowered Height (in.): 7 Platform Width/Length (in.): 24-3/8 x 48-3/8
Overall Length (in.): 51 Frame and Deck Material: Stainless Steel Scissor Legset Material: Carbon Steel with Powder Coat White Finish
Greasable Pins and Rollers Material: Stainless Steel Stainless Steel Finish: Mill Finish
