EHTT

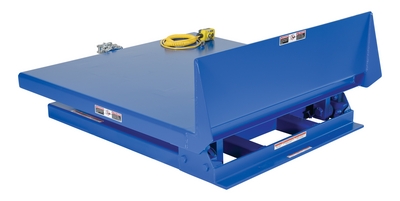

Steel Hinge Tilt Table 48 In. x 47.25 In. 4000 Lb. Capacity Blue

The hinge tilt table offers the rugged durability of the standard efficiency master line of tilters, plus they offer an extra platform height. The lip design allows for loading and unloading on three sides. This tilt table has a two-button handheld pendent control with additional voltage options available. The pressure plated pump is coupled to an application specific manifold that features counterbalanced valves and modulated flow control for maximum efficiency.

  • Offers rugged durability of the standard master line plus extra platform height
  • Features counterbalanced valves and modulated flow control for maximum efficiency
  • Maximum stability while occupying minimum space
  • No side gussets
Total Ship Wt.(lbs.): 935 (only 1 package) Size: 48"W x 56"L x 22"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Platform Width (in.): 48 Platform Length (in.): 47-3/4
Level Height (in.): 10 Maximum Tilt Degree: 45 Lip Height (in.): 12
Motor Horsepower: 2 Voltage/Phase: 460/3 AC

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHTT
EHTT

Steel Hinge Tilt Table 48 In. x 47.25 In. 4000 Lb. Capacity Blue

The hinge tilt table offers the rugged durability of the standard efficiency master line of tilters, plus they offer an extra platform height. The lip design allows for loading and unloading on three sides. This tilt table has a two-button handheld pendent control with additional voltage options available. The pressure plated pump is coupled to an application specific manifold that features counterbalanced valves and modulated flow control for maximum efficiency.

  • Offers rugged durability of the standard master line plus extra platform height
  • Features counterbalanced valves and modulated flow control for maximum efficiency
  • Maximum stability while occupying minimum space
  • No side gussets
Dimensions: 48"W x 56"L x 22"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215018173 GTIN: 00691215018173
Warranty: -- Shipping Weight: 935 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 4000 Platform Width (in.): 48 Platform Length (in.): 47-3/4
Level Height (in.): 10 Maximum Tilt Degree: 45 Lip Height (in.): 12
Motor Horsepower: 2 Voltage/Phase: 460/3 AC
