Model Details

EHU-2

EHU-2

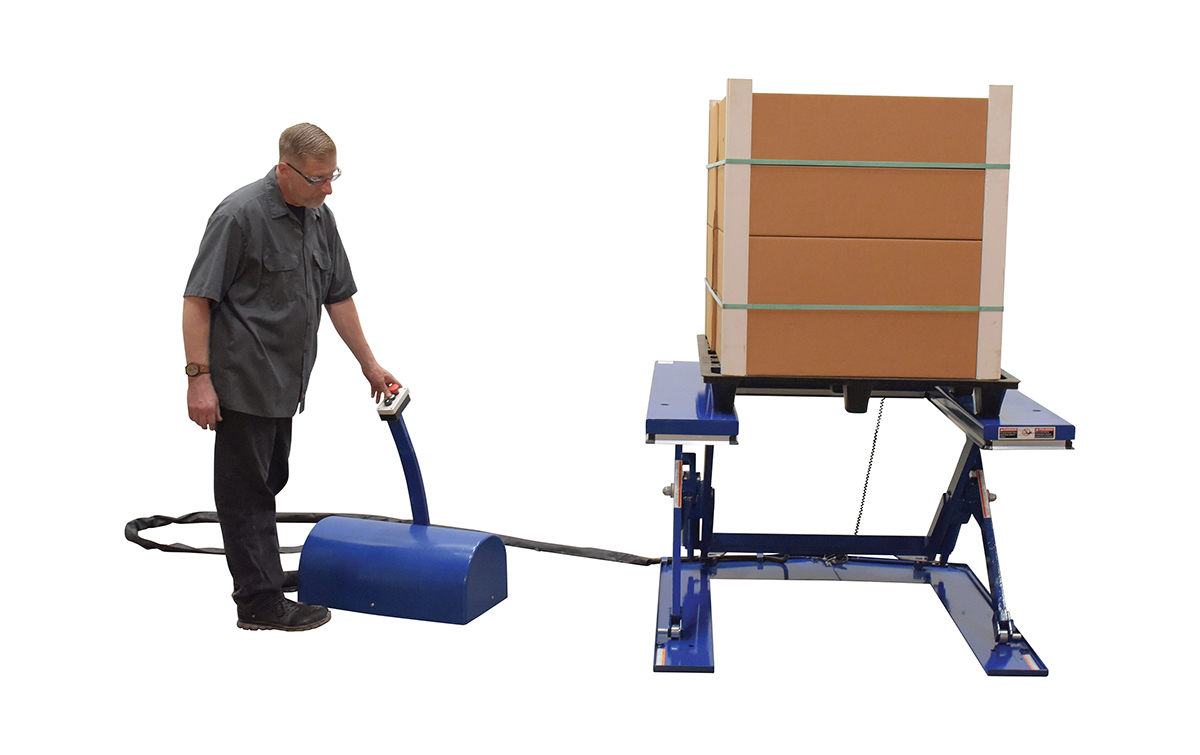

Steel U Type Electric Lift Table 2000 Lb. Capacity Blue

The low profile electric lift tables with the unique, steel constructed, "U" design provides an open center that enables a pallet truck to place a load on the platform. This lift table features an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. The remote power pack comes complete with a cover to protect the motor from dust and debris. The up and down push button raises and lowers the unit and is located on the control box. Safety features include toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. The power supply has pedestal mounted push buttons. When using a pallet truck in conjunction with model, only open bottom pallets are to be used.

  • Low profile "U" type electric lift table has an open center that enables a pallet truck to place a load on the platform
  • Equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed
  • Up and down push button raises and lowers the unit
  • Features toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop buttons for safety
Total Ship Wt.(lbs.): 592 (only 1 package) Size: 52.5"W x 55.75"L x 3.5"H Color: Blue QuickShip

Uniform Capacity (lb.): 2000 Raised Height (in.): 33-1/2 Voltage/Phase: 115/Single
Control Box Voltage: 24 Deck Inside Width (in.): 29-3/4 Deck Inside Length (in.): 41-1/4
Remote Power Unit Width (in.): 14-3/4 Remote Power Unit Length (in.): 26-3/4 Remote Power Unit Height (in.): 9-1/2
Lift Speed (sec.): 16.8 Horse Power (HP): 1.5

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHU-2


EHU-2

Steel U Type Electric Lift Table 2000 Lb. Capacity Blue

The low profile electric lift tables with the unique, steel constructed, "U" design provides an open center that enables a pallet truck to place a load on the platform. This lift table features an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. The remote power pack comes complete with a cover to protect the motor from dust and debris. The up and down push button raises and lowers the unit and is located on the control box. Safety features include toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. The power supply has pedestal mounted push buttons. When using a pallet truck in conjunction with model, only open bottom pallets are to be used.

  • Low profile "U" type electric lift table has an open center that enables a pallet truck to place a load on the platform
  • Equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed
  • Up and down push button raises and lowers the unit
  • Features toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop buttons for safety
Dimensions: 52.5"W x 55.75"L x 3.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215060561 GTIN: 00691215060561
Warranty: -- Shipping Weight: 592 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Raised Height (in.): 33-1/2 Voltage/Phase: 115/Single
Control Box Voltage: 24 Deck Inside Width (in.): 29-3/4 Deck Inside Length (in.): 41-1/4
Remote Power Unit Width (in.): 14-3/4 Remote Power Unit Length (in.): 26-3/4 Remote Power Unit Height (in.): 9-1/2
Lift Speed (sec.): 16.8 Horse Power (HP): 1.5
