EPC-10

Steel Vertical Plate Clamp 1,000 Lb. Capacity Blue

The vertical plate clamp has a pivoting bale for easier and more versatile operation. Features include an automatic serrated hardened steel cams and pads and a drop-forged steel case for maximum strength. Warning: do not exceed the working load limit. Serious bodily injury or property damage may result. Lift only one clean and oil free plate at a time. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place

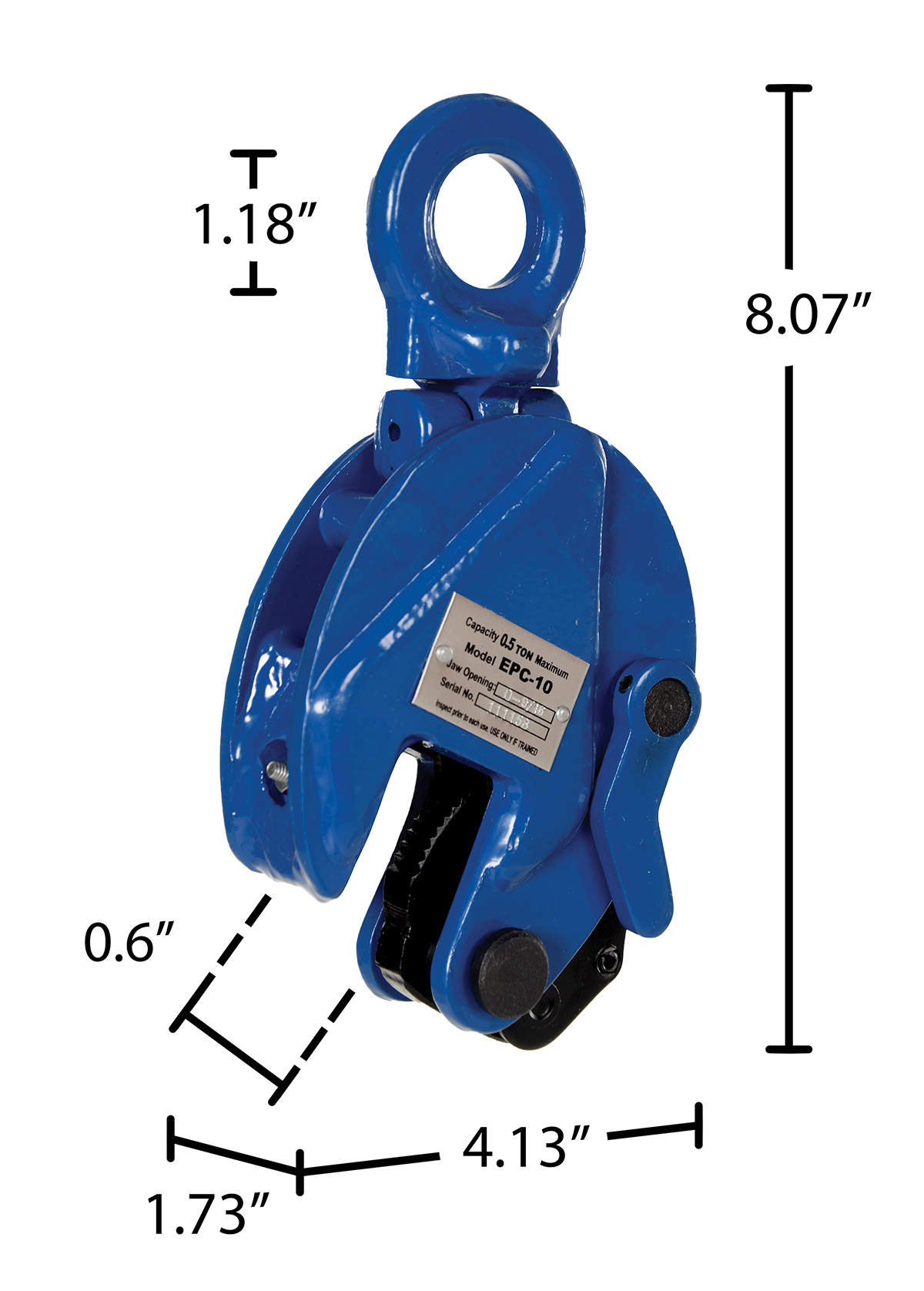

Total Ship Wt.(lbs.): 5 (only 1 package) Size: 1.73"W x 8.07"L x 4.13"H Color: Blue QuickShip

Min Uniform Plate Weight (lb.): 200 Uniform Working Load Limit (lb.): 1,000 Throat Depth (in.): 1.6
Bale Opening (in.): 1-13/16 Minimum Plate Thickness (in.): 0 Maximum Plate Thickness (in.): 19/32

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: EPC-10
EPC-10

Steel Vertical Plate Clamp 1,000 Lb. Capacity Blue

The vertical plate clamp has a pivoting bale for easier and more versatile operation. Features include an automatic serrated hardened steel cams and pads and a drop-forged steel case for maximum strength. Warning: do not exceed the working load limit. Serious bodily injury or property damage may result. Lift only one clean and oil free plate at a time. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place
Dimensions: 1.73"W x 8.07"L x 4.13"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215054515 GTIN: 00691215054515
Warranty: -- Shipping Weight: 5 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Min Uniform Plate Weight (lb.): 200 Uniform Working Load Limit (lb.): 1,000 Throat Depth (in.): 1.6
Bale Opening (in.): 1-13/16 Minimum Plate Thickness (in.): 0 Maximum Plate Thickness (in.): 19/32
