Model Details

EPC-40

Printer Friendly
EPC-40

Steel Vertical Plate Clamp 4,000 Lb. Capacity Blue

The vertical plate clamp has a pivoting bale for easier and more versatile operation. Features include an automatic serrated hardened steel cams and pads and a drop-forged steel case for maximum strength. Warning: do not exceed the working load limit. Serious bodily injury or property damage may result. Lift only one clean and oil free plate at a time. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place

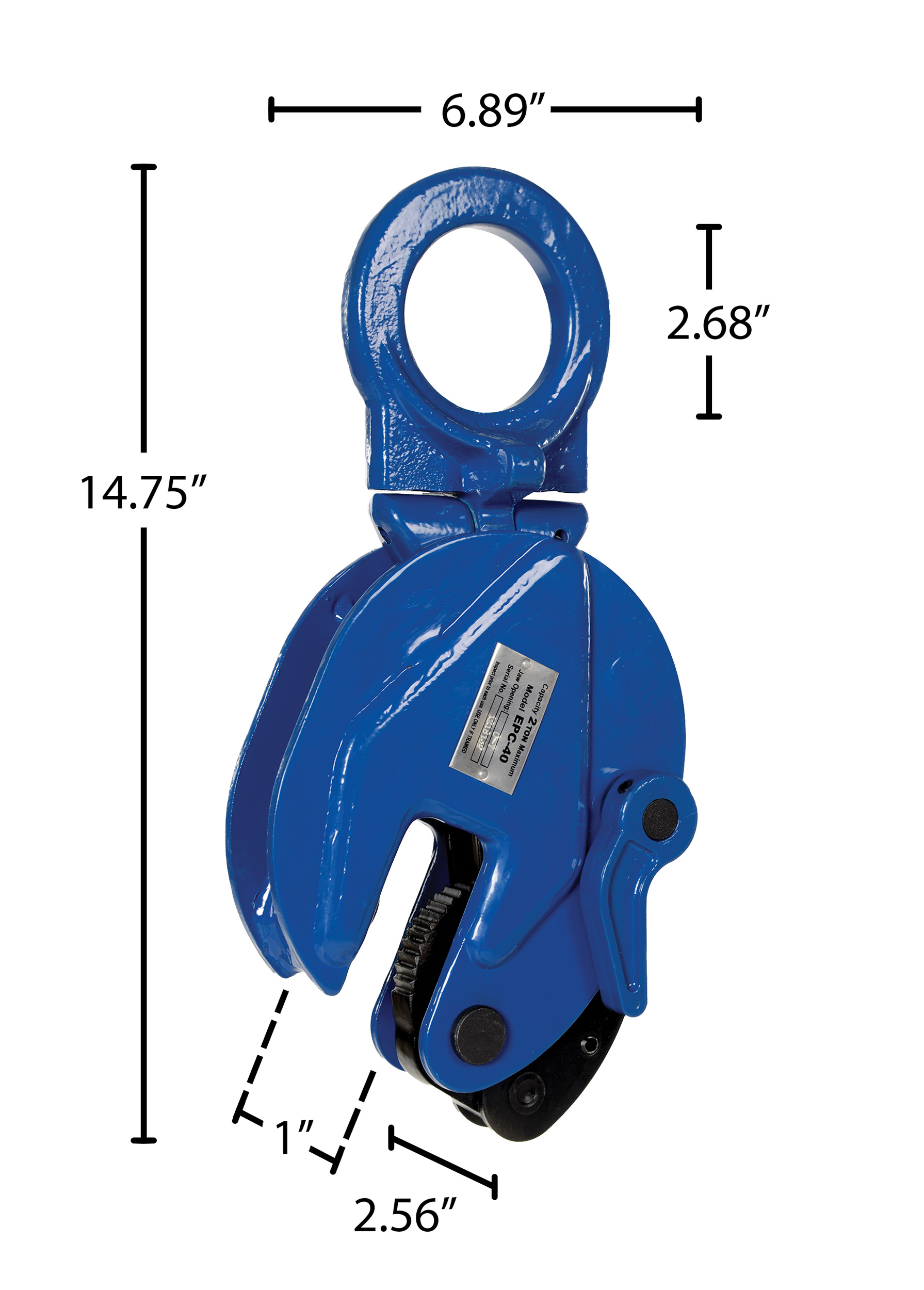

Total Ship Wt.(lbs.): 17 (only 1 package) Size: 2.56"W x 14.75"L x 6.89"H Color: Blue QuickShip

Min Uniform Plate Weight (lb.): 800 Uniform Working Load Limit (lb.): 4,000 Throat Depth (in.): 2.9
Bale Opening (in.): 2-3/8 Minimum Plate Thickness (in.): 0 Maximum Plate Thickness (in.): 1

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: EPC-40
EPC-40

Steel Vertical Plate Clamp 4,000 Lb. Capacity Blue

The vertical plate clamp has a pivoting bale for easier and more versatile operation. Features include an automatic serrated hardened steel cams and pads and a drop-forged steel case for maximum strength. Warning: do not exceed the working load limit. Serious bodily injury or property damage may result. Lift only one clean and oil free plate at a time. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place
Dimensions: 2.56"W x 14.75"L x 6.89"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215054539 GTIN: 00691215054539
Warranty: -- Shipping Weight: 17 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Min Uniform Plate Weight (lb.): 800 Uniform Working Load Limit (lb.): 4,000 Throat Depth (in.): 2.9
Bale Opening (in.): 2-3/8 Minimum Plate Thickness (in.): 0 Maximum Plate Thickness (in.): 1
